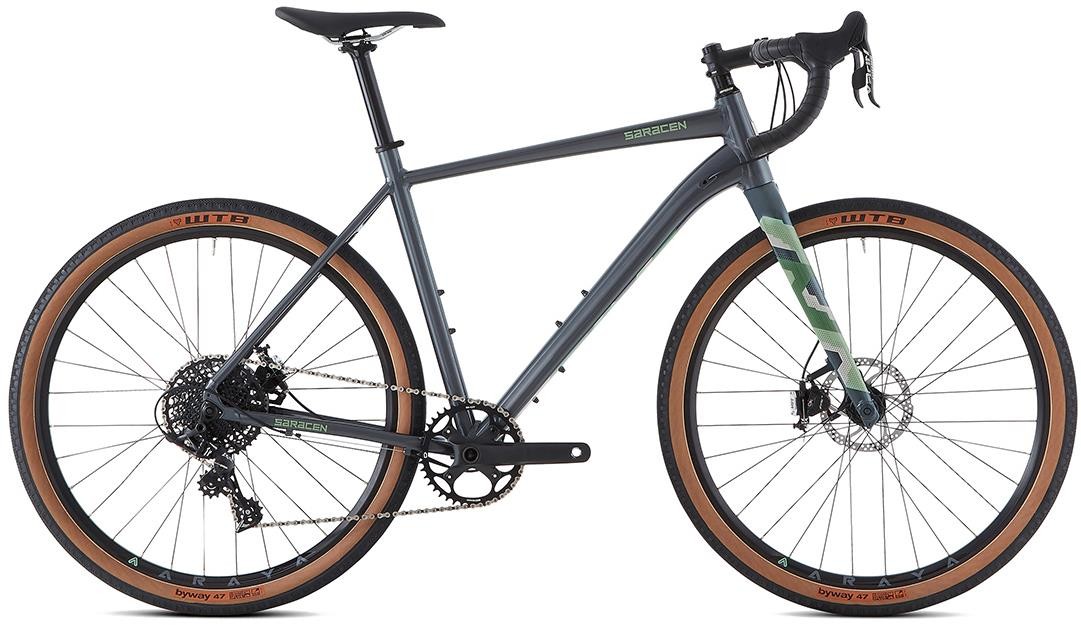

Saracen Levarg SL 2020 - Gravel Bike
A Dependable Bike With Great Spec And Features. A Gravel Bike With Mtb Influence...
We took our MTB DNA and moulded into a gravel bike... Using longer top tubes and shorter stems allows for a roomier cockpit, more centralised rider position on the bike and more direct steering input. 650b wheels come as standard but the frame can accommodate 700c wheels as well if you wish to change, with a recommended maximum tyre size of 50mm in 650b and 44mm in 700c respectfully. The Levarg SL comes with SRAM Apex 1x11 speed drivetrain and cable actuated hydraulic disc brakes in the shape of TRP HY/RD paired with 160mm rotors. WTB’s most dirt-focused tyre in the form of the ByWay (47C) allows riders to find comfort on remote gravel roads without feeling draggy on the paved roads!
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Series 2 custom butted and hydroformed 6061 alloy tubeset / IS42-IS52 tapered headtube / 12 x 142mm dropout for on- and off-road adventures |
| Fork | Full UD carbon fork / tapered steerer / mudguard eyelets / 12x100 / SMAX720 axle |
| Headset | FSA No.42/ACB |
| Stem | Saracen 6061 3D-forged alloy / 70-80mm / A-head / -7 degree rise / 31.8mm clamp |
| Bars | Saracen OS 6061 DB alloy drop-bar / 420-440mm wide / 77mm reach / 128mm drop / 15 degree flare |
| Front Brake | TRP Hy/Rd / cable actuated hydraulic / 160mm |
| Rear Brake | TRP Hy/Rd / cable actuated hydraulic / 160mm |
| Brake Lever | SRAM Apex |
| Rear Mech | Sram Apex 1 / 11 speed |
| Shifters | Sram Apex / 1x11 speed |
| Speed | 11 |
| Rims | Araya DW-650 / doublewall alloy / 32h / 650b |
| Front Hub | Formula RX812 32h front / Formula RX300 32h rear / Shimano SMAX720 axle rear |
| Rear Hub | Formula RX812 32h front / Formula RX300 32h rear / Shimano SMAX720 axle rear |
| Spokes | Stainless steel 14g |
| Front Tyre | WTB Byway / Dual DNA 650 x 47c |
| Rear Tyre | WTB Byway / Dual DNA 650 x 47c |
| Seat Post | 3D-forged Alloy micro-adjust / 30.9mm |
| Saddle | Saracen custom road |
| Chainset | Samox / Saracen custom single 42T narrow wide / 170-175mm |
| Bottom Bracket | Samox EB2401 sealed cartridge |
| Chain | KMC X-11 |
| Cassette | Sram PG-1130 / 11 speed / 11-42T |
| Pedals | Steel cage with resin body / toe clips and straps |
See the table below to find the right size.
Gravel Bike Bike Sizing
XXS (44)
4'8"
5'1"
XS (48)
5'1"
5'4"
S (51)
5'4"
5'7"
M (54)
5'7"
5'10"
L (56)
5'10"
6'0"
XL (58)
6'0"
6'3"
XXL (60)
6'3"
6'5"
XXXL (62)
6'5"
6'9"
Read our bike size guide for more information on sizing.
|
Height |
Size |
|||||||
|
4’8” / 143cm |
44 (XXS) |
|
|
|
|
|
|
|
|
4’9” / 145cm |
44 (XXS) |
|
|
|
|
|
|
|
|
4’10” / 148cm |
44 (XXS) |
|
|
|
|
|
|
|
|
4’11” / 150cm |
44 (XXS) |
|
|
|
|
|
|
|
|
5’0” / 152cm |
44 (XXS) |
|
|
|
|
|
|
|
|
5’1” / 155cm |
44 (XXS) |
48 (XS) |
|
|
|
|
|
|
|
5’2” / 158cm |
|
48 (XS) |
|
|
|
|
|
|
|
5’3” / 160cm |
|
48 (XS) |
|
|
|
|
|
|
|
5’4” / 163cm |
|
48 (XS) |
51 (S) |
|
|
|
|
|
|
5’5” / 165cm |
|
|
51 (S) |
|
|
|
|
|
|
5’6” / 168cm |
|
|
51 (S) |
|
|
|
|
|
|
5’7” / 170cm |
|
|
51 (S) |
54 (M) |
|
|
|
|
|
5’8” / 173cm |
|
|
|
54 (M) |
|
|
|
|
|
5’9” / 175cm |
|
|
|
54 (M) |
|
|
|
|
|
5’10” / 178cm |
|
|
|
54 (M) |
56 (L) |
|
|
|
|
5’11” / 180cm |
|
|
|
|
56 (L) |
|
|
|
|
6’0” / 183cm |
|
|
|
|
56 (L) |
58 (XL) |
|
|
|
6’1” / 185cm |
|
|
|
|
|
58 (XL) |
|
|
|
6’2” / 188cm |
|
|
|
|
|
58 (XL) |
|
|
|
6’3” / 191cm |
|
|
|
|
|
58 (XL) |
60 (XXL) |
|
|
6’4” / 193cm |
|
|
|
|
|
|
60 (XXL) |
|
|
6’5” / 196cm |
|
|
|
|
|
|
60 (XXL) |
62 (XXXL) |
|
6’6” / 198cm |
|
|
|
|
|
|
|
62 (XXXL) |
|
6’7” / 201cm |
|
|
|
|
|
|
|
62 (XXXL) |
|
6’8” / 203cm |
|
|
|
|
|
|
|
62 (XXXL) |
|
6’9” / 205cm |
|
|
|
|
|
|
|
62 (XXXL) |
Read our bike size guide for more information on sizing.
