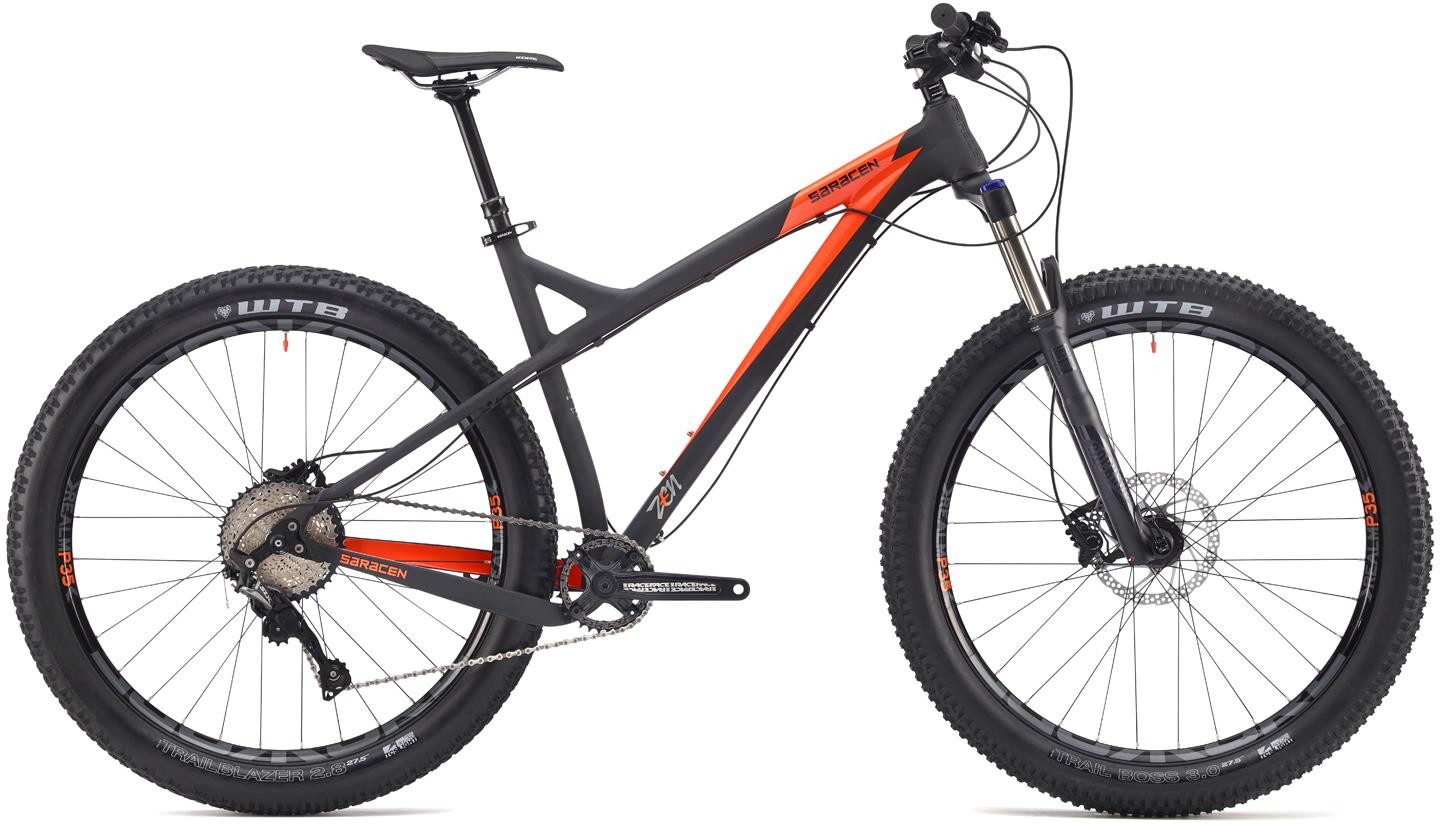

Saracen Zen 27.5"+ Mountain Bike 2018 - Hardtail MTB
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Series 2 custom butted and hydroformed 6061 alloy tubeset ZS44-ZS56 tapered headtube Chip-Slot dropout system dropper post ready UK developed |
| Fork | Rockshox Sektor Silver RL / 130mm travel / Solo Air / tapered alloy steerer / low speed compression to lock / rebound adjust / 15x110 / Maxle Stealth |
| Headset | FSA NO.57 |
| Stem | Saracen 6061 3D-forged alloy / 60mm / A-head / 7 degree rise / 31.8mm clamp |
| Bars | Kore Durox riser bar / 760mm wide / 20mm rise / 5 degree up bend / 8.5 degree back bend |
| Front Brake | Shimano M506/M447 180mm |
| Rear Brake | Shimano M506/M447 160mm |
| Brake Lever | Shimano M506 |
| Rear Mech | Shimano SLX M7000 Shadow Plus |
| Shifters | Shimano SLX M7000 Rapidfire Plus |
| Speed | 11 |
| Rims | Kore Realm 3.5+ 32h / UST tubeless compatible |
| Front Hub | Formula DC-711 Boost sealed bearing 32h |
| Rear Hub | Formula DCL-348A Boost sealed bearing 32h Shimano E-Thru AX56 axle |
| Spokes | Double-butted stainless steel |
| Front Tyre | WTB Trail Boss TCS dual DNA light/fast 27.5 x 3.0" |
| Rear Tyre | WTB Trail Blazer TCS dual DNA light/fast 27.5 x 2.8" |
| Seat Post | JD YSP12L dropper post / 120mm travel / internal cable routing / 30.9mm |
| Chainset | Raceface RIDE single 32T narrow wide Boost 170-175mm |
| Bottom Bracket | RaceFace X-Type |
| Chain | KMC X11L |
| Cassette | Shimano M7000 11 speed cassette 11-42T |
| Pedals | Alloy MTB |
Mountain Bike Size Chart
|
Height
|
Bike Size
|
Mountain Bike Size
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
