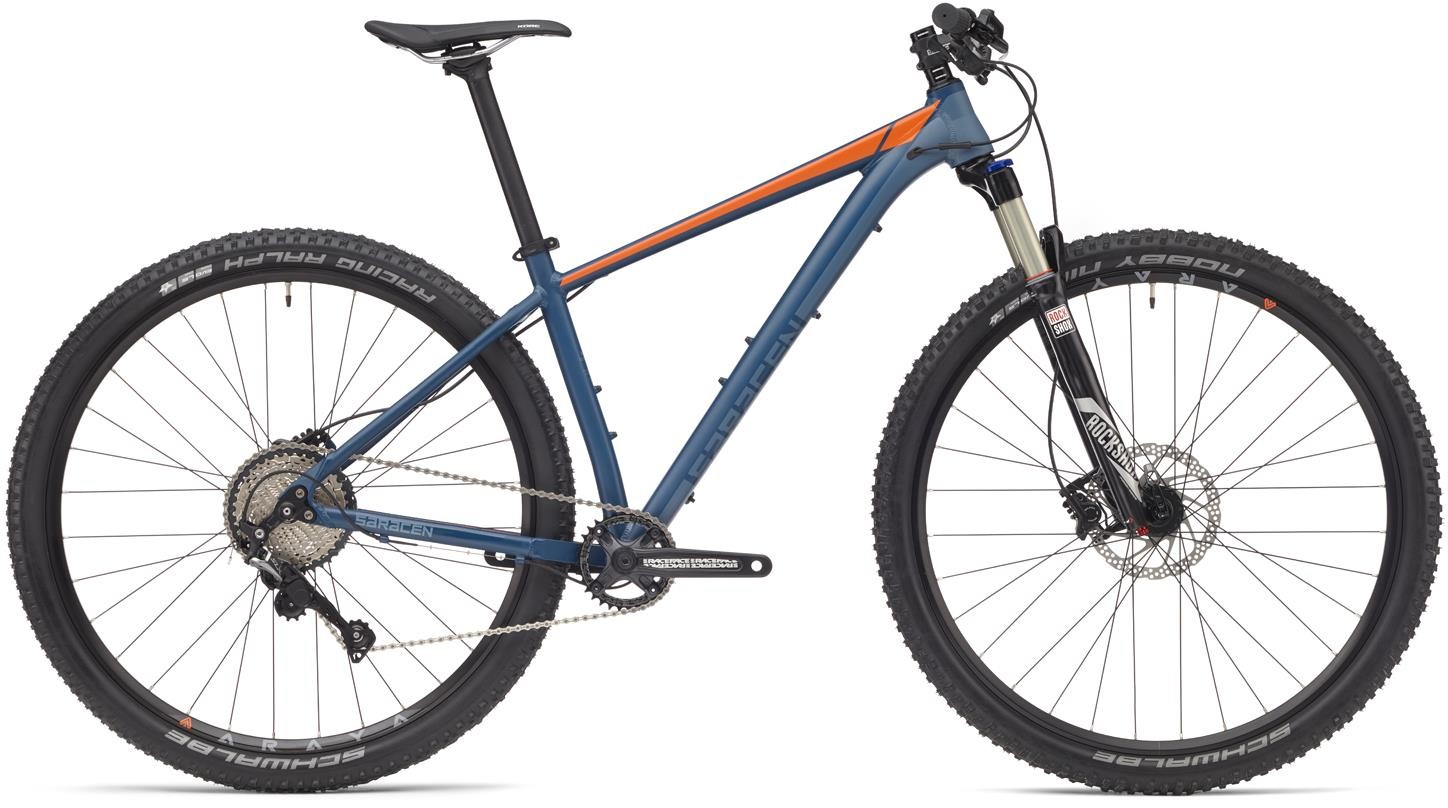

Saracen Zenith Trail 29er Mountain Bike 2018 - Hardtail MTB
- Series 2 custom butted and hydroformed 6061 alloy tubeset
- Rockshox Recon Gold RL-A4 / 100mm travel Fork
- Shimano SLX M7000 1x11
- Shimano M506/M447 180/160mm Brakes
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Series 2 custom butted and hydroformed 6061 alloy tubeset / ZS44-ZS56 tapered headtube / Chip-Slot dropout system / dropper post ready / UK developed |
| Fork | Rockshox Recon Gold RL-A4 / 100mm travel / Solo Air / tapered alloy steerer / low speed compression to lock / rebound adjust / 15x100 / Maxle Stealth |
| Headset | FSA No.57SC |
| Stem | Saracen 6061 3D-forged alloy / 60mm / A-head / -7 degree rise / 31.8mm clamp |
| Bars | Saracen OS 6061 DB alloy riser bar / 740mm wide / 0mm rise / 6 degree up bend / 9 degree back bend |
| Front Brake | Shimano M506 180mm |
| Rear Brake | Shimano M447 160mm |
| Brake Lever | Shimano M506 |
| Rear Mech | Shimano SLX M7000 Shadow Plus |
| Shifters | Shimano SLX M7000 Rapidfire Plus |
| Speed | 11 |
| Rims | Araya DS-700 doublewall alloy 32h |
| Front Hub | Formula DC-71 sealed bearing 32h, Shimano E-Thru AX56 axle |
| Rear Hub | Formula DCL-360 sealed bearing 32h, Shimano E-Thru AX56 axle |
| Spokes | Double-butted stainless steel |
| Front Tyre | Schwalbe Nobby Nick 29 x 2.25" |
| Rear Tyre | Schwalbe Racing Ralph EVO 29 x 2.25" |
| Seat Post | Alloy micro-adjust / 30.9mm |
| Chainset | Raceface RIDE single 32T narrow wide 170-175mm |
| Bottom Bracket | RaceFace X-Type |
| Chain | KMC X11L |
| Cassette | Shimano M7000 11 speed cassette 11-42T |
| Pedals | Alloy MTB |
| Weight | 12.45 KG |
Mountain Bike Size Chart
|
Height
|
Bike Size
|
Mountain Bike Size
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
