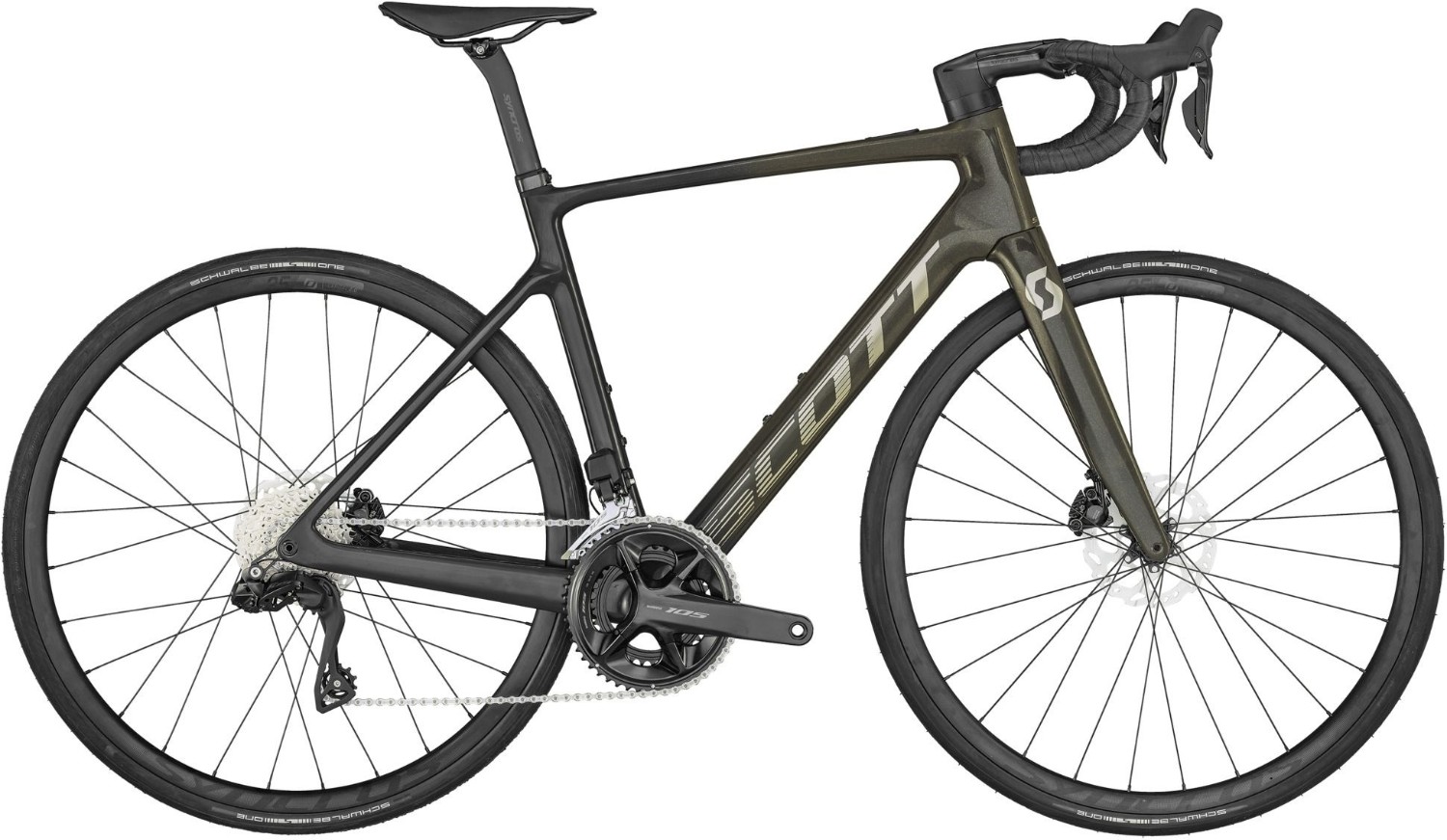

Scott Addict RC eRIDE 20 2024 - Electric Road Bike
Please note that bike specifications are subject to change without prior notice
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Addict eRIDE Disc HMX, Endurance geometry / Replaceable Derailleur Hanger, Fully Internal cable routing, Range Extender Ready |
Fork | Addict eRIDE HMX Flatmount Disc, 1 1/4"-1 1/2" Excentric Carbon steerer |
Headset | Syncros Addict RC Integrated |
Stem | Syncros RR iC, 1 1/4" |
Bars | Syncros Creston 2.0 Compact, Alloy |
Front Brake | Shimano BR-R7170 Hyd.Disc |
Rear Brake | Shimano BR-R7170 Hyd.Disc |
Front Mech | Shimano 105 Di2 FD-R7150 |
Rear Mech | Shimano 105 Di2 RD-R7150, 24 Speed |
Shifters | Shimano 105 Di2 ST-R7170, 24 Speed Electronic Shift System |
Speed | 24 |
Rims | Syncros Capital 2.0 25e Disc, 24 Front 12x100mmTA /32 Rear 12x142mmTA |
Front Tyre | Schwalbe ONE Race-Guard Fold, 700x30C |
Rear Tyre | Schwalbe ONE Race-Guard Fold, 700x30C |
Seat Post | Syncros Duncan 1.0 D-shape |
Saddle | Syncros Belcarra Regular 2.0 |
Chainset | Shimano 105 FC-R7100, Hollowtech II 50x34 T |
Bottom Bracket | Shimano BB-RS500-PB |
Cassette | Shimano CS-R7100, 11-34 T |
Battery Size (WH) | Mahle 36V-236Wh |
Motor | Mahle X20 Motor Hub drive 55Nm max Torque / EU: 25kmh / US: 20mph |
User Interface | Mahle HMI, Bluetooth / Dedicated Smartphone app |
Electric Bike Bike Size Chart
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
