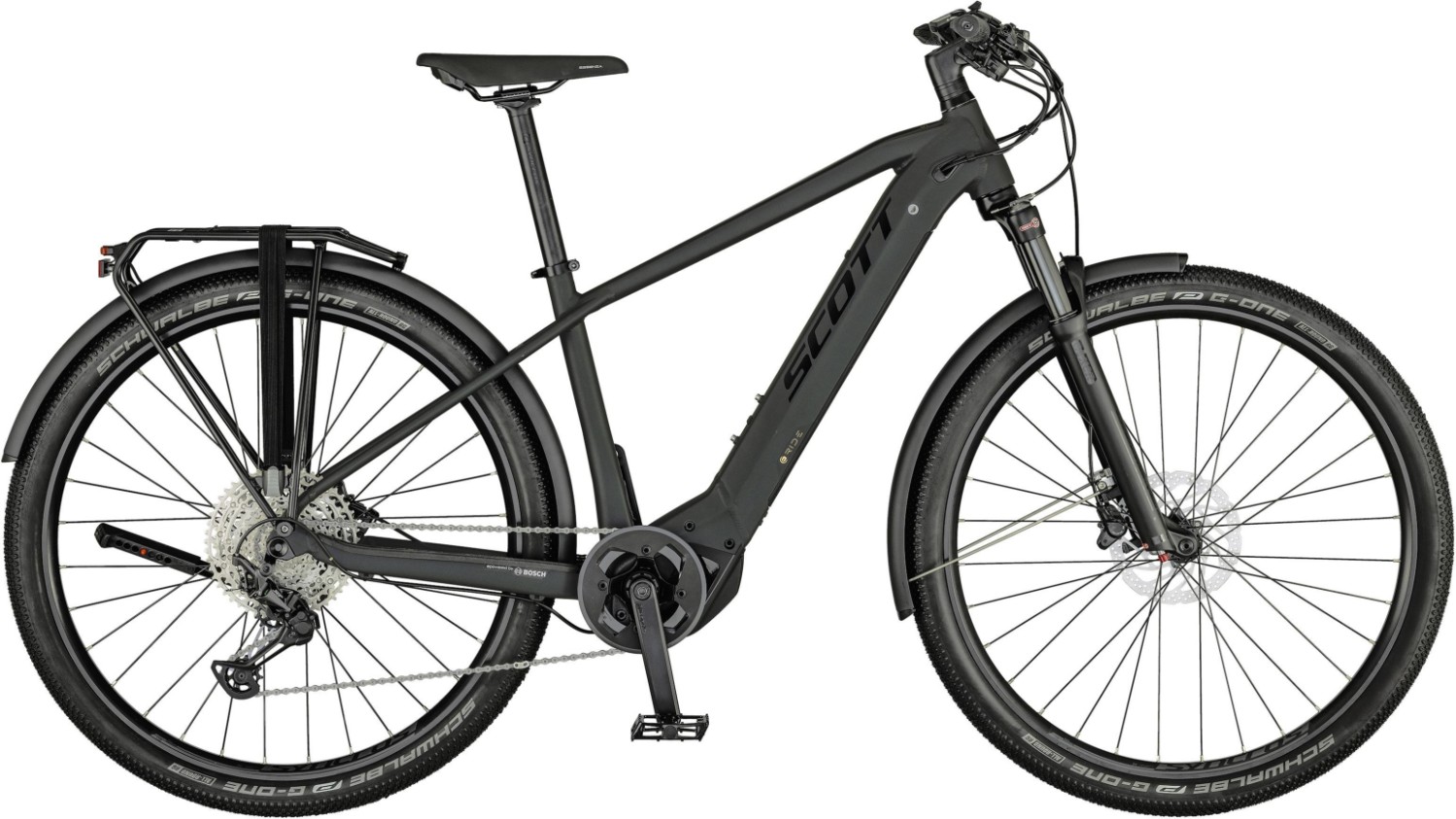

Scott Axis eRIDE 10 2022 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Alloy S-XL=29" / 6061 Alloy custom butted tubing Bosch Integr. removable Battery Range Extender Ready / internal cable routing / slanted Motor |
| Fork | SR Suntour XCR34 Air / Tapered / S-XL 29"/ 100mm Travel / 15x110 bolt Axle / Remote Lock Out |
| Headset | Syncros FL2.0 Urban / Tapered 1.5"-1 1/8" semi integ. OD 50/61mm / ID 44/55mm |
| Stem | Syncros UC3.0 with integrated Light |
| Bars | Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise Syncros Lock On Grip |
| Front Brake | Shimano BR-MT400 Disc 180/F and 180/R SM-RT30 CL rotor |
| Rear Brake | Shimano BR-MT400 Disc 180/F and 180/R SM-RT30 CL rotor |
| Rear Mech | Shimano XT / 12 Speed |
| Shifters | Shimano Deore SLM6100RA |
| Speed | 12 |
| Rims | Syncros X18 Disc / 32H Tubeless ready |
| Front Hub | Shimano HB-MT400 / 15x110mm |
| Rear Hub | Shimano FH-MT400B / Boost 12x148mm |
| Spokes | Black Spokes |
| Front Tyre | Schwalbe G-One Allround Performance 29x2.25" Wired |
| Rear Tyre | Schwalbe G-One Allround Performance 29x2.25" Wired |
| Seat Post | Syncros M3.0 / 31.6 |
| Saddle | Selle Royal Essenza |
| Chainset | Miranda 172,5MM |
| Bottom Bracket | Integrated |
| Chain | KMC E12S |
| Cassette | Shimano CS-M6100-12 10-51T 12S |
| Pedals | VP VPE-506 |
| Battery Size (WH) | PowerTube 625Wh |
| Motor | Bosch Performance CX EU: 25kmh / US: 20mph |
| User Interface | Purion Display |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
