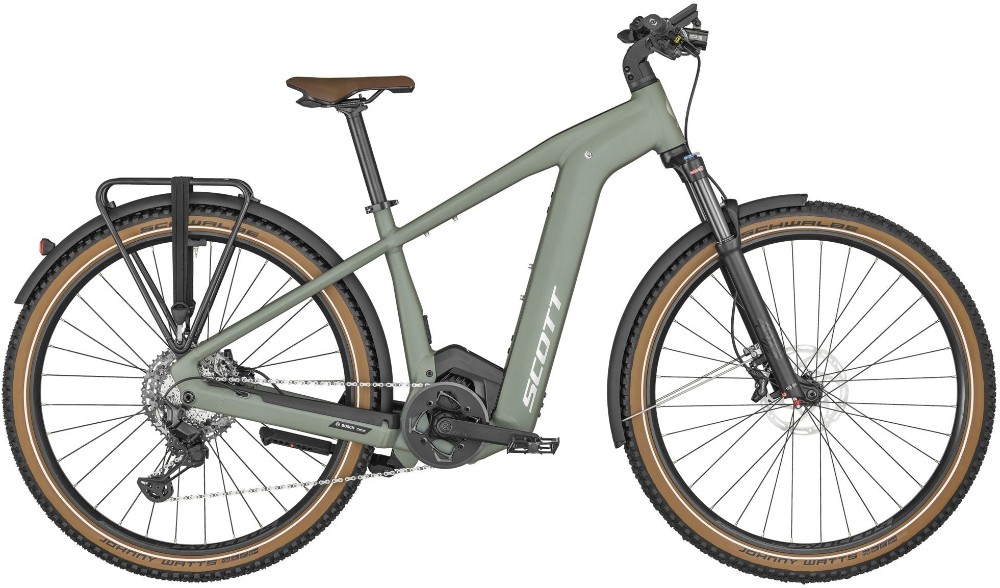

Scott Axis eRIDE 10 Men 2024 - Electric Hybrid Bike
Please note that bike specifications are subject to change without prior notice.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 6061 Alloy custom butted tubing, Bosch Integr. removable Battery, internal cable routing |
| Fork | SR Suntour XCR34 Air / Tapered / S-XL 29" / 120mm Travel / 15x110 bolt Axle / Remote Lock Out |
| Headset | Acros / 1.5"- 1.5", semi integ. OD 50/61mm / ID 44/55mm |
| Stem | Syncros with front Light mount and Kiox 300 mount |
| Bars | Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise |
| Front Brake | Tektro HD-M745 4 Piston. F/R: Tektro TR180-35 CL 180 mm |
| Rear Brake | Tektro HD-M745 4 Piston. F/R: Tektro TR180-35 CL 180 mm |
| Rear Mech | Shimano RD M8130SGS Linkgilde / 11 Speed |
| Shifters | Shimano XT RD M8130SGS Linkgilde / 11 Speed |
| Speed | 11 |
| Rims | Syncros X18 Disc |
| Front Hub | F: Shimano HB-MT400 / 15x110mm, R: Shimano FH-MT400 / Boost 12x148mm |
| Rear Hub | F: Shimano HB-MT400 / 15x110mm, R: Shimano FH-MT400 / Boost 12x148mm |
| Spokes | Black Spokes |
| Front Tyre | Schwalbe Johnny Watts 29x2.35" Wired |
| Rear Tyre | Schwalbe Johnny Watts 29x2.35" Wired |
| Seat Post | Syncros M3.0 / 31.6 |
| Saddle | Syncros Capilano |
| Chainset | Miranda 172,5MM |
| Chain | KMC E11S |
| Cassette | Shimano CS-LG600-11 11-50T 11S |
| Pedals | VP VPE-506 |
| Battery Size (WH) | PowerTube 750Wh |
| Motor | Bosch Performance CX BES3 |
| User Interface | Kiox 300 Display |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
