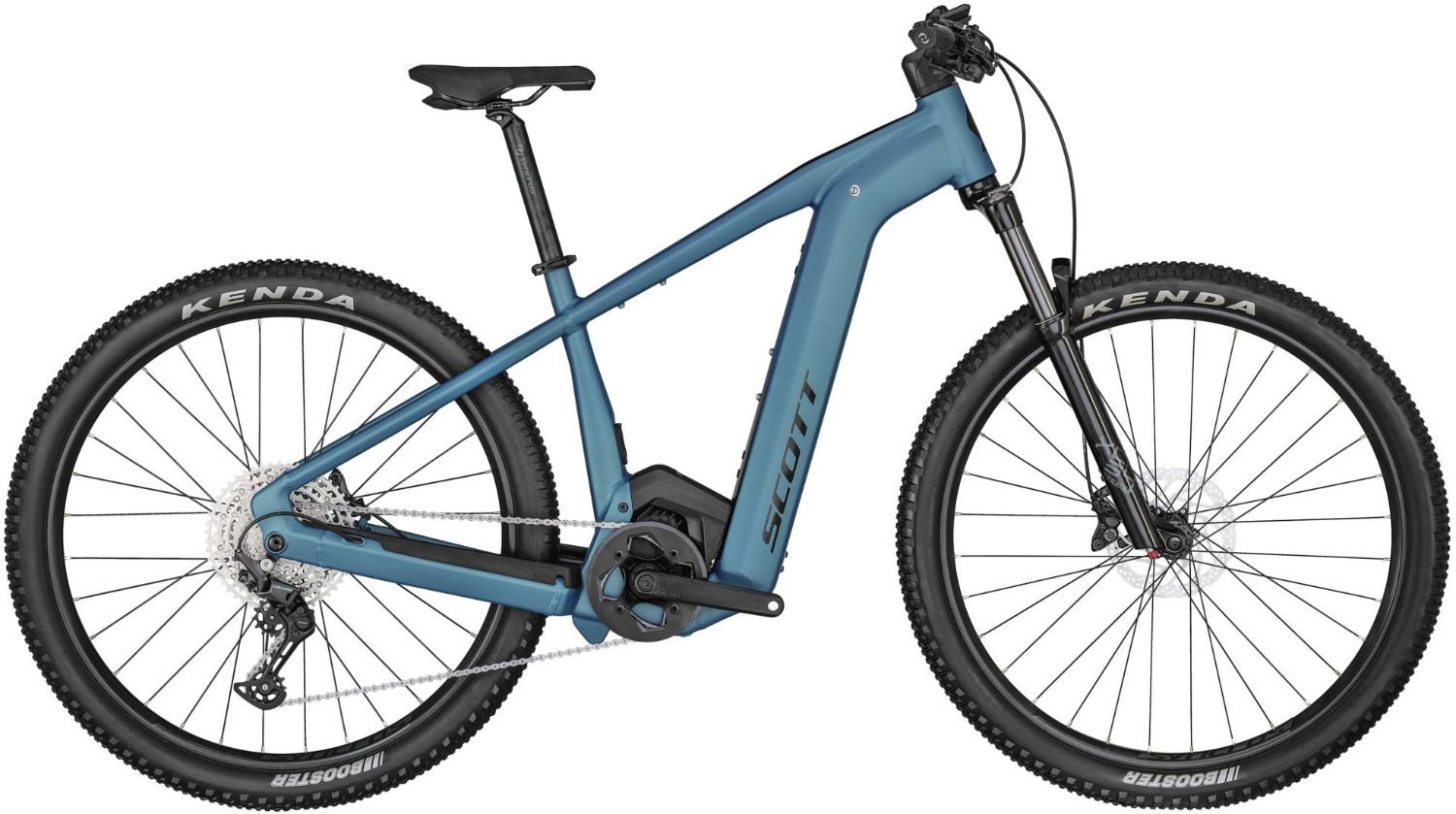

Scott Axis eRIDE EVO 2022 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Alloy S-XL=29" / 6061 Alloy custom butted tubing#Bosch Integr. removable Battery#internal cable routing |
| Fork | SR Suntour XCR34 Air / Tapered / S-XL 29"/ 120mm Travel / 15x110 bolt Axle / Remote Lock Out |
| Headset | Acros / 1.5"- 1.5"#Semi integ. OD 50/61mm / ID 44/55mm |
| Stem | Syncros FL 2.0 |
| Bars | Syncros AM2.0 / 6061 Alloy / 31.8mm / 4° / 1 1 / 8"#Syncros Lock On Grip |
| Front Brake | Shimano BR-MT400 Disc#180/F and 180/R SM-RT30 CL rotor, |
| Rear Brake | Shimano BR-MT400 Disc#180/F and 180/R SM-RT30 CL rotor, |
| Rear Mech | Shimano Deore / 12 Speed |
| Shifters | Shimano Deore Trigger SL-M6100RC |
| Speed | 12 |
| Rims | Syncros MD30 / 32H / 30mm / Pin Joint#Tubeless ready |
| Front Hub | Formula CL-811 / 15x110mm |
| Rear Hub | Shimano FH-MT400B / Boost 12x148mm |
| Spokes | Black Spokes |
| Front Tyre | Kenda Booster 29x2.6" / 30TPI |
| Rear Tyre | Kenda Booster 29x2.6" / 30TPI |
| Seat Post | Syncros M3.0 / 31.6 |
| Saddle | Selle Royale Essenza |
| Chainset | Miranda 172,5MM |
| Chain | KMC E12S |
| Cassette | Shimano CS-M6100-12 10-51T 12S |
| Pedals | VP VPE-506 |
| Battery Size (WH) | PowerTube 750Wh |
| Motor | Bosch Performance CX BES3 |
| User Interface | Kiox Display |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
