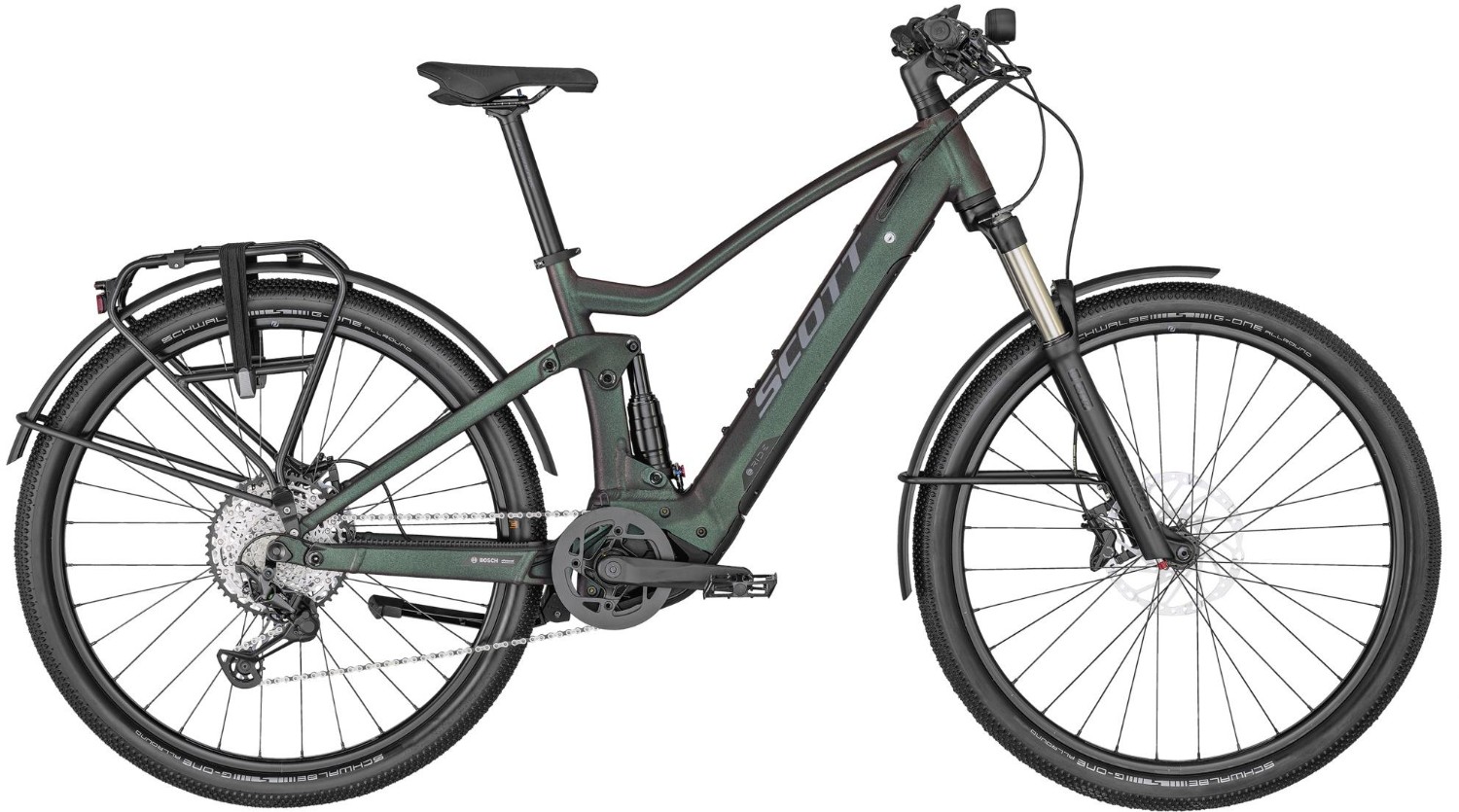

Scott Axis eRIDE FS 2023 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Alloy S-XL=29" / Virtual 4 link kinematic VLK#29" / Boost 148x12mm#140mm travel / Bosch Integr. removable Battery#Range Booster Ready#Tapered Headtube |
| Fork | Suntour XCR34 / Tapered / S-XL 29"/ 130mm Travel / Maxle Lite / Remote Lock Out |
| Rear Shock | X-Fusion NUDE Trunnion#SCOTT custom w. travel / geo adj.#3 modes: Lockout-Traction Control -Descend#Reb. Adj.#Travel 130-85-Lockout / 185X50mm |
| Headset | Syncros FL2.0 Press Fit E2 / Tapered 1.5"-1 1/8"#OD 50/62mm / ID 44/56mm |
| Stem | Syncros FL3.0 with front Light mount and Kiox mount |
| Bars | Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise#Syncros Lock On Grip |
| Front Brake | Shimano BR-MT520 4 Piston#203/F SM-RT64 CL and 203/R RT-EM600 CL rotor, |
| Rear Brake | Shimano BR-MT520 4 Piston#203/F SM-RT64 CL and 203/R RT-EM600 CL rotor, |
| Front Mech | SCOTT Chainguide |
| Rear Mech | Shimano XT 12 Speed |
| Shifters | Shimano Deore Trigger SL-M6100RA |
| Speed | 12 |
| Rims | Syncros MAXX Disc / 32H#Tubeless ready |
| Front Hub | Formula CL 811 / 15x110mm |
| Rear Hub | Formula MSC-148S / Boost 12x148mm |
| Spokes | Sapim double butted |
| Front Tyre | Schwalbe G-One Allround Performance#29x2.25" Wired |
| Rear Tyre | Schwalbe G-One Allround Performance#29x2.25" Wired |
| Seat Post | Syncros FL3.0 / 31.6 |
| Saddle | Selle Royale Essenza |
| Chainset | FSA CK-745 IS GEN4 MTB 170MM |
| Chain | KMC E12S |
| Cassette | Shimano CS-M7100-12 10-51T 12S |
| Pedals | VP VPE-506 |
| Battery Size (WH) | PowerTube 625Wh |
| Motor | Bosch Performance CX |
| User Interface | Kiox Display |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
