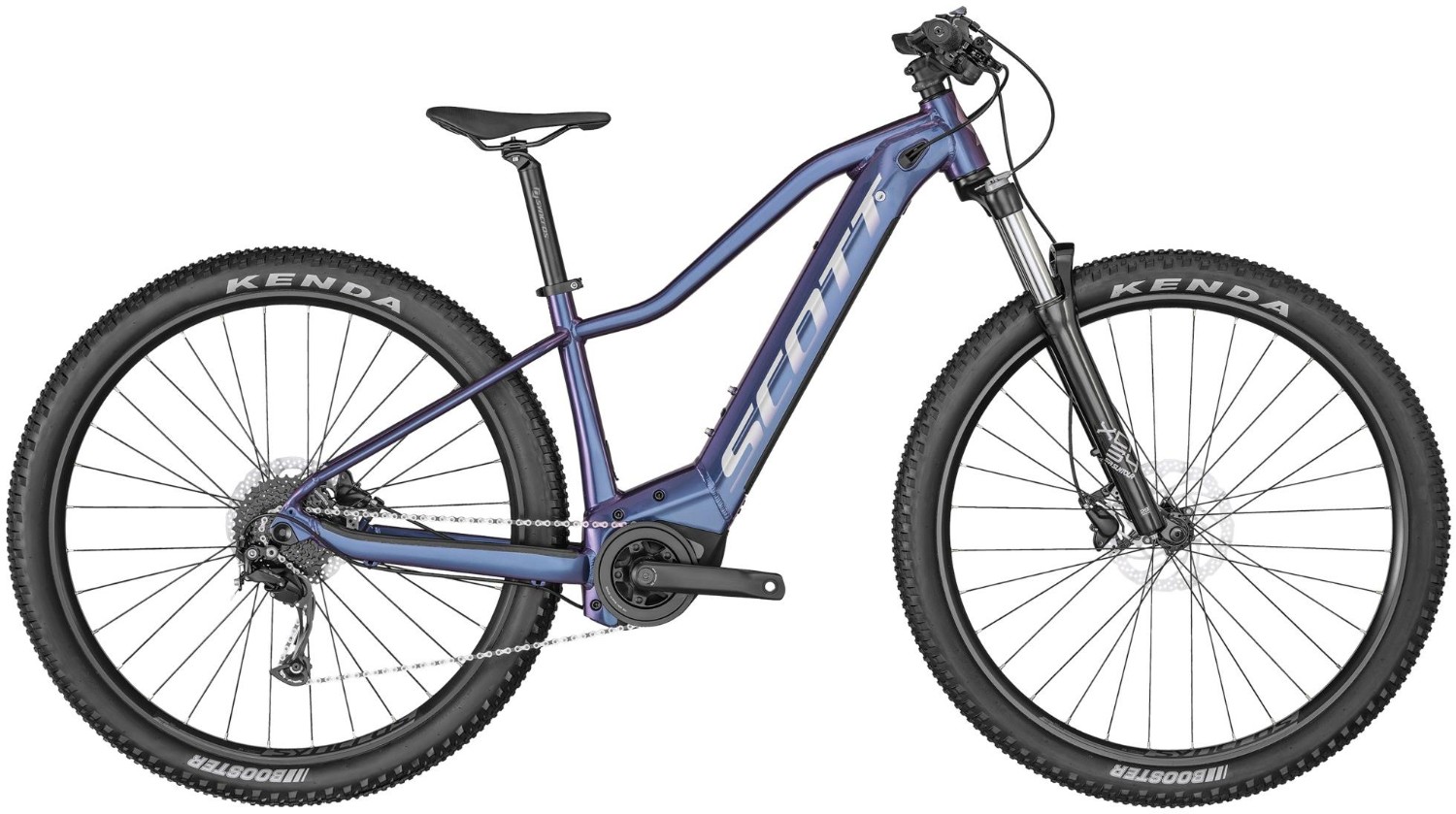

Scott Contessa Active eRIDE 930 2022 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Alloy frame#Bended TT#Tapered Headtube E2#Custom butted tubing / internal cable routing#Bosch Gen3 / Integr. removable Battery / Boost 148x12mm#DO Kickstand mount / Range Booster Ready |
| Fork | SR Suntour XCM34 Coil#15x110mm QR axle / Tapered Steerer#Remote Lockout / 120mm travel |
| Headset | Syncros OE / Tapered 1.5"-1 1/8"#semi integ. OD 50/62mm / ID 44/56mm |
| Stem | Syncros 3.0 / 7° / Black |
| Bars | Syncros 3.0 720mm / 31.8mm / 9° / 12mm rise#Syncros Women Comfort lock-on grips |
| Front Brake | Shimano BR-MT200 Disc, Front: SM-RT30 CL 180mm / Rear: RT-EM300 CL 180mm |
| Rear Brake | Shimano BR-MT200 Disc, Front: SM-RT30 CL 180mm / Rear: RT-EM300 CL 180mm |
| Rear Mech | Shimano RD-M3100 / 9 Speed |
| Shifters | Shimano SL-M2000 |
| Speed | 9 |
| Rims | Syncros X18 / 32H / 30mm / Pin Joint |
| Front Hub | Shimano HB-MT400-B CL / 15x110mm |
| Rear Hub | Shimano FH-MT400-B CL / Boost 12x148mm |
| Spokes | Stainless Black |
| Front Tyre | Kenda Booster 29x2.6" / 30TPI |
| Rear Tyre | Kenda Booster 29x2.6" / 30TPI |
| Seat Post | Syncros 3.0 / 31.6mm |
| Saddle | Syncros Savona 2.5 V-Concept |
| Chainset | FSA CK-200 / 165mm |
| Chain | KMC e9S |
| Cassette | Shimano CS-HG200-9 ACERA 11-36 |
| Pedals | Resin Platform |
| Battery Size (WH) | PowerTube 500Wh |
| Motor | Bosch Active Line Plus#EU: 25kmh / INT: 20mph |
| User Interface | Bosch Purion |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
