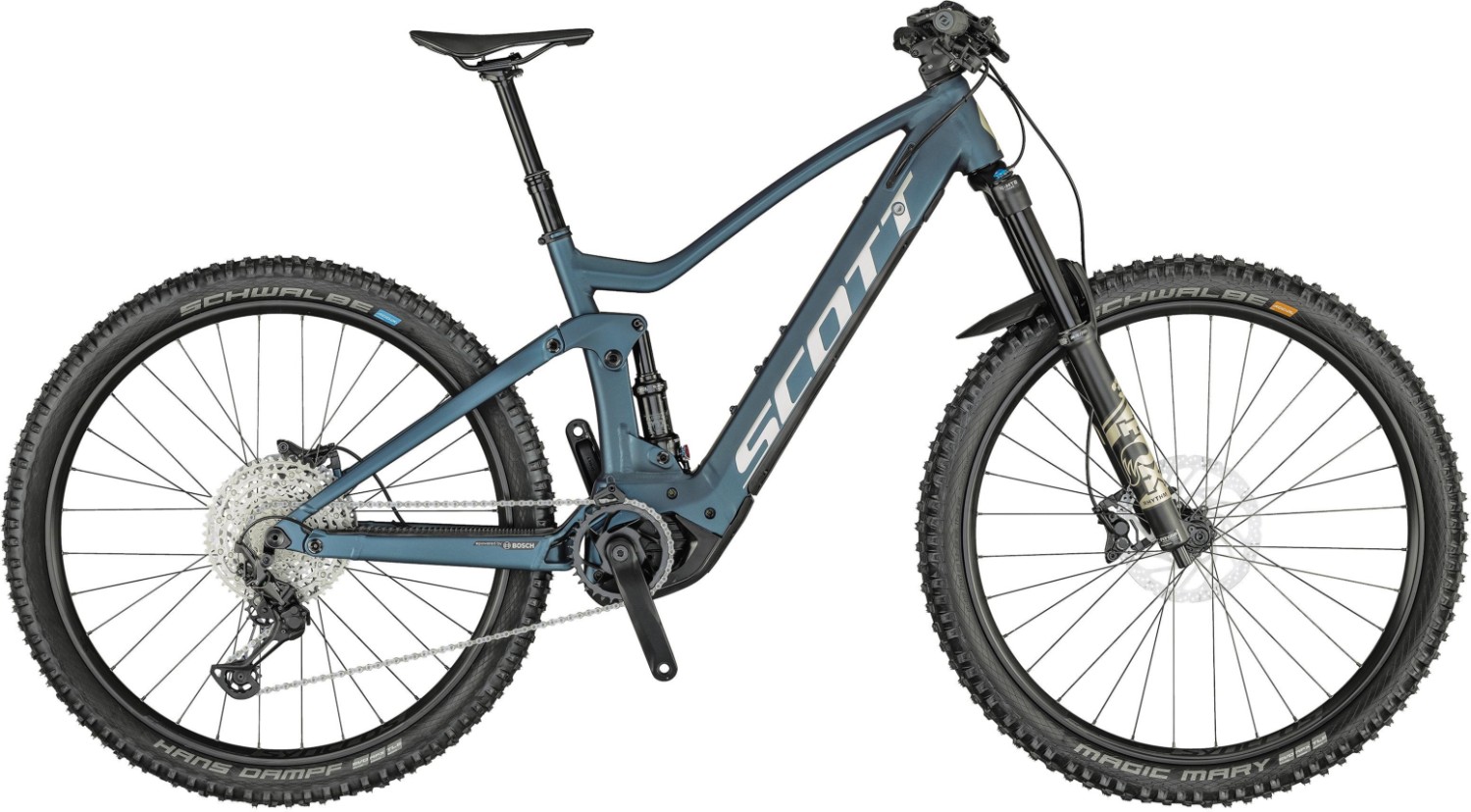

Scott Genius eRIDE 920 2022 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Alloy Frame / Virtual 4 link kinematic VLK 27.5" and 29" compatible / geo adj. / Boost 148x12mm 150mm travel / Bosch Gen4 / Integr. removable Battery Tapered Headtube E2/Forkstop, Central Kickstand Mount Range Booster Ready |
| Fork | FOX 36 Rhythm Air Grip 3 / 3-Modes / 15x110mm QR axle tapered steerer / Reb. Adj. / Lockout / 160mm travel |
| Rear Shock | FOX Float EVOL Performace Trunnion 3 modes / Lockout-Trail-Descend DPS / Reb. Adj. Travel 150mm / 185x55mm |
| Headset | Acros Blocklock / Tapered 1.5"-1 1/8" OD 52/62mm / ID 44/56mm |
| Stem | Syncros FL2.0 / 6061 Alloy L-Shape Spacer & Top Cap / 31.8mm / 6° / 1 1/8" |
| Bars | Syncros Hixon 2.0 / Alloy 6061D.B. 12mm rise / 9° / 780mm Syncros Pro lock-on grips |
| Front Brake | Shimano BR-MT420 4 Piston Front: SM-RT30 CL 203mm / Rear: RT-EM300 CL 203mm |
| Rear Brake | Shimano BR-MT420 4 Piston Front: SM-RT30 CL 203mm / Rear: RT-EM300 CL 203mm |
| Rear Mech | Shimano XT / 12 Speed |
| Shifters | Shimano SL-M6100 |
| Speed | 12 |
| Rims | Syncros MD30 / 32H / 30mm / Pin Joint Tubeless ready |
| Front Hub | Shimano HB-MT400-B CL / 15x110mm |
| Rear Hub | Shimano FH-MT410-B CL / Boost 12x148mm |
| Spokes | Stainless Black |
| Front Tyre | Schwalbe MagicMary 29x2.6" Snake Skin / TL-Easy / SuperTrail / Addix Soft |
| Rear Tyre | Schwalbe Hans Dampf 29x2.6" Snake Skin / TL-Easy / SuperTrail / Addix Speedgrip |
| Seat Post | Syncros Duncan Dropper Post 2.5 31.6mm / S size 100mm / M 125mm / L size 150mm / XL 170mm |
| Saddle | Syncros Tofino 2.0 Regular CRMO rails |
| Chainset | FSA CK-745 165mm / 34T |
| Bottom Bracket | Integrated |
| Chain | KMC E12S |
| Cassette | Shimano CS-M6100 / 10-51 T |
| Pedals | Resin Platform |
| Battery Size (WH) | PowerTube 625Wh |
| Motor | Bosch Performance CX EU: 25kmh / US: 20mph |
| User Interface | Bosch Purion |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
