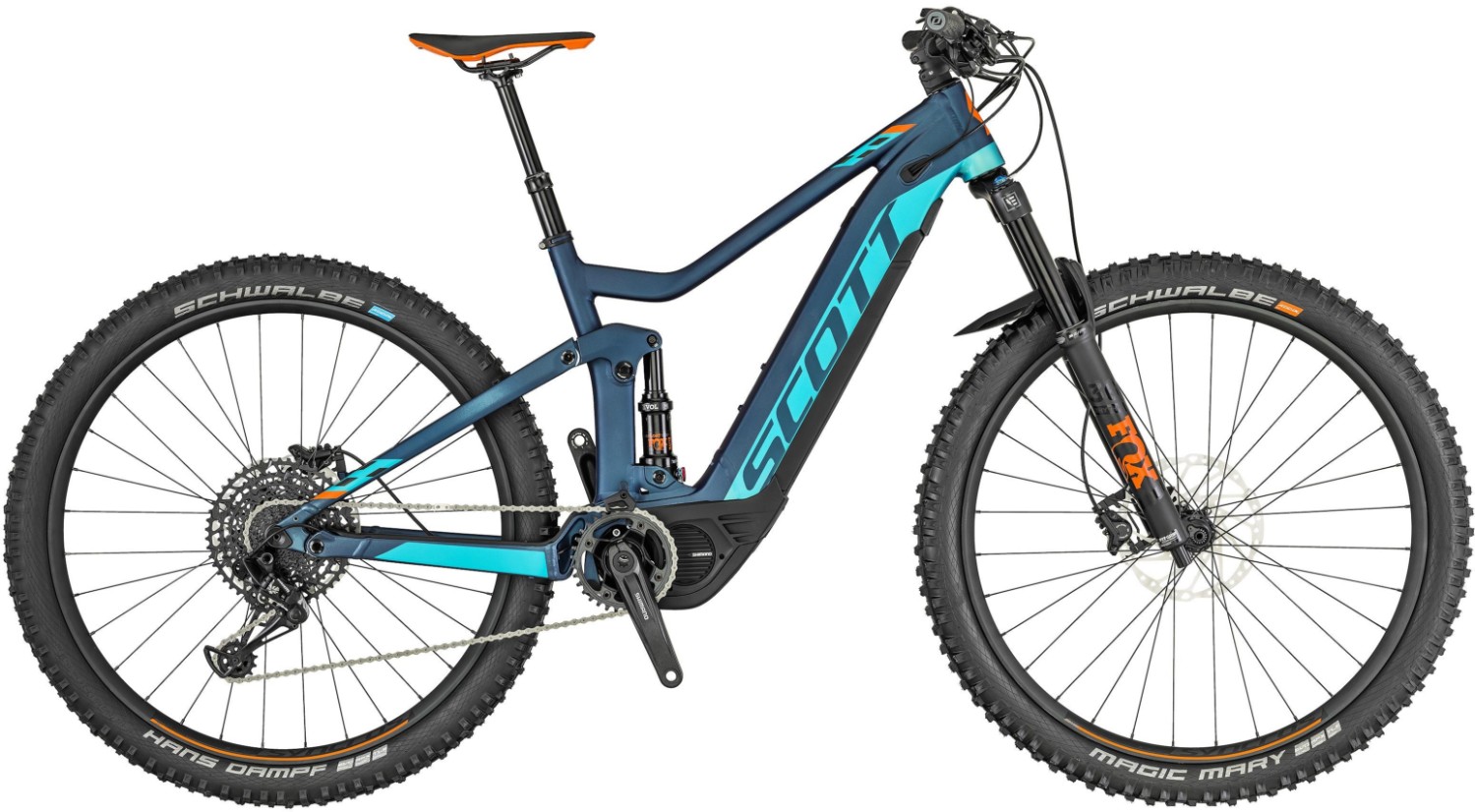

Scott Genius eRide 720 27.5" 2019 - Electric Mountain Bike
- Shimano STEPS E8000 250W w/integr. 500Wh Battery
- SC-E8000 Display
- Shimano 4A Charger
- SCOTT TwinLoc Remote Technology
- 3 modes front and rear
- Integrated grip clamp
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Alloy Frame / Virtual 4 link kinematic VLK 27.5" and 29" compatible / geo adj. / Boost 148x12mm 150mm travel / Shimano E-8000 integr. DT Battery Tapered Headtube E2, Central Kickstand Mount |
| Fork | FOX 36 Rhythm Air Grip 3 / 3-Modes / 15x110mm QR axle tapered steerer / Reb. Adj. / Lockout / 150mm travel |
| Rear Shock | FOX Float EVOL Performace Trunnion 3 modes / Lockout-Trail-Descend DPS / Reb. Adj. Travel 150mm / 185x55mm |
| Headset | Syncros FL2.0 Press Fit E2 / Tapered 1.5"-1 1/8" OD 50/62mm / ID 44/56mm |
| Stem | Syncros FL2.0 / 6061 Alloy integrated Spacer & Top Cup / 31.8mm / 6° / 1 1/8" |
| Bars | Syncros FL2.0 Steps mini Riser / Alloy 6061 12mm rise / 9° / 760mm Syncros Pro lock-on grips |
| Front Brake | Shimano BR-MT520 Disc 203mm F&R / SM-RT64 CL Rotor |
| Rear Brake | Shimano BR-MT520 Disc 203mm F&R / SM-RT64 CL Rotor |
| Brake Lever | Shimano BL-MT501 |
| Rear Mech | SRAM NX Eagle / 12 Speed |
| Shifters | SRAM NX Eagle Single Click |
| Speed | 12 |
| Rims | Syncros X-30S / 32H / 30mm / Sleeve Joint Tubeless ready |
| Front Hub | Shimano HB-MT400-B CL / 15x110mm |
| Rear Hub | Shimano FH-MT400-B CL / Boost 12x148mm |
| Spokes | Stainless Black |
| Front Tyre | Schwalbe MagicMary Snake Skin / TL-Easy / Apex / Addix Soft 700 Series: 27.5x2.8" / 900 Series: 29x2.6" |
| Rear Tyre | Schwalbe Hans Dampf Snake Skin / TL-Easy / Apex / Addix Speedgrip 700 Series: 27.5x2.8" / 900 Series: 29x2.6" |
| Seat Post | Syncros Dropper 2.5 / Remote 31.6mm / S size 100mm / M, L & XL 125mm |
| Saddle | Syncros Tofino 2.0 / CrMo Rails |
| Chainset | Shimano STEPS FC-E8000 / 165mm / 34T |
| Chain | SRAM NX Eagle |
| Cassette | SRAM PG1230 / 11-50 T |
| Pedals | Basic Resin Flat |
| Battery Size (WH) | 500 Wh |
| Motor | Shimano |
| User Interface | Shimano SC-E8000 Display |
Scott Genius eRide Bike Sizing
Frame Size
S
5'4"
5'8"
M
5'7"
5'11"
L
5'10"
6'2"
XL
6'0"
6'5"
Read our bike size guide for more information on sizing.
Scott Genius eRide Geometry
|
S / 900 |
S / 700 |
M / 900 |
M / 700 |
L / 900 |
L / 700 |
XL / 900 |
XL / 700 |
|
|
Low bb setting |
High bb setting |
Low bb setting |
High bb setting |
Low bb setting |
High bb setting |
Low bb setting |
High bb setting |
|
|
Head tube angle mm |
64.8 ° |
65.4 ° |
64.8 ° |
65.4 ° |
65.0 ° |
65.6 ° |
65.0 ° |
65.6 ° |
|
Head tube length mm |
120.0 |
120.0 |
125.0 |
125.0 |
135.0 |
135.0 |
145.0 |
145.0 |
|
Top tube horizontal mm |
585.0 |
583.4 |
605.0 |
603.4 |
635.0 |
633.3 |
665.0 |
663.3 |
|
Standover height mm |
762.4 |
748.8 |
766.6 |
753.3 |
798.1 |
785.4 |
809.8 |
797.4 |
|
Bb offset mm |
-30.0 |
-22.1 |
-30.0 |
-22.1 |
-30.0 |
-22.0 |
-30.0 |
-21.9 |
|
Bb height mm |
347.0 |
337.9 |
347.0 |
337.9 |
347.0 |
338.0 |
347.0 |
338.1 |
|
Wheel base mm |
1,215.2 |
1,213.7 |
1,236.1 |
1,234.6 |
1,258.4 |
1,256.9 |
1,290.2 |
1,288.7 |
|
Seat tube mm |
410.0 |
410.0 |
440.0 |
440.0 |
490.0 |
490.0 |
540.0 |
540.0 |
|
Seat angle mm |
75.4 ° |
76.0 ° |
75.4 ° |
76.0 ° |
74.8 ° |
75.4 ° |
74.8 ° |
75.4 ° |
|
Chainstay mm |
465.0 |
462.8 |
465.0 |
462.8 |
465.0 |
462.8 |
465.0 |
462.8 |
|
Reach mm |
421.8 |
428.3 |
440.6 |
447.1 |
460.7 |
467.2 |
488.3 |
494.7 |
|
Stack mm |
626.6 |
622.2 |
631.2 |
626.6 |
641.4 |
636.7 |
650.4 |
645.6 |
|
Stem length mm |
50.0 |
50.0 |
50.0 |
50.0 |
60.0 |
60.0 |
70.0 |
70.0 |
|
Trail mm |
128.8 |
120.2 |
128.8 |
120.2 |
127.2 |
118.8 |
127.2 |
118.8 |
