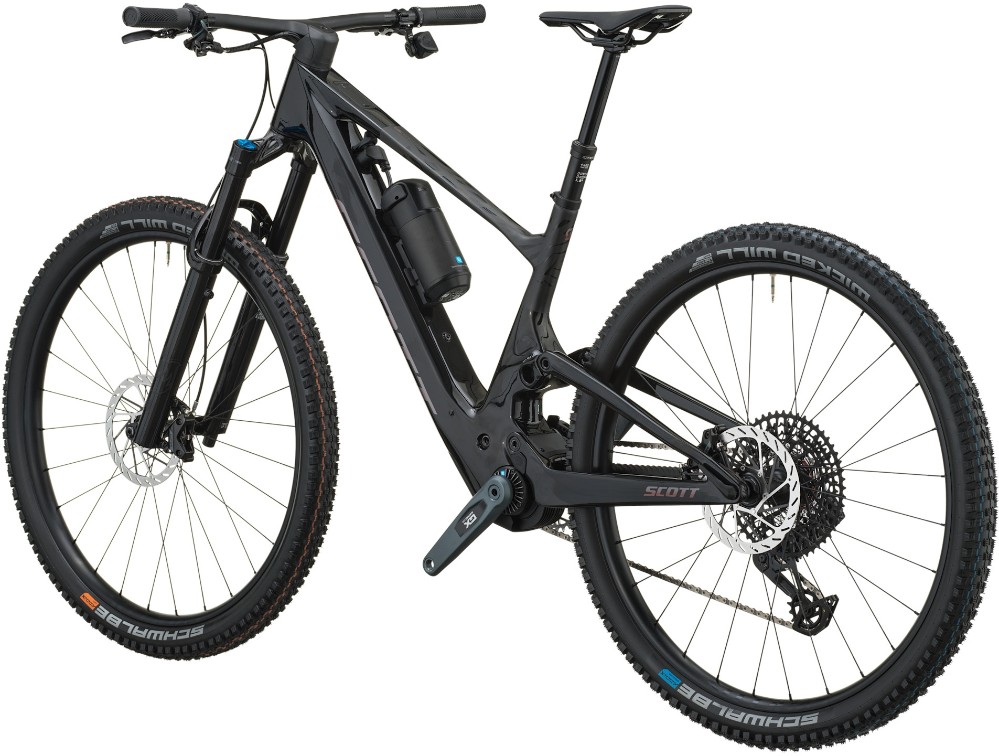

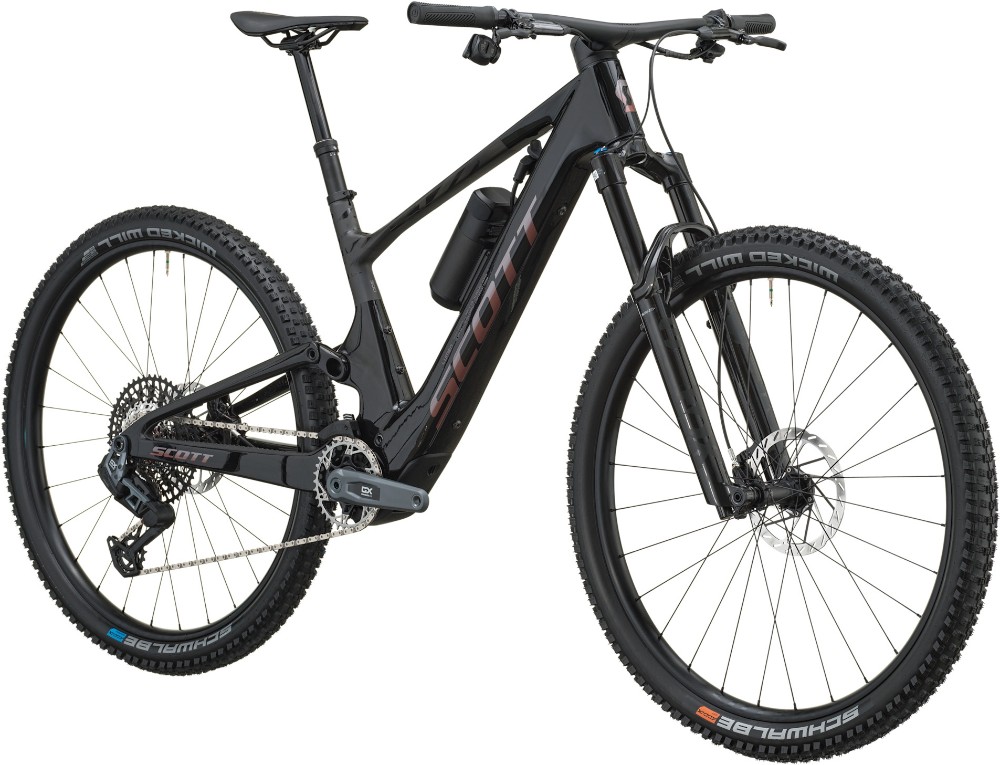

Scott Lumen 900 2027 - Electric Mountain Bike
We built Lumen as the mountain biker’s e-bike. And fittingly, Lumen gets a bump up in range, so you can stay out on the trails longer and push yourself further. Lumen’s 360Wh main battery now gets extra support with an included 160 Wh Range Extender Battery. The pint-size extender easily attaches with a quick-release mount to supply that extra juice and maximum performance you’ll need to send a massive ride. Or you can stow it away in a small pack to carry along for those just-in-case moments. And not to worry, if you blow it all before you’re back to the trailhead, the Lumen 900 is lightweight enough to pedal it on empty with the no-drag motor switched off.
This Lumen 900 features a brightly illuminated black and white data management screen and is specced with performance-focused components like FOX’s 36SL Performance Elite 140mm fork, our custom 130mm integrated shock, SRAM GX Eagle AXS, and Motive Silver brakes.
Please note that bike specifications are subject to change without prior notice.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Carbon HMX, Integrated Suspension Technology, Flex Pivot, adjustable head angle, Syncros Cable Integration System, TQ HPR60, UDH interface, 12x148mm with 55mm chainline |
| Fork | Fox 36SL Performance Elite Grip SL , 3P with low speed adj., Kabolt 15x110mm axle, tapered steerer, Reb. Adj., Lockout |
| Rear Shock | Fox Nude 6 EVOL Trunnion, SCOTT custom w. travel, geo adj., 3 modes: Lockout-Traction Control-Descend, low speed Adj., Custom large Air volume, Reb. Adj., Bearing Hardware, T165X45mm |
| Stem | Syncros dropper post SP-M300-AL2, +RAD drop adjust, 31.6mm |
| Front Brake | SRAM Motive Silver 4-Piston |
| Rear Brake | SRAM Motive Silver 4-Piston |
| Brake Lever | SRAM Motive Silver 4-Piston |
| Rear Mech | SRAM GX Eagle AXS Transmission 12 Speed, Wireless |
| Shifters | SRAM AXS Rocker Pod Controller |
| Speed | 12 |
| Rims | Syncros Silverton 1.5-30 CL, F: 15x110mm, R: 12x148mm, 30mm Tubeless ready rim 28H, XD Driver, Syncros Axle w/Removable Lever, with 6mm Allen, T30 and T25 Tools |
| Front Hub | Syncros Silverton 1.5-30 CL, F: 15x110mm, R: 12x148mm, 30mm Tubeless ready rim 28H, XD Driver, Syncros Axle w/Removable Lever, with 6mm Allen, T30 and T25 Tools |
| Rear Hub | Syncros Silverton 1.5-30 CL, F: 15x110mm, R: 12x148mm, 30mm Tubeless ready rim 28H, XD Driver, Syncros Axle w/Removable Lever, with 6mm Allen, T30 and T25 Tools |
| Front Tyre | Schwalbe Wicked Will EVO, TLE 29 x 2.40 |
| Rear Tyre | Schwalbe Wicked Will EVO, TLE 29 x 2.40 |
| Seat Post | Syncros dropper post SP-M300-AL2, +RAD drop adjust, 31.6mm |
| Saddle | Syncros Tofino R 1.5 |
| Chainset | SRAM GX Eagle, Alloy |
| Chain | SRAM GX Eagle Transmission |
| Cassette | SRAM GX Eagle XS-1275 Transmission, 10-52T |
| Battery Size (WH) | TQ Internal 360Wh |
| Motor | TQ HPR60 Mid Motor drive 60Nm max Torque, EU: 25kmh - INT: 20mph - US: 28mph |
| User Interface | TQ HPR, Bluetooth, ANT+, Dedicated Smartphone app |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
