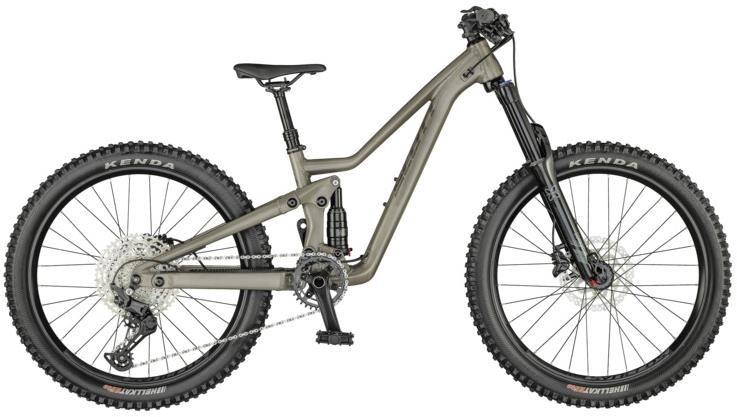

Scott Ransom 400 26" 2021 - Junior Bike
For kids who don't want to be kids anymore, the SCOTT Ransom 400 is the fast and capable enduro bike dreams are made of. Long travel front and rear in combination with a flip chip for 24" and 26" inch wheels make the Ransom the perfect bike reaching for new heights.
Key Features:
- Ransom 24"/26" Alloy 6061
- X-Fusion Slant RC 26 / 140mm
- X-Fusion R / Kids Bike Tune
- Shimano Deore 11 Speed
- Shimano Disc Brakes
- Syncros DP30 Rims
- Kenda Hellkat Tires
- Syncros Parts
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Ransom 24"/26" Alloy 6061 Custom Butted Tubing Tapered Headtube / BB73 Internal cable routing UDH 148x12mm |
| Fork | X-Fusion Slant RC 26 / 140mm / tapered Kids Bike Tune |
| Rear Shock | X-Fusion 02Pro R Trunnion Rebound Adjuster / Kids Bike Tune Travel 130mm / 165x45mm |
| Headset | Syncros OE Press Fit / Reduce 1.5"-1 1/8" OD 50/62mm / ID 44/56mm |
| Stem | Syncros 6061 Alloy Oversized 31.8mm / 1 1/8" / 7° angle |
| Bars | Syncros T-Bar / Alloy 6061 T shape Flat / 9° / 600mm Syncros Youth 115 |
| Front Brake | Shimano BR-MT500 Disc Shimano Deore SM-RT56 / IS / F: 180mm / R: 160mm |
| Rear Brake | Shimano BR-MT500 Disc Shimano Deore SM-RT56 / IS / F: 180mm / R: 160mm |
| Brake Lever | Shimano BL-MT501 |
| Rear Mech | Shimano Deore RD-M5100 11-Speed |
| Shifters | Shimano Deore SL-M5100-R |
| Speed | 11 |
| Rims | Syncros DP30 / 32H / 30mm |
| Front Hub | Formula DC-71 IS / 15x110mm |
| Rear Hub | Formula DC-3248 IS / Boost 12x148mm |
| Spokes | Stainless Black 15G / 1.8mm |
| Front Tyre | Kenda Hellkat K1201 / 60TPI / folding / 24x2.4 |
| Rear Tyre | Kenda Hellkat K1201 / 60TPI / folding / 24x2.4 |
| Seat Post | Syncros Dropper Ducan Remote 31.6mm / 80mm / Kid centric custom tune |
| Saddle | Syncros Belcarra 2.5 |
| Chainset | Prowheel CHARM-32T 2PC Boost / 127mm |
| Bottom Bracket | Prowheel BB73 |
| Chain | KMC X11 |
| Cassette | Shimano CS-M5100-11 / 11-51 |
Scott Ransom 2021 Sizing
| Size | Height cm | Height inch |
| S | < 165 - 172 | < 5'5 - 5'8 |
| M | 167 - 180 | 5'6 - 5'11 |
| L | 178 - 188 | 5'10 - 6'2 |
| XL | 182 - > 195 | 6'0 - < 6'5 |
Scott Ransom 2021 Geometry
| S | S | M | M | L | L | XL | XL | ||
|---|---|---|---|---|---|---|---|---|---|
| LOW BB Setting | HIGH BB Setting | LOW BB Setting | HIGH BB Setting | LOW BB Setting | HIGH BB Setting | LOW BB Setting | HIGH BB Setting | ||
| HEAD TUBE ANGLE | 64.5 ° | 65.0 ° | 64.5 ° | 65.0 ° | 64.5 ° | 65.0 ° | 64.5 ° | 65.0 ° | |
| HEAD TUBE LENGTH | 100.0 MM | 100.0 MM | 100.0 MM | 100.0 MM | 115.0 MM | 115.0 MM | 130.0 MM | 130.0 MM | |
| TOP TUBE HORIZONTAL | 571.1 MM | 569.7 MM | 604.2 MM | 602.7 MM | 634.7 MM | 633.2 MM | 671.3 MM | 669.7 MM | |
| STANDOVER HEIGHT | 744.6 MM | 733.9 MM | 746.3 MM | 736.5 MM | 760.9 MM | 751.6 MM | 776.5 MM | 767.4 MM | |
| BB OFFSET | -22.0 MM | -15.0 MM | -22.0 MM | -15.0 MM | -22.0 MM | -15.0 MM | -22.0 MM | -15.0 MM | |
| BB HEIGHT | 353.5 MM | 346.5 MM | 353.5 MM | 346.5 MM | 353.5 MM | 346.5 MM | 353.5 MM | 346.5 MM | |
| WHEEL BASE | 1,182.9 MM | 1,181.4 MM | 1,215.9 MM | 1,214.4 MM | 1,249.2 MM | 1,247.8 MM | 1,288.5 MM | 1,287.1 MM | |
| BB CENTER TO TOP OF SEATTUBE | 420.0 MM | 420.0 MM | 440.0 MM | 440.0 MM | 470.0 MM | 470.0 MM | 500.0 MM | 500.0 MM | |
| SEAT ANGLE | 75.0 ° | 75.5 ° | 75.0 ° | 75.5 ° | 75.0 ° | 75.5 ° | 75.0 ° | 75.5 ° | |
| CHAINSTAY | 437.9 MM | 436.0 MM | 437.9 MM | 436.0 MM | 437.9 MM | 436.0 MM | 437.9 MM | 436.0 MM | |
| REACH | 406.3 MM | 412.0 MM | 439.5 MM | 445.0 MM | 466.5 MM | 472.0 MM | 499.5 MM | 505.0 MM | |
| STACK | 613.6 MM | 609.8 MM | 613.6 MM | 609.8 MM | 627.6 MM | 623.4 MM | 641.3 MM | 637.0 MM | |
| STEM LENGTH | 50.0 MM | 50.0 MM | 50.0 MM | 50.0 MM | 50.0 MM | 50.0 MM | 50.0 MM | 50.0 MM | |
| TRAIL | 122.5 MM | 112.3 MM | 122.5 MM | 112.3 MM | 122.5 MM | 112.3 MM | 122.5 MM | 112.3 MM |
