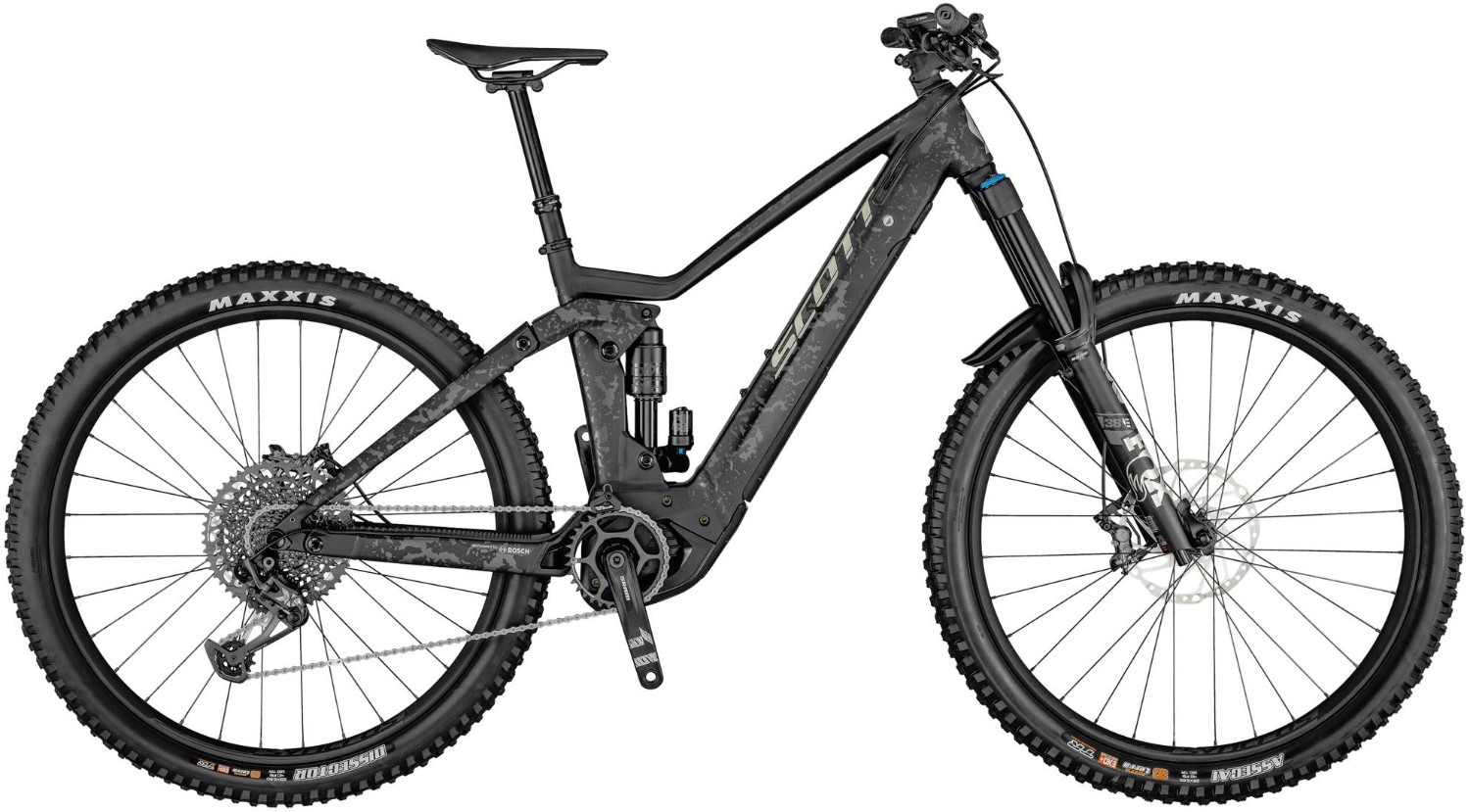

Scott Ransom eRIDE 910 2021 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Alloy Frame / Virtual 4 link kinematic VLK 27.5" and 29" compatible / geo adj. / Boost 148x12mm 180mm travel / Bosch Gen4 / Integr. removable Battery Tapered Headtube E2, Central Kickstand Mount |
| Fork | FOX 38 Performance Elite / Air / eMTB+ FIT Grip 2 / LSC-HSC / LSR-HSR / 15x110mm QR axle tapered steerer / Reb. Adj. / 180mm travel FOX fork fender |
| Rear Shock | FOX Float X2 / Air / HSC/LSC-HSR/LSR w/2-Pos. lever |
| Headset | Acros Blocklock / Tapered 1.5"-1 1/8" OD 52/62mm / ID 44/56mm |
| Stem | Syncros XM1.5 / Alloy 6061 integrated Spacer & Top Cap / 31.8mm / 0° / 1 1/8" |
| Bars | Syncros Hixon 1.5 Rise / Alloy 2014D.B. 20mm rise / 8° / 800mm Syncros Pro lock-on grips |
| Front Brake | Shimano XT / BR-M8120 4 Piston Front: SM-RT64 CL 203mm / Rear: RT-EM600 CL 203mm |
| Rear Brake | Shimano XT / BR-M8120 4 Piston Front: SM-RT64 CL 203mm / Rear: RT-EM600 CL 203mm |
| Rear Mech | SRAM X01 Eagle / 12 Speed |
| Shifters | SRAM NX Eagle Single Click |
| Speed | 12 |
| Rims | Syncros X-30S / 32H / 30mm / Sleeve Joint Tubeless ready |
| Front Hub | Formula CL-811 / 15x110mm |
| Rear Hub | Formula ECT-1481 / Boost 148x12mm |
| Spokes | Stainless Black |
| Front Tyre | Maxxis Assegai 29x2.6" 120TPI Kevlar Bead EXO+ / TR Tubeless ready 3C Maxx Terra |
| Rear Tyre | Maxxis Dissector 29x2.6" 120TPI Kevlar Bead EXO+ / TR Tubeless ready 3C Maxx Terra |
| Seat Post | FOX Transfer Dropper Post 31.6mm / S size 125mm / M size 150mm / L&XL size 175mm |
| Saddle | Syncros Tofino 1.5 Regular Titanium rails |
| Chainset | SRAM X1 1000 / 165mm / 34T |
| Bottom Bracket | Integrated |
| Chain | SRAM NX Eagle |
| Cassette | SRAM XG1275 / 10-52 T |
| Pedals | Resin Platform |
| Battery Size (WH) | PowerTube 625Wh |
| Motor | Bosch Performance CX EU: 25kmh / US: 20mph |
| User Interface | Bosch Purion |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Scott Ransom eRIDE 910 2021 - Electric Mountain Bike.
This product is no longer available.
