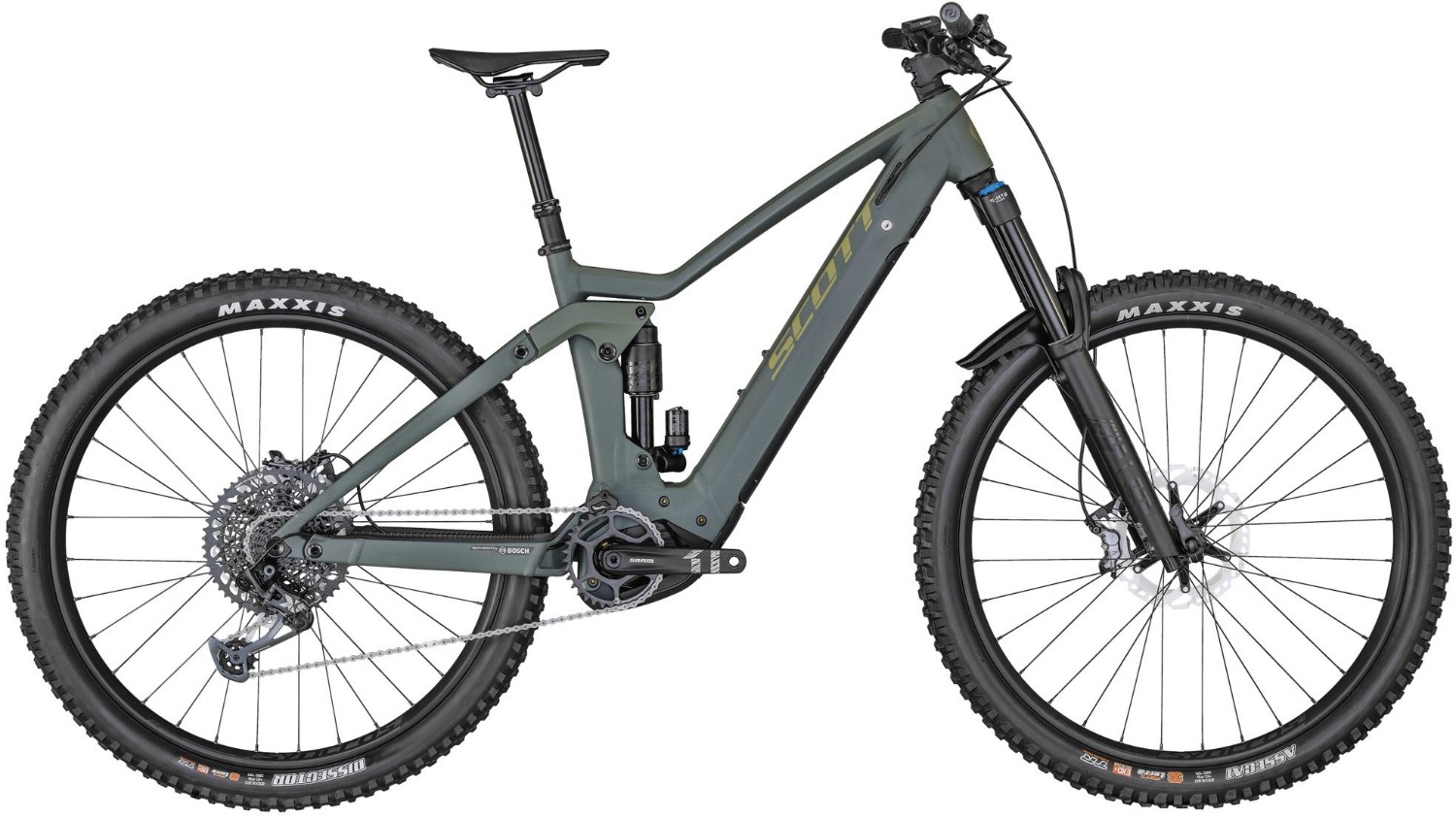

Scott Ransom eRIDE 910 2022 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Alloy Frame / Virtual 4 link kinematic VLK#27.5" and 29" compatible / geo adj. / Boost 148x12mm#180mm travel / Bosch Gen4 / Integr. removable Battery#Tapered Headtube E2, Central Kickstand Mount |
Fork | FOX 38 Performance Elite / Air / eMTB+#FIT Grip 2 / LSC-HSC / LSR-HSR / 15x110mm QR axle#tapered steerer / Reb. Adj. / 180mm travel#FOX fork fender |
Rear Shock | FOX Float X2 Performance / Air#LSC, LSR w/2-Pos. lever |
Headset | Acros Blocklock / Tapered 1.5"-1 1/8"#OD 52/62mm / ID 44/56mm |
Stem | Syncros XM1.5 / Alloy 6061#integrated Spacer & Top Cap / 31.8mm / 0° / 1 1/8" |
Bars | Syncros Hixon 1.5 Rise / Alloy 2014D.B.#20mm rise / 8° / 800mm#Syncros Pro lock-on grips |
Front Brake | Shimano XT / BR-M8120 4 Piston, Front: RT-MT800 CL 203mm / Rear: RT-EM800 CL 203mm |
Rear Brake | Shimano XT / BR-M8120 4 Piston, Front: RT-MT800 CL 203mm / Rear: RT-EM800 CL 203mm |
Rear Mech | SRAM X01 Eagle / 12 Speed |
Shifters | SRAM NX Eagle Single Click |
Speed | 12 |
Rims | Syncros MD30 / 32H / 30mm / Pin Joint#Tubeless ready |
Front Hub | Formula CL-811 / 15x110mm |
Rear Hub | Formula ECT-1481 / Boost 148x12mm |
Spokes | Stainless Black |
Front Tyre | Maxxis Assegai 29x2.6"#120TPI Foldable Bead#EXO+ / TR Tubeless ready#3C Maxx Terra |
Rear Tyre | Maxxis Dissector 29x2.6"#120TPI Foldable Bead#EXO+ / TR Tubeless ready#3C Maxx Terra |
Seat Post | FOX Transfer Dropper Post#31.6mm / S size 125mm / M size 150mm / L&XL size 175mm |
Saddle | Syncros Tofino 1.5 Regular#Titanium rails |
Chainset | SRAM X1 1000 / 165mm / 34T |
Chain | SRAM NX Eagle |
Cassette | SRAM XG1275 / 10-52 T |
Pedals | Resin Platform |
Battery Size (WH) | PowerTube 625Wh |
Motor | Bosch Performance CX#EU: 25kmh / INT: 20mph |
User Interface | Bosch Purion |
Electric Bike Bike Size Chart
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
