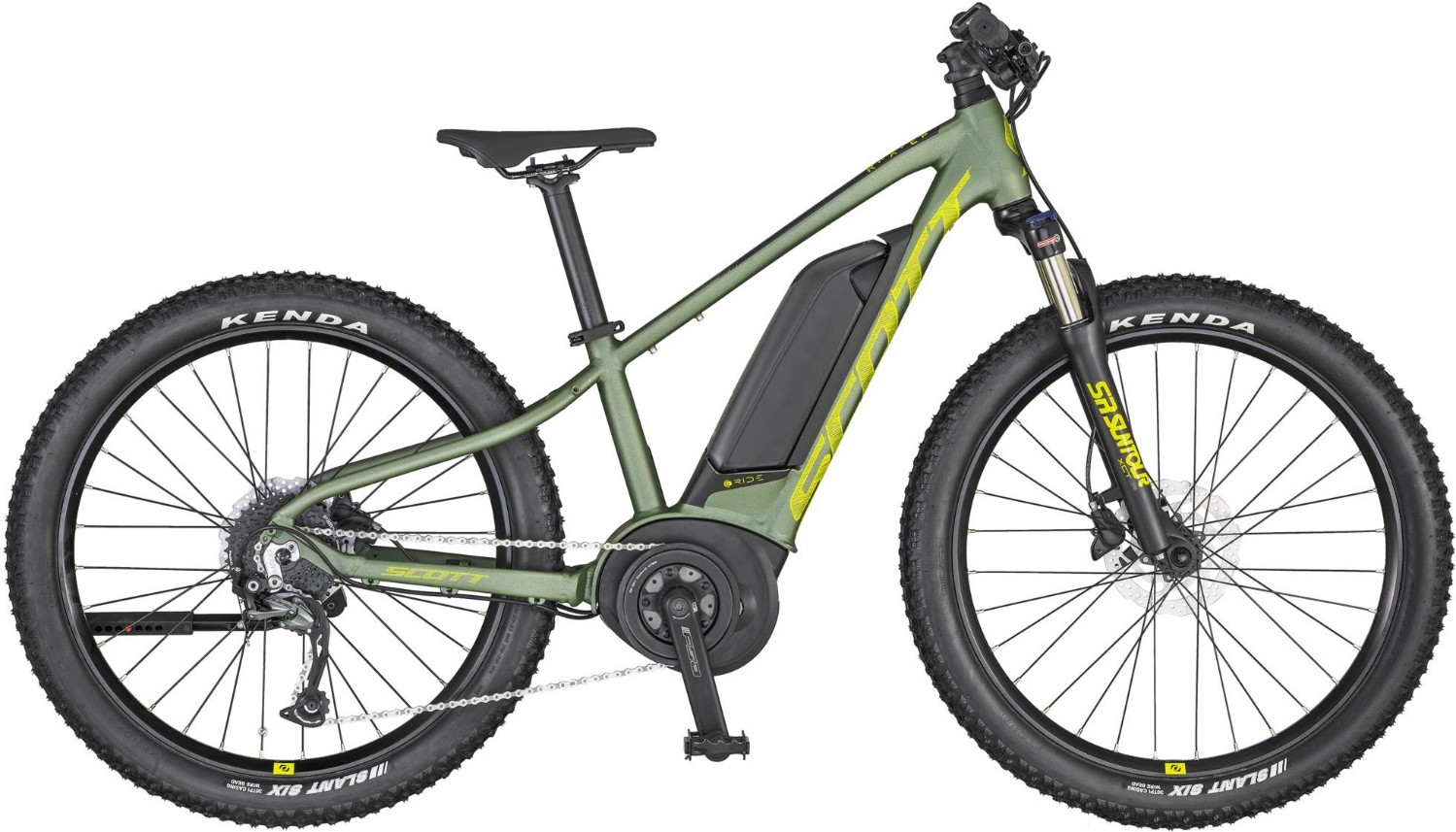

Scott Roxter eRIDE 24 2020 - Electric Hybrid Bike
Our response to those kids who want an extra boost, the Roxter eRIDE 24 is the perfect match. Fun, capable and most of all good looking, kids will be lining up to throw a leg over this one.
Key Features:
- Roxter eRIDE24 Alloy Frame
- SR Suntour XCT Plus / 70mm Fork
- Shimano Alivio / Altus 9 Speed
- Bosch Active 20km/h, 400WH, 2A
- Shimano Disc BR-MT200 Brakes
- Kenda K1080 26x2.6 Tires
- Syncros Parts
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Roxter eRide 24" one Size 32cm | 6061 Alloy custom butted tubing - internal cable routing | 135mm QR drop out w- Kickstand mount |
| Fork | SR Suntour XCT Plus NLO | Air | 70mm Travel | Lockout | QR10x110 |
| Headset | GW ZS 44 semi integrated |
| Stem | Syncros 50mm |
| Bars | Syncros | 31.8 | flat top | 9° backsweep | 620mm - Syncros Youtbh Pro 100 Grip |
| Front Brake | Shimano BR-MT200 - 160mm SM-RT10 CL Rotor |
| Rear Brake | Shimano BR-MT200 - 160mm SM-RT10 CL Rotor |
| Rear Mech | Shimano Alivio RD-M400 SGS |
| Shifters | Shimano Altus SL-M200R |
| Speed | 9 |
| Rims | Rodi Tryp 30 24" 32H |
| Front Hub | Formula CL 2510 | Boost 5x110mm QR |
| Rear Hub | Shimano FH-TX505 | 5x135mm OR |
| Spokes | Stainless Black |
| Front Tyre | Kenda K1080 26x2.60" |
| Rear Tyre | Kenda K1080 26x2.60" |
| Seat Post | Syncros 31.6 | 250mm | 0 offset |
| Saddle | Syncros JR FL |
| Chainset | FSA CK-400 MTB 155mm | FSA 32T w. bash guard |
| Chain | KMC X9 |
| Cassette | Shimano HG200-9 11-34T |
| Pedals | VP-900S |
| Battery Size (WH) | 400wh |
| Motor | Bosch Active 250w |
| User Interface | Purion Display |
Roxter Sizing
See the table below to find the right size Scott Roxter.
|
Body Height |
< 165cm |
165-175cm |
175-185cm |
185cm-195cm |
>195cm |
|
Size |
Extra Extra Small / Extra Small / Small |
Extra Small / Small /Medium |
Medium / Large |
Large / Extra Large / Extra Extra Large |
Extra Extra Large |
Read our bike size guide for more information on sizing
Roxter Geometry
|
|
XS |
|
S |
|
M |
|
|
Head Tube Angle |
69.5 |
|
70 |
|
70.5 |
|
|
Head Tube Length |
105mm |
4.1in |
115mm |
4.5in |
130mm |
5.1in |
|
Top Tube Horizontal |
545mm |
21.5in |
555mm |
21.9in |
570mm |
22.4in |
|
Standover Height |
709.7mm |
27.9in |
738.7mm |
29.1in |
775.5mm |
30.5in |
|
BB Offset |
-32mm |
-1.3in |
-32mm |
-1.3in |
-32mm |
-1.3in |
|
BB Height |
307mm |
12.1in |
307mm |
12.1in |
307mm |
12.1in |
|
Wheelbase |
1,055mm |
41.5in |
1,055mm |
41.5in |
1,061mm |
41.8in |
|
BB Centre To Toptube Centre |
296mm |
11.7in |
336mm |
13.2in |
386mm |
15.2in |
|
BB Centre to top of Seat tube |
350mm |
13.8in |
390mm |
15.4in |
440mm |
17.3in |
|
Seat Angle |
74.5 |
|
74 |
|
73.5 |
|
|
Chainstay |
427mm |
16.8in |
427mm |
16.8in |
427mm |
16.8in |
|
Reach |
389.9mm |
15.4in |
391.3mm |
15.4in |
396.1mm |
15.6in |
|
Stack |
559.4mm |
22in |
570.9mm |
22.5in |
587.1mm |
23.1in |
|
Stem Length |
50mm |
2in |
60mm |
2.4in |
60mm |
2.4in |
