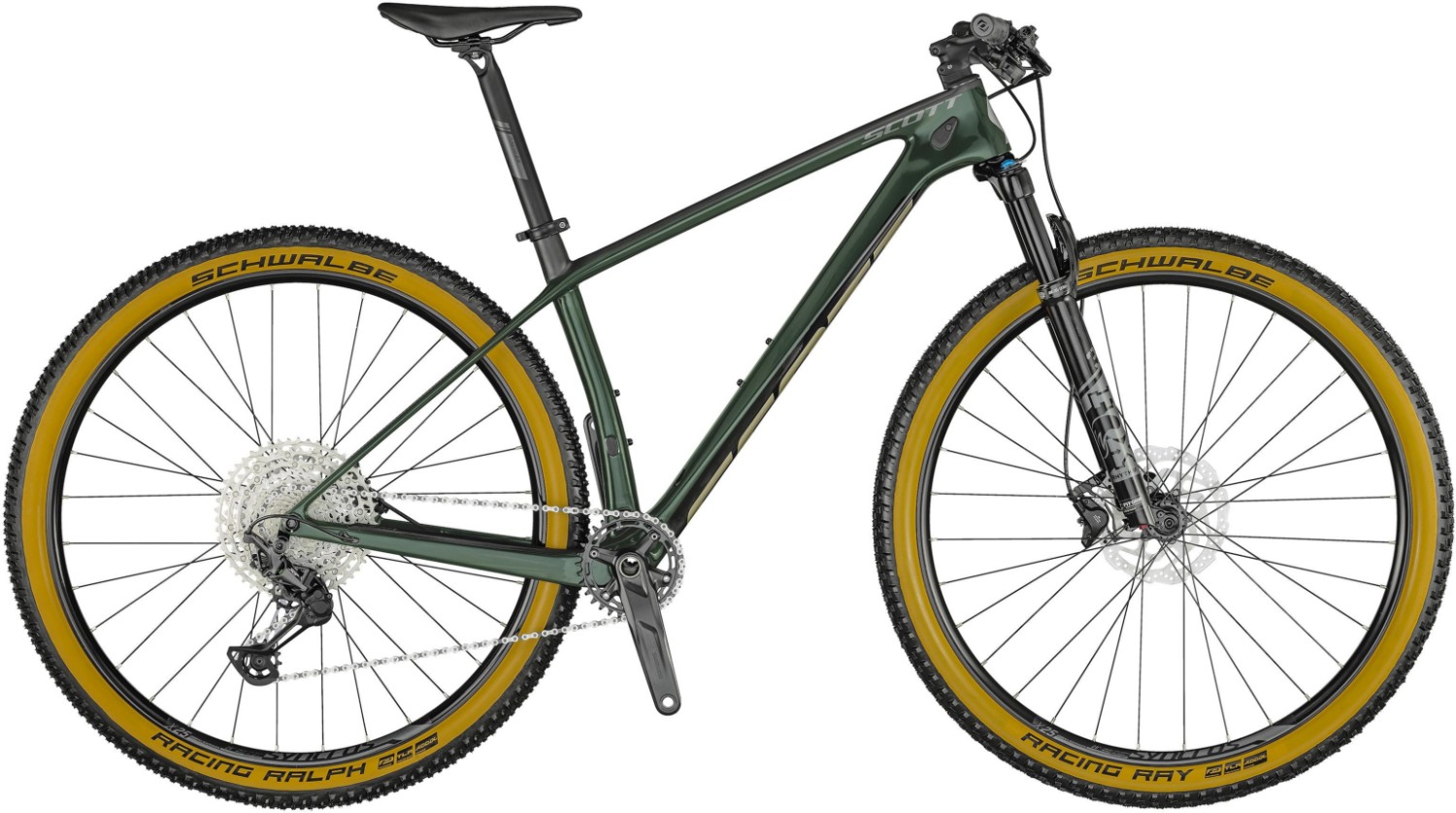

Scott Scale 930 29" Mountain Bike 2022 - Hardtail MTB

Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Scale 3 Carbon / IMP Technology / HMF BB92 / SW DM dropouts for Boost 12x148mm SDS2 advanced Shock & Standing Damping System ICCR Cable routing |
| Fork | FOX 32 Float Rhythm Grip 3 3-Modes / 15x110mm QR axle / 44mm offset / tapered steerer Reb. Adj. / Lockout / 100mm travel |
| Headset | Syncros Pro Drop in / Tapered 1.5"-1 1/8" Bearing diameter size 42mm and 52mm |
| Stem | Syncros FL2.0 6° / integrated Spacer & Top Cap 6061 Alloy / 31.8mm / 1 1/8" |
| Bars | Syncros Fraser 2.0 / Alloy 6061 T shape Flat / 9° / 740mm Syncros Pro lock-on grips |
| Front Brake | Shimano MT401 Disc 180mm |
| Rear Brake | Shimano MT401 Disc 160mm |
| Rear Mech | Shimano XT RD-M8100 SGS Shadow Plus / 12 Speed |
| Shifters | Shimano Deore SL-M6100-R / Rapidfire Plus |
| Speed | 12 |
| Rims | Syncros X-25 / 32H / 25mm Tubeless ready |
| Front Hub | Formula CL-811 / 15x110mm |
| Rear Hub | Shimano FH-MT410-B CL / Boost 12x148mm / Micro Spline |
| Spokes | Stainless Black 15G / 1.8mm |
| Front Tyre | Schwalbe Racing Ray 29x2.25" / Preformance Folding / Addix / TLE Tubeless ready |
| Rear Tyre | Schwalbe Racing Ralph 29x2.25" / Preformance Folding / Addix / TLE Tubeless ready |
| Seat Post | Syncros Duncan 2.0 / 10mm offset 31.6x400mm |
| Saddle | Syncros Belcarra Regular 2.5 |
| Chainset | Shimano FC-MT511-1 32T |
| Bottom Bracket | Shimano BB-MT500 / shell 41x92mm |
| Chain | KMC X12 |
| Cassette | Shimano Deore CS-M6100-12 / 10-51 T |
| Pedals | Basic Resin Flats |
![]()
Scott Scale 2022 Size Chart
|
Size |
Height (cm) |
Height (in) |
|
S |
160-172 |
5’4”- 5’8” |
|
M |
170-180 |
5’7”- 5’11” |
|
L |
178-187 |
5’10”- 6’2” |
|
XL |
184-197 |
6’0” - 6’5” |
What size frame do I need if I am between sizes? - read here
Scott Scale 2022 Geometry Chart
|
Size |
S |
M |
L |
XL |
|
Head Tube Angle |
69.5 ° |
69.5 ° |
69.5 ° |
69.5 ° |
|
Head Tube Length |
95.0 MM |
100.0 MM |
115.0 MM |
125.0 MM |
|
Top Tube Horizontal |
575.0 MM |
600.0 MM |
625.0 MM |
650.0 MM |
|
Standover Height |
743.0 MM |
774.0 MM |
800.0 MM |
835.1 MM |
|
BB Offset |
-58.0 MM |
-58.0 MM |
-58.0 MM |
-58.0 MM |
|
BB Height |
312.0 MM |
312.0 MM |
312.0 MM |
312.0 MM |
|
Wheelbase |
1,076.4 MM |
1,101.8 MM |
1,127.9 MM |
1,153.7 MM |
|
BB Centre To Top Tube Centre |
325.0 MM |
375.0 MM |
415.0 MM |
465.0 MM |
|
BB Centre To Top Of Seat Tube |
390.0 MM |
440.0 MM |
480.0 MM |
530.0 MM |
|
Seat Angle |
73.6 ° |
73.6 ° |
73.6 ° |
73.6 ° |
|
Chainstay |
425.0 MM |
425.0 MM |
425.0 MM |
425.0 MM |
|
Reach |
398.7 MM |
422.3 MM |
443.2 MM |
465.5 MM |
|
Stack |
599.0 MM |
603.6 MM |
617.7 MM |
627.1 MM |
|
Stem Length |
60.0 MM |
70.0 MM |
80.0 MM |
90.0 MM |
|
Trail |
83.9 MM |
83.9 MM |
83.9 MM |
83.9 MM |
