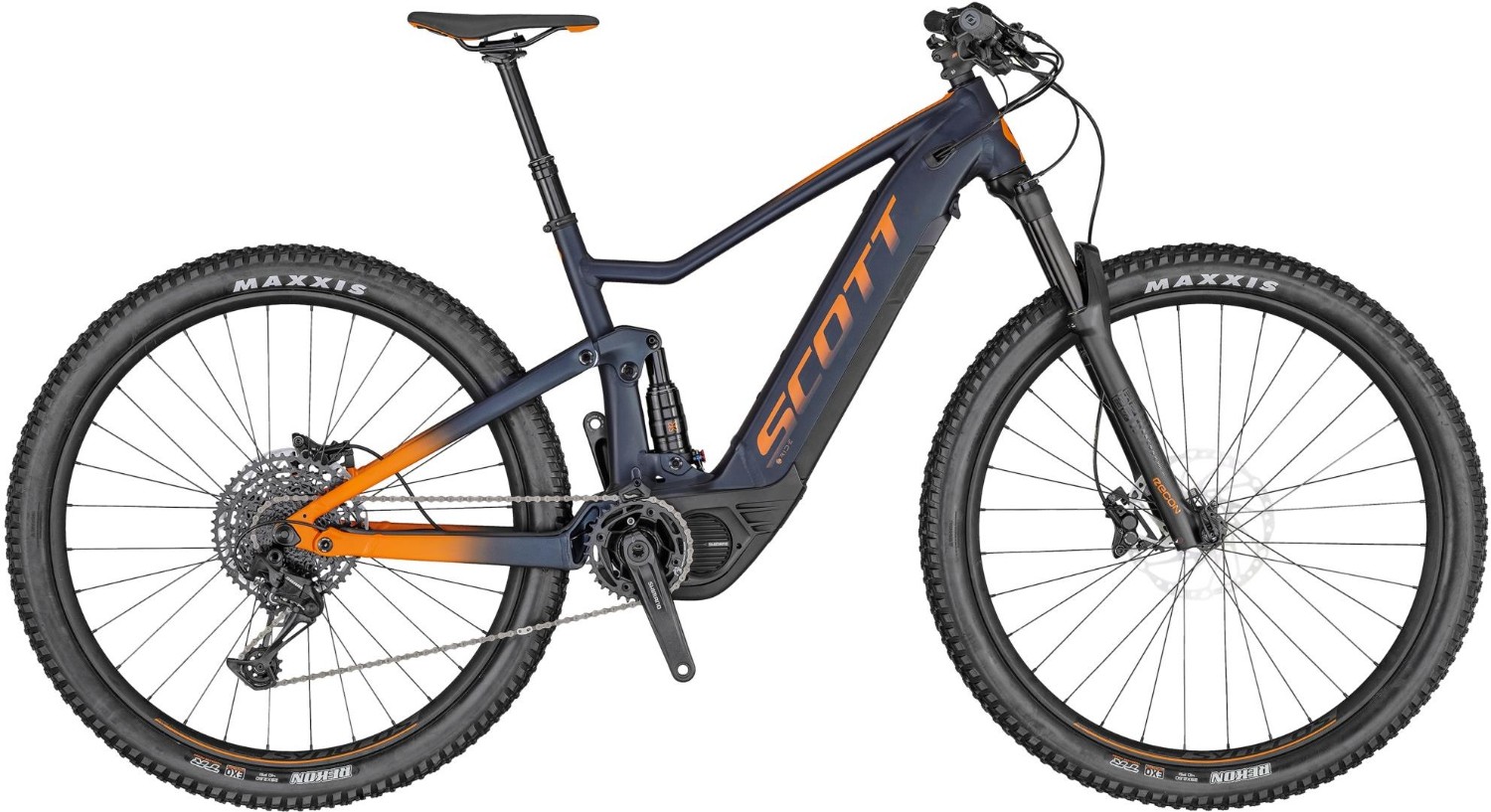

Scott Spark eRIDE 920 2020 - Electric Mountain Bike
The Scott Spark eRIDE 920 is perfect if you like to go on long rides and challenge steep climbs without too much compromise on the downhills. Proven Shimano electric assist technology helps to create a capable off-road package.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Alloy Frame | Virtual 4 link kinematic VLK - 27.5" and 29" compatible | geo adj. | Boost 148x12mm - 120mm travel | Shimano E-8000 integr. DT Battery - Tapered Headtube E2, Central Kickstand Mount |
| Fork | RockShox Recon RL Solo Air - 15x110mm QR axle | Tapered Steerer - Reb. Adj. | 2 Modes | Lockout | 130mm travel | E-Bike |
| Rear Shock | X-Fusion NUDE Trunnion - SCOTT custom w. travel | geo adj. - 3 modes: Lockout-Traction Control -Descend - Reb. Adj. - Travel 120-85-Lockout | 165X45mm |
| Headset | Syncros OE Press Fit E2 | Tapered 1.5"-1 1/8" - OD 50/62mm | ID 44/56mm |
| Stem | Syncros FL2.0 | 6061 Alloy - integrated Top Cup | 31.8mm | 6° | 1 1/8" |
| Bars | Syncros FL2.0 Steps mini Riser | Alloy 6061D.B. - 12mm rise | 9° | 760mm - Syncros Pro lock-on grips |
| Front Brake | Shimano BR-MT420 4 Piston Disc - 203mm CL Rotor SM-RT30 |
| Rear Brake | Shimano BR-MT420 4 Piston Disc - 203mm CL Rotor RT-EM300 |
| Brake Lever | Shimano BL-MT401 |
| Rear Mech | SRAM SX Eagle | 12 Speed |
| Shifters | SRAM SX Eagle Single Click |
| Speed | 12 |
| Rims | Syncros X-30S | 32H | 30mm | Sleeve Joint - Tubeless ready |
| Front Hub | Shimano HB-MT400-B CL | 15x110mm |
| Rear Hub | Shimano FH-MT400-B CL | Boost 12x148mm |
| Spokes | Stainless Black |
| Front Tyre | Maxxis Rekon | 29x2.6" | 60TPI Kevlar Bead - EXO | TR Tubeless ready | Dual |
| Rear Tyre | Maxxis Rekon | 29x2.6" | 60TPI Kevlar Bead - EXO | TR Tubeless ready | Dual |
| Seat Post | Syncros Duncan Dropper 2.5 Remote - 31.6mm | S size 100mm | M 125mm | L & XL 150mm |
| Saddle | Syncros Tofino 2.5 Regular |
| Chainset | Shimano STEPS FC-E8000 | 165mm | 34T |
| Chain | SRAM SX Eagle |
| Cassette | SRAM PG1210 | 11-50 T |
| Pedals | Basic Resin Flat |
| Battery Size (WH) | 500wh |
| Motor | SHIMANO STEPS E8000 |
| User Interface | SC-E7000 Display |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
