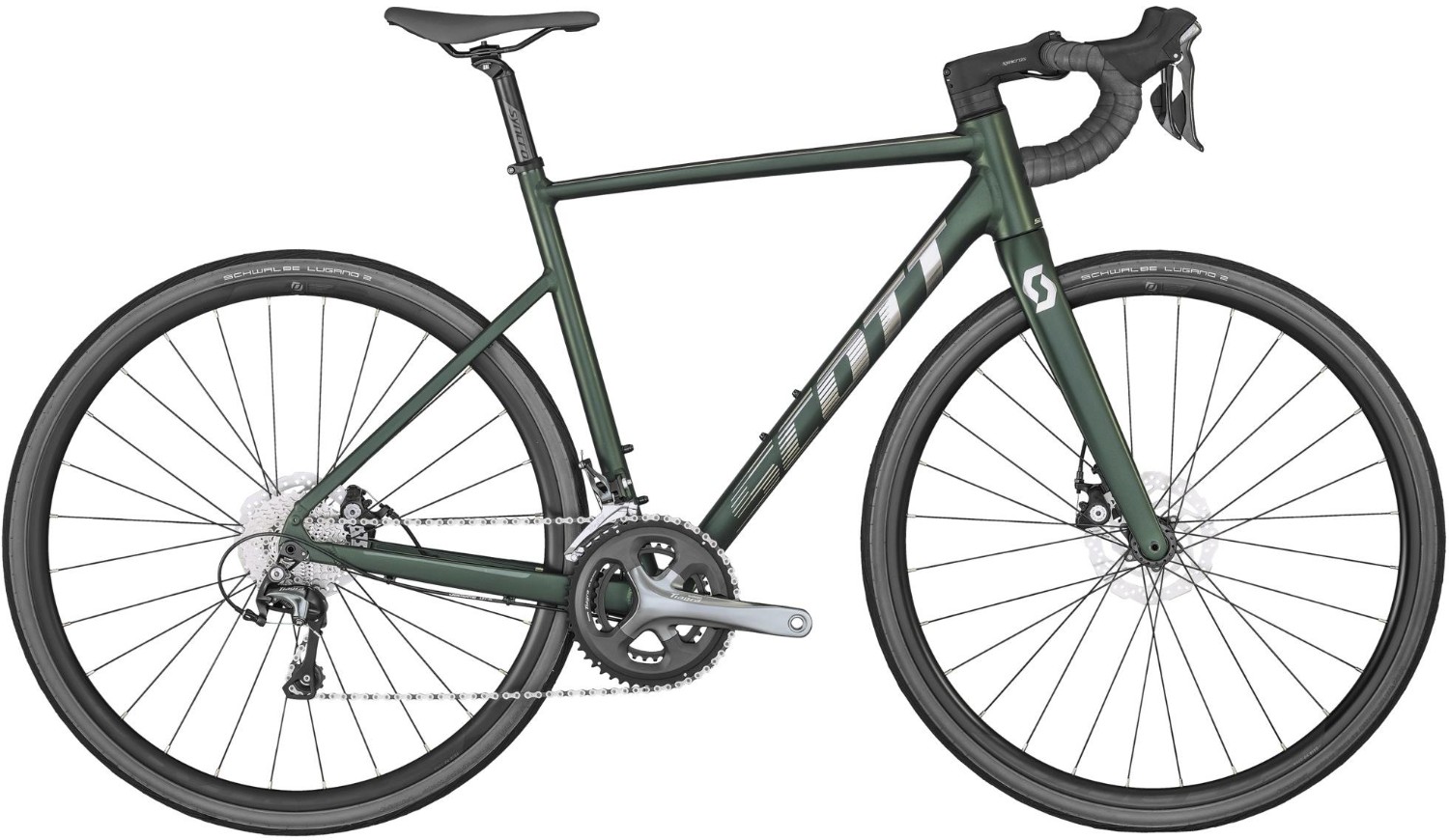

Scott Speedster 20 2023 - Road Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Speedster Disc / 6061 D.Butted Alloy#Endurance geometry / int. cable routing#Syncros fender kit ready |
| Fork | Speedster HMF Disc#1 1/4"-1 1/2" Eccentric Carbon steerer |
| Headset | Acros AIF-1113 |
| Stem | Syncros RR2.5#1 1/4" / four Bolt 31.8mm |
| Bars | Syncros Creston 2.0 Compact#31.8mm |
| Front Brake | Shimano BR-RS305 Black Mech.Disc, Shimano SM-RT64 rotor 160/F and 160/R |
| Rear Brake | Shimano BR-RS305 Black Mech.Disc, Shimano SM-RT64 rotor 160/F and 160/R |
| Front Mech | Shimano Tiagra FD-4700 |
| Rear Mech | Shimano Tiagra RD-4700-GS#20 Speed |
| Shifters | Shimano Tiagra ST-4700#Dual control 20 Speed |
| Speed | 20 |
| Rims | Syncros Race 24 Disc#28 Front / 28 Rear |
| Front Hub | Formula Team II CL Disc 28 H |
| Rear Hub | Formula Team II CL Disc 28 H |
| Spokes | Black 2mm |
| Front Tyre | Schwalbe Lugano#700x32C |
| Rear Tyre | Schwalbe Lugano#700x32C |
| Seat Post | Syncros RR2.5 27.2/350mm |
| Saddle | Syncros Tofino Regular 2.5 |
| Chainset | Shimano Tiagra FC-4700#Hyperdrive 50x34 T |
| Bottom Bracket | Shimano BB-RS500-PB |
| Chain | KMC X10 |
| Cassette | Shimano CS-HG500#10 Speed 11-32 T |
| Pedals | Resin Platform |
Scott Speedster Size Chart
|
Frame Size |
Height (cm) |
Height (in) |
|
XXS - 47cm |
< 162 |
< 5' 3" |
|
XS - 49cm |
154 - 167 |
5' 0" - 5' 7" |
|
S - 52cm |
163 -173 |
5' 4" - 5' 8" |
|
M - 54cm |
170 - 179 |
5' 7" - 5' 10" |
|
L - 56cm |
177 - 187 |
5' 9" - 6' 1" |
|
XL - 58cm |
185 - 197 |
6' 0" - 6' 5" |
|
XXL - 61cm |
> 193 |
> 6' 4" |
What size frame do I need if I am between sizes? - read here
Scott Speedster Geometry Chart
|
|
XXS |
XS |
S |
M |
L |
XL |
XXL |
|
Head Tube Angle |
70.5 ° |
71.0 ° |
72.0 ° |
72.5 ° |
73.0 ° |
73.3 ° |
73.3 ° |
|
Head Tube Length (mm) |
111.0 |
121.0 |
141.0 |
161.0 |
181.0 |
201.0 |
221.0 |
|
Top Tube Horizontal (mm) |
505.0 |
515.0 |
530.0 |
545.0 |
560.0 |
575.0 |
590.0 |
|
Standover Height (mm) |
725.3 |
741.1 |
767.5 |
787.5 |
807.5 |
827.1 |
851.4 |
|
BB Offset (mm) |
-67.0 |
-67.0 |
-67.0 |
-67.0 |
-67.0 |
-67.0 |
-67.0 |
|
BB Height (mm) |
282.0 |
282.0 |
282.0 |
282.0 |
282.0 |
282.0 |
282.0 |
|
Wheelbase (mm) |
973.1 |
979.4 |
981.2 |
986.8 |
991.6 |
999.0 |
1,012.7 |
|
BB Centre To Top Tube Centre (mm) |
410.0 |
430.0 |
460.0 |
480.0 |
500.0 |
520.0 |
550.0 |
|
BB Centre To Top of Seat Tube (mm) |
470.0 |
490.0 |
520.0 |
540.0 |
560.0 |
580.0 |
610.0 |
|
Seat Angle |
75.0° |
75.0 ° |
74.5 ° |
74.0 ° |
73.5 ° |
73.1 ° |
73.0 ° |
|
Chainstay Length (mm) |
415.0 |
415.0 |
415.0 |
415.0 |
415.0 |
415.0 |
415.0 |
|
Reach (mm) |
366.6 |
373.5 |
377.3 |
381.2 |
384.6 |
389.0 |
397.0 |
|
Stack (mm) |
516.7 |
527.9 |
550.5 |
571.3 |
592.3 |
612.5 |
613.6 |
