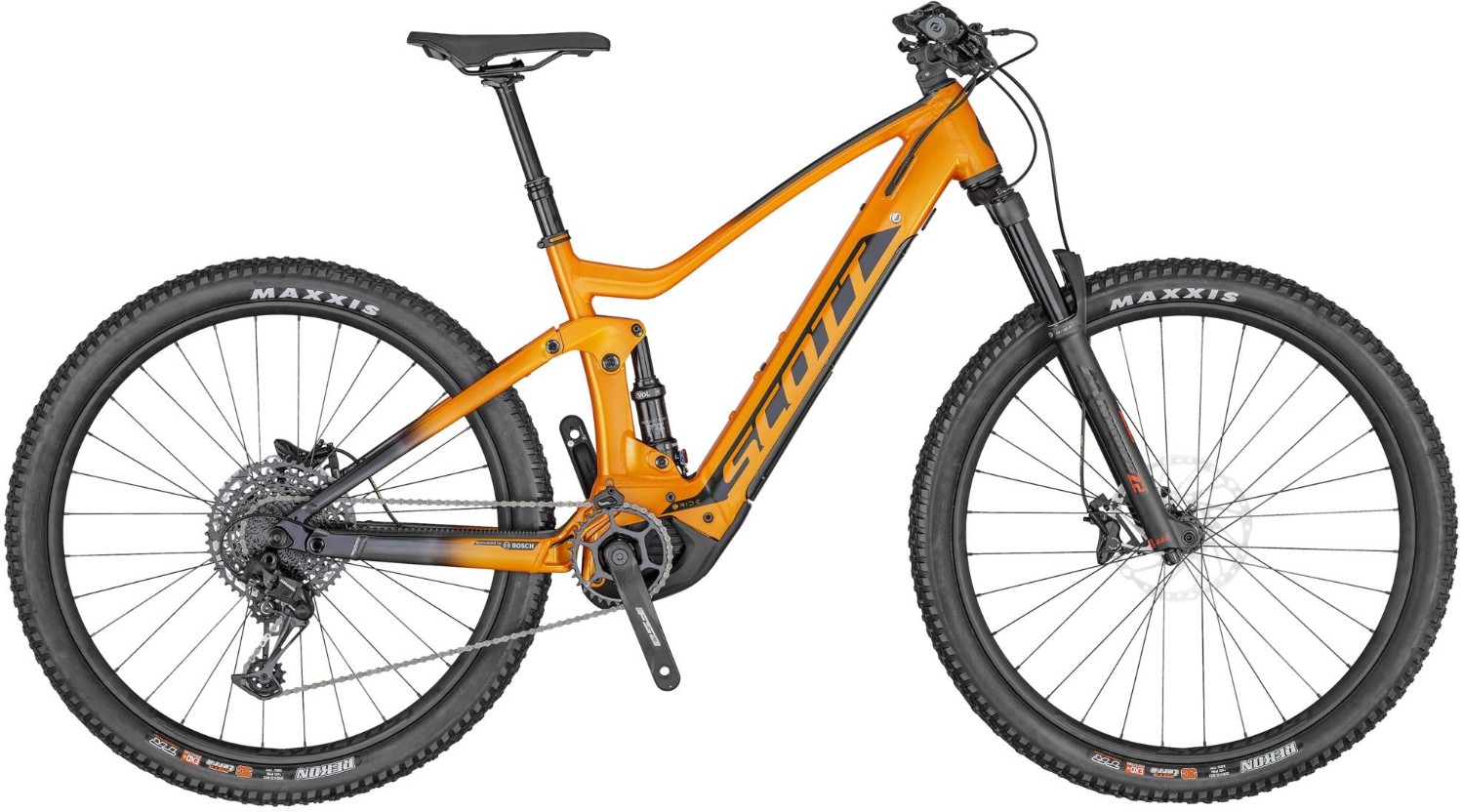

Scott Strike eRIDE 920 2020 - Electric Mountain Bike
Looking to head off road? With a completely new design, the Scott Strike eRIDE 920 is the definition of comfort for a full suspension e-MTB. State of the art integration, proven components and the brand-new Bosch electric mountain bike drive unit combine to give you a solid choice for any outing.
Key Features:
- Aluminium alloy frame with custom suspension adjustment
- Marzocchi Z2 Air fork offers 140mm of suspension travel
- FOX Float EVOL Performance Shock controls the 140mm of rear wheel travel
- SRAM SX Eagle 12 speed drivetrain for a wide gear range
- Shimano four piston disc brakes for powerful stopping power
- Sizes: Small, Medium, Large, X Large
- Colours: Orange
- The Scott Strike ERIDE 920 is available with 0% APR finance
Drive information:
- Motor: Bosch Performance CX, 75Nm
- Battery: Bosch 625Wh downtube integrated battery pack
- User Interface / Display: Bosch Purion
Highlights:
- Strike eRIDE Alloy Frame
- Marzocchi Z2 Air 140mm Fork
- FOX Float EVOL, 140mm, TwinLoc
- SRAM SX Eagle 12 Speed
- Bosch CX, up to 1125Wh, PowerTube
- Shimano 4 Piston Disc Brakes
- Maxxis Rekon Kevlar Tires
- Syncros Dropper Post and Parts
- Bosch Light Cable pre-installed F&R
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Alloy Frame | Virtual 4 link kinematic VLK - 27.5" and 29" compatible | geo adj. | Boost 148x12mm - 140mm travel | Bosch Gen4 | integr. DT Battery - Tapered Headtube E2/Forklock, Central Kickstand Mount - Range Extender Ready |
| Fork | Marzocchi Z2 Air - Rail 3 | 3-Modes | 15x110mm QR axle | tapered steerer - 44mm offset | Reb. Adj. | Lockout | 140mm travel | E-Bike |
| Rear Shock | FOX Float EVOL Performace Trunnion - 3 modes | Lockout-Trail-Descend - DPS | Reb. Adj. - Travel 140mm | 185x50mm |
| Headset | Syncros FL2.0 Press Fit E2 | Tapered 1.5"-1 1/8" - OD 50/62mm | ID 44/56mm |
| Stem | Syncros FL2.0 | 6061 Alloy - integrated Spacer & Top Cup | 31.8mm | 6° | 1 1/8" |
| Bars | Syncros Hixon 2.0 Rise | Alloy 6061D.B. - 20mm rise | 8° | 760mm - Syncros Comfort lock-on grips |
| Front Brake | Shimano BR-MT520 4 Piston Disc - 203mm CL Rotor SM-RT64 |
| Rear Brake | Shimano BR-MT520 4 Piston Disc - 203mm CL Rotor RT-EM600 |
| Brake Lever | Shimano BL-MT501 |
| Rear Mech | SRAM SX Eagle | 12 Speed |
| Shifters | SRAM SX Eagle Single Click |
| Speed | 12 |
| Rims | Syncros X-30S | 32H | 30mm | Sleeve Joint - Tubeless ready |
| Front Hub | Shimano HB-MT400-B CL | 15x110mm |
| Rear Hub | Shimano FH-MT400-B CL | Boost 12x148mm |
| Spokes | Stainless Black |
| Front Tyre | Maxxis Rekon | 29x2.6" | 120TPI Kevlar Bead - EXO+ | TR Tubeless ready - 3C Maxx Terra |
| Rear Tyre | Maxxis Rekon | 29x2.6" | 120TPI Kevlar Bead - EXO+ | TR Tubeless ready - 3C Maxx Terra |
| Seat Post | Syncros Duncan Dropper 2.5 Remote - 31.6mm | S size 100mm | M 125mm | L & XL 150mm |
| Saddle | Syncros ER2.0 |
| Chainset | FSA CK-745 | 165mm | 34T |
| Chain | SRAM SX Eagle |
| Cassette | SRAM PG1210 | 11-50 T |
| Pedals | Basic Resin Flat |
| Battery Size (WH) | 625wh |
| Motor | Bosch Performance CX |
| User Interface | Purion Display |
Scott Strike eRide Bike Sizing
Frame Size
S
5'4"
5'8"
M
5'7"
5'11"
L
5'10"
6'2"
XL
6'0"
6'5"
Read our bike size guide for more information on sizing.
Scott Strike eRide Geometry
|
S / 900 |
S / 700 |
M / 900 |
M / 700 |
L / 900 |
L / 700 |
Xl / 900 |
Xl / 700 |
|
|
Low bb setting |
High bb setting |
Low bb setting |
High bb setting |
Low bb setting |
High bb setting |
Low bb setting |
High bb setting |
|
|
Head tube angle mm |
64.8 ° |
65.4 ° |
64.8 ° |
65.4 ° |
65.0 ° |
65.6 ° |
65.0 ° |
65.6 ° |
|
Head tube length mm |
120.0 |
120.0 |
125.0 |
125.0 |
135.0 |
135.0 |
145.0 |
145.0 |
|
Top tube horizontal mm |
585.0 |
583.4 |
605.0 |
603.4 |
635.0 |
633.3 |
665.0 |
663.3 |
|
Standover height mm |
762.4 |
748.8 |
766.6 |
753.3 |
798.1 |
785.4 |
809.8 |
797.4 |
|
Bb offset mm |
-30.0 |
-22.1 |
-30.0 |
-22.1 |
-30.0 |
-22.0 |
-30.0 |
-21.9 |
|
Bb height mm |
347.0 |
337.9 |
347.0 |
337.9 |
347.0 |
338.0 |
347.0 |
338.1 |
|
Wheelbase mm |
1,215.2 |
1,213.7 |
1,236.1 |
1,234.6 |
1,258.4 |
1,256.9 |
1,290.2 |
1,288.7 |
|
Seat tube mm |
410.0 |
410.0 |
440.0 |
440.0 |
490.0 |
490.0 |
540.0 |
540.0 |
|
Seat angle mm |
75.4 ° |
76.0 ° |
75.4 ° |
76.0 ° |
74.8 ° |
75.4 ° |
74.8 ° |
75.4 ° |
|
Chainstay mm |
465.0 |
462.8 |
465.0 |
462.8 |
465.0 |
462.8 |
465.0 |
462.8 |
|
Reach mm |
421.8 |
428.3 |
440.6 |
447.1 |
460.7 |
467.2 |
488.3 |
494.7 |
|
Stack mm |
626.6 |
622.2 |
631.2 |
626.6 |
641.4 |
636.7 |
650.4 |
645.6 |
|
Stem length mm |
50.0 |
50.0 |
50.0 |
50.0 |
60.0 |
60.0 |
70.0 |
70.0 |
|
Trail mm |
128.8 |
120.2 |
128.8 |
120.2 |
127.2 |
118.8 |
127.2 |
118.8 |
