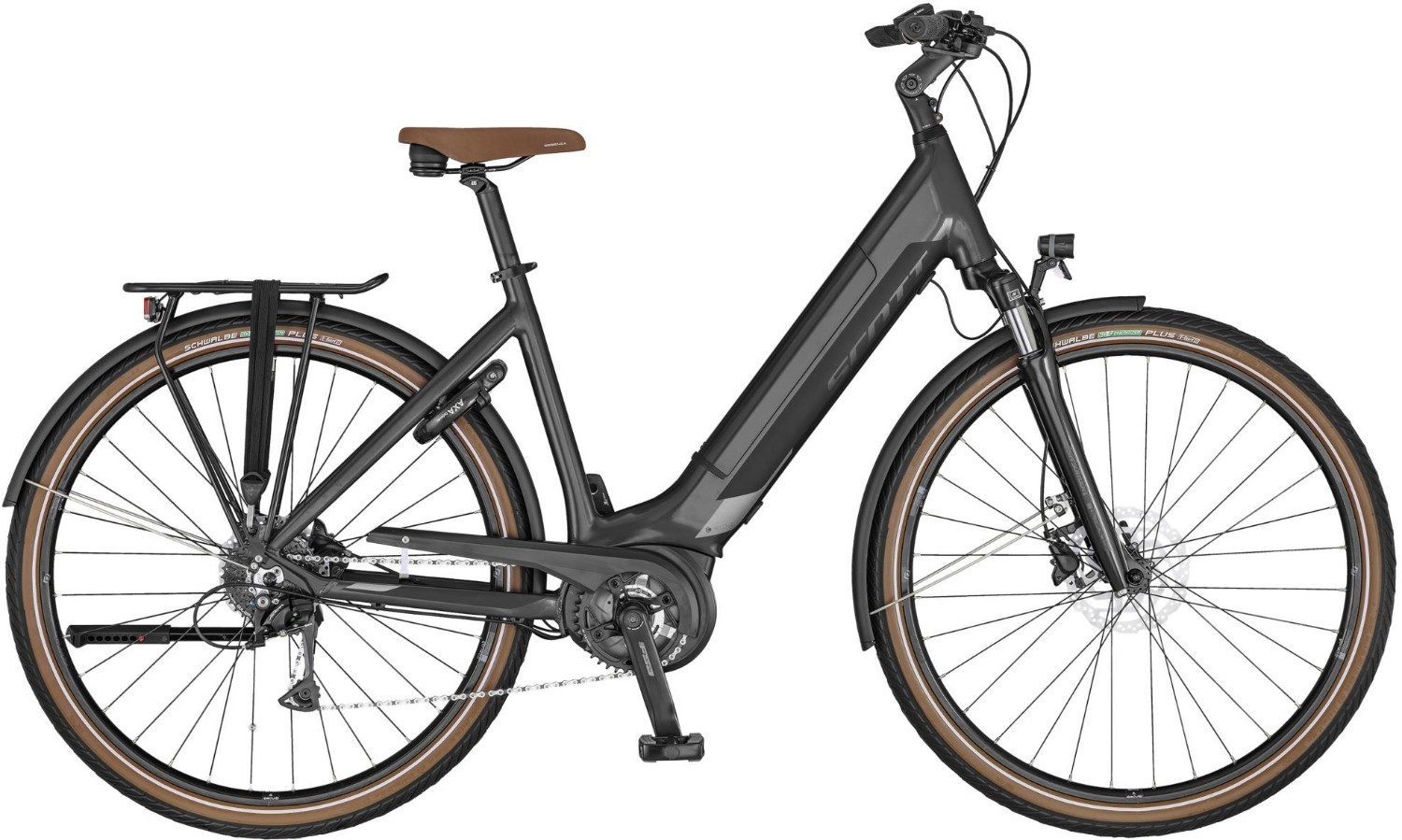

Scott Sub Active eRIDE 2020 - Electric Hybrid Bike
The Sub Active eRIDE 10 Unisex provides outstanding comfort. Thanks to the wide saddle and the high cockpit, never feel uncomfortable on your bike. The drop of the downtube also makes getting on or off your bike as easy as can be while the lights and the rack make it city ready.
Key Features:
- Sub eRIDE 6061 Alloy
- Suntour NEX-E25, 63mm Fork
- Shimano Acera 3000 9 Speed
- Bosch Performance, 400Wh PowerPack
- Shimano Disc Brakes
- Weldon with spring
- Schwalbe Energizer Plus 700x50c
- Selle Royal Essenza saddle
- Fr Spanninga Axendo, Re Solo
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Sub eRIDE 6061 Alloy |
| Fork | SUNTOUR NEX-E25 DS QR 700C STEEL TAPERED | 63mm Travel |
| Headset | GW semi integrated |
| Stem | Syncros UC 3.0 adjustable |
| Bars | Syncros UC3.0 680mm | Rise 12mm/ backsweep 15° |
| Front Brake | Shimano BR-M200 Disc |
| Rear Brake | Shimano BR-M200 Disc |
| Brake Lever | Shimano BR-M200 Disc |
| Rear Mech | Shimano Acera 3000 9 Speed |
| Shifters | Shimano Acera 3000 9 Speed |
| Speed | 9 |
| Rims | Mach1 MAXX 29" ETRTO 622x25C ETR Black Anodized with eyelets * 32H |
| Front Hub | Shimano HB-TX50 CL |
| Rear Hub | Shimano FH-TX50 CL |
| Spokes | BLACK spokes * F: 14G/ R: 13G |
| Front Tyre | Schwalbe Energizer Plus 700x50c |
| Rear Tyre | Schwalbe Energizer Plus 700x50c |
| Seat Post | Syncros 3.0 | 31.6mm | 350mm |
| Saddle | Selle Royal Essenza |
| Chainset | FSA CK200 |
| Chain | KMC E9s NPBK |
| Cassette | Shimano CS HG20 11-34 |
| Pedals | Syncros SP-828 |
| Battery Size (WH) | 400wh |
| Motor | Bosch Active 250w System |
| User Interface | Purion Display |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Scott Sub Active eRIDE 2020 - Electric Hybrid Bike.
This product is no longer available.
