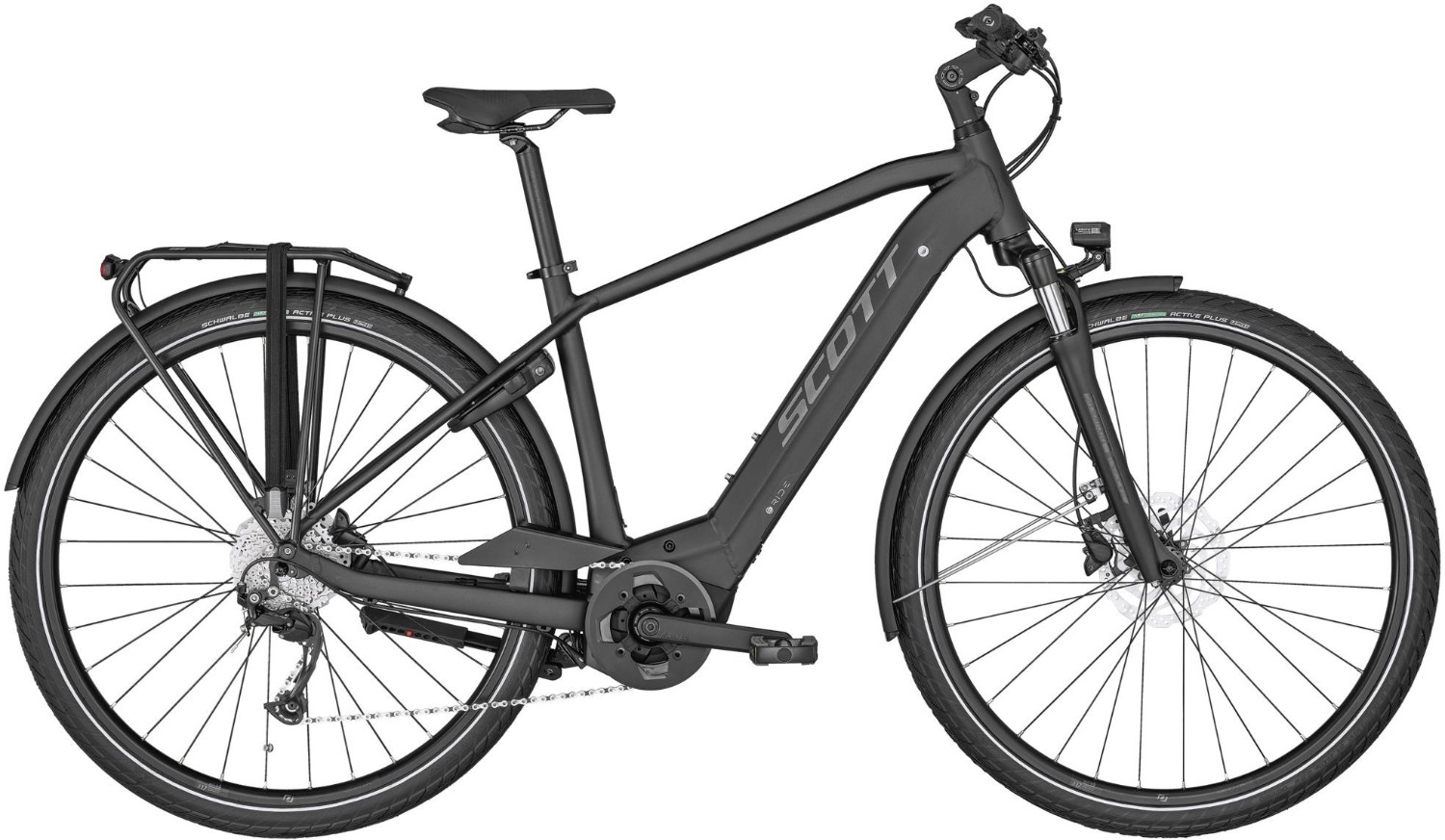

Scott Sub Tour eRIDE 30 2022 - Electric Hybrid Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Sub eRIDE 6061 Alloy |
| Fork | SUNTOUR NEX-E25 DS QR 700C STEEL TAPERED / 63mm Travel |
| Headset | GW semi integrated |
| Stem | Syncros UC 3.0 adjustable |
| Bars | Syncros UC3.0 680mm / 10° bend |
| Front Brake | Shimano BR-M200 Disc, |
| Rear Brake | Shimano BR-M200 Disc, |
| Brake Lever | Shimano BR-M200 Disc |
| Rear Mech | Shimano Alivio 3100 9 Speed |
| Shifters | Shimano Alivio 3100 9 Speed |
| Speed | 9 |
| Rims | Cross X17 Disc 32h |
| Front Hub | Shimano HBMT200B 32H QR CL |
| Rear Hub | Shimano FHMT200B 32H QR CL |
| Spokes | BLACK spokes * F: 14G/ R: 13G |
| Front Tyre | Schwalbe Energizer Active Plus 700x50c |
| Rear Tyre | Schwalbe Energizer Active Plus 700x50c |
| Seat Post | Syncros 3.0 / 31.6mm / 350mm |
| Saddle | Selle Royale Essenza |
| Chainset | Miranda 172,5MM |
| Chain | KMC E9s NPBK |
| Cassette | Shimano CS HG400 11-36 |
| Pedals | Syncros SP-828 |
| Battery Size (WH) | 500Wh PowerTube Battery |
| Motor | Bosch Active Plus |
| User Interface | Purion Display |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
