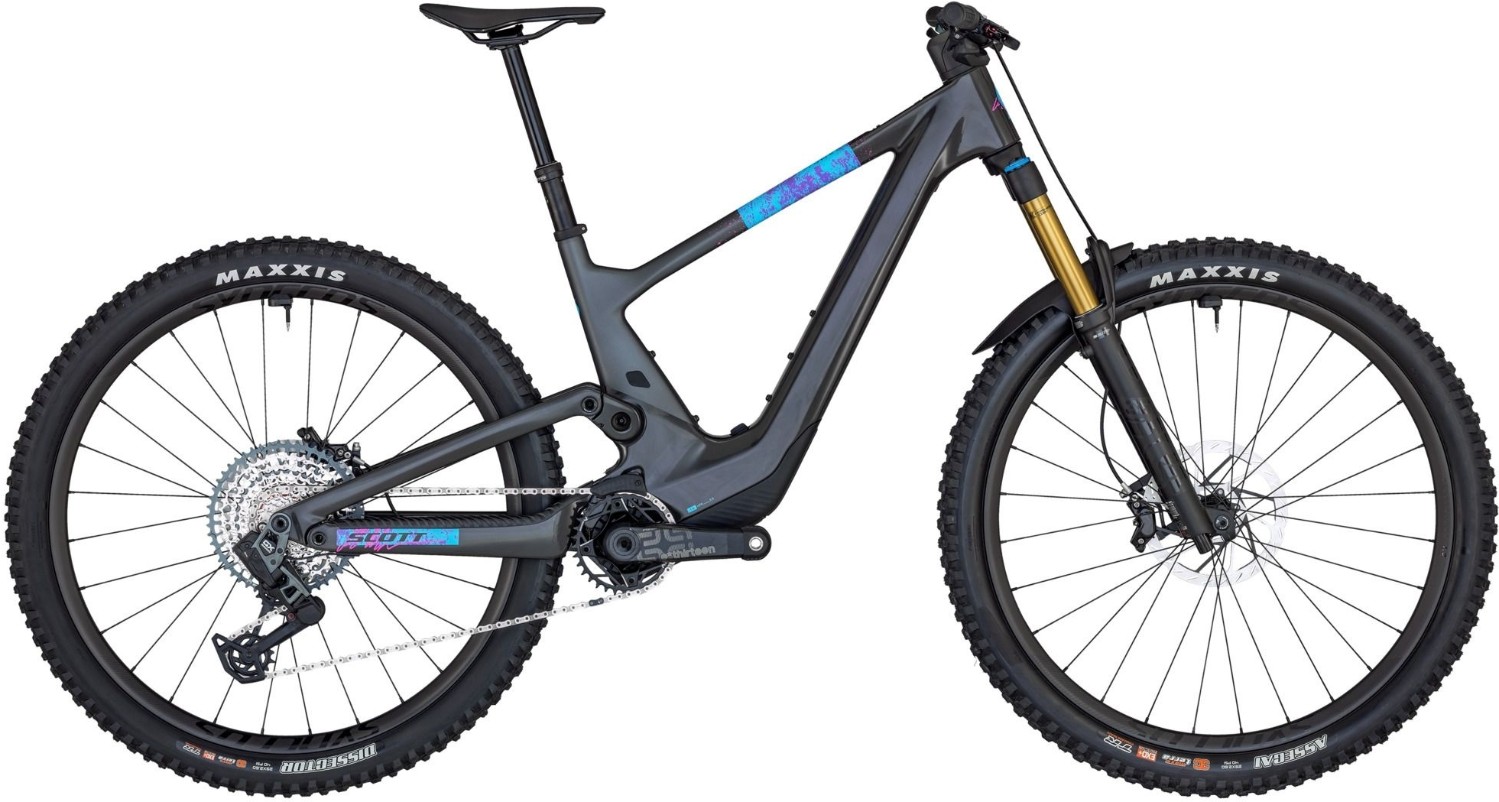

Scott Voltage eRIDE 900 Tuned 2025 - Electric Mountain Bike
The Scott Voltage eRIDE 900 Tuned is a high-performance e-MTB that blends lightweight agility with the power of the TQ HPR50 motor. This carbon-framed machine is built to conquer tough trails, with 160mm travel up front from a FOX 36 Factory fork and 155mm in the rear via a FOX FLOAT X NUDE Factory shock. The bike’s integrated suspension and adjustable geometry ensure precise handling and control, whether you’re climbing or descending. The SRAM GX Eagle AXS 12-speed electronic shifting system delivers seamless performance, while the SRAM Code Silver brakes offer powerful stopping power. Ready for all-day adventures, the Voltage eRIDE 900 Tuned lets you ride further, faster, and more confidently.
Key Features:
- Frame: Carbon HMF frame with adjustable head angle for tailored handling
- Front Suspension: FOX 36 Float Factory Grip2 fork with 160mm travel, Kashima coating
- Rear Suspension: FOX FLOAT X NUDE Factory rear shock, 155mm travel with 3 modes for any terrain
- Drivetrain: SRAM GX Eagle AXS 12-speed wireless electronic shifting for smooth transitions
- Brakes: SRAM Code Silver Stealth 4-piston hydraulic disc brakes with 200mm rotors
- Wheels: Syncros Revelstoke 1.0 30mm carbon rims, tubeless-ready for added grip
- Tyres: Maxxis Assegai (front) and Maxxis Dissector (rear), 29x2.6” for optimal traction
- Finance: Available with 0% APR finance
Drive Information:
- Motor: TQ HPR50 mid-motor, 50Nm torque for smooth and quiet power assistance
- Battery: TQ Internal 360Wh battery for extended rides
- User Interface: TQ HPR with Bluetooth and ANT+ connectivity, customisable via smartphone app
The Scott Voltage eRIDE 900 Tuned is engineered for mountain biking enthusiasts who crave high performance on rugged trails. The carbon frame is paired with top-of-the-line FOX Factory suspension, offering exceptional control and comfort over rough terrain. With the SRAM GX Eagle AXS wireless shifting, changing gears is effortless, allowing you to focus on tackling the toughest climbs and descents.
The TQ HPR50 motor delivers quiet, smooth power with 50Nm of torque, while the 360Wh battery ensures that you can ride further and longer. The bike’s Syncros carbon wheels are designed for maximum performance, and the Maxxis tyres provide excellent grip in all conditions. The Voltage eRIDE 900 Tuned is perfect for those who want a versatile, powerful e-bike that doesn’t compromise on handling or speed.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Carbon HMF Integrated Suspension Technology Virtual 4 Link kinematic / Adjustable head angle Syncros Cable Integration System TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline Range Extender Ready |
| Fork | FOX 36 Float Factory Grip 2 Air / Kashima HSC - LSC - HSR- LSR adjustable / Kabolt 15x110mm axle 44mm offset / tapered steerer 160mm travel |
| Rear Shock | FOX FLOAT X NUDE Factory EVOL Piggy Back Trunnion Kashima / SCOTT custom w. travel / geo adj. 3 modes: Climb-Ramp Control-Descend Custom large Air volume / Comp & Reb. Adj. Travel 155-100-Climb / T185X55mm |
| Headset | Syncros - Acros Angle adjust & Cable Routing HS System Stainless / +-0.6° head angle adjustment |
| Stem | Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm S size 140mm / M size 180mm / L & XL size 210mm |
| Bars | Syncros Hixon iC Carbon Size S & M 15mm rise / Size L & XL 25mm rise back sweep 8° / 780mm |
| Front Brake | SRAM Code Silver Stealth 4-Piston Disc SRAM HS2 Rotors F&R 200mm |
| Rear Brake | SRAM Code Silver Stealth 4-Piston Disc SRAM HS2 Rotors F&R 200mm |
| Brake Lever | SRAM Code Silver Stealth |
| Rear Mech | SRAM GX Eagle AXS Transmission 12 Speed Wireless Electronic Shift System |
| Shifters | SRAM GX Eagle AXS Rocker Controller |
| Speed | 12 |
| Rims | Syncros Revelstoke 1.0-30 CL. 30mm Tubeless ready Carbon rim 28H |
| Front Hub | 15x110mm DT Swiss |
| Rear Hub | 12x148mm DT Swiss Ratchet Hubs / XD Driver |
| Front Tyre | Maxxis Assegai / 2.6" / 60TPI Foldable Tubeless Ready / EXO+ 3C maxx Terra |
| Rear Tyre | Maxxis Dissector / 2.6" / 60TPI Foldable Tubeless Ready / EXO+ 3C maxx Terra |
| Seat Post | Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm S size 140mm / M size 180mm / L & XL size 210mm |
| Saddle | Syncros Tofino 1.5 Regular Titanium rails |
| Chainset | e*thirteen / e*spec Race Carbon / 34T |
| Bottom Bracket | Integrated |
| Chain | SRAM CN GX Eagle |
| Cassette | SRAM GX Eagle XS 1275 10-52 |
| Pedals | Resin Platform |
| Weight | 18.6kg |
| Battery Size (WH) | TQ Internal 360Wh |
| Motor | TQ HPR50 Mid Motor drive 50Nm max Torque |
| User Interface | TQ HPR Bluetooth / ANT+ / Dedicated Smartphone app |
Scott Voltage eRide Size Chart
|
Size |
Height (Cm) |
Height (feet) |
|
XS |
153 - 162 |
5’0” - 5’3” |
|
S |
162 - 172 |
5’3” – 5’8” |
|
M |
168 - 180 |
5’6” – 5’11” |
|
L |
178 - 188 |
5’10” – 6’2” |
|
XL |
184 - 196 |
6’0” – 6’5” |
What size frame do I need if I am between sizes? - read here
