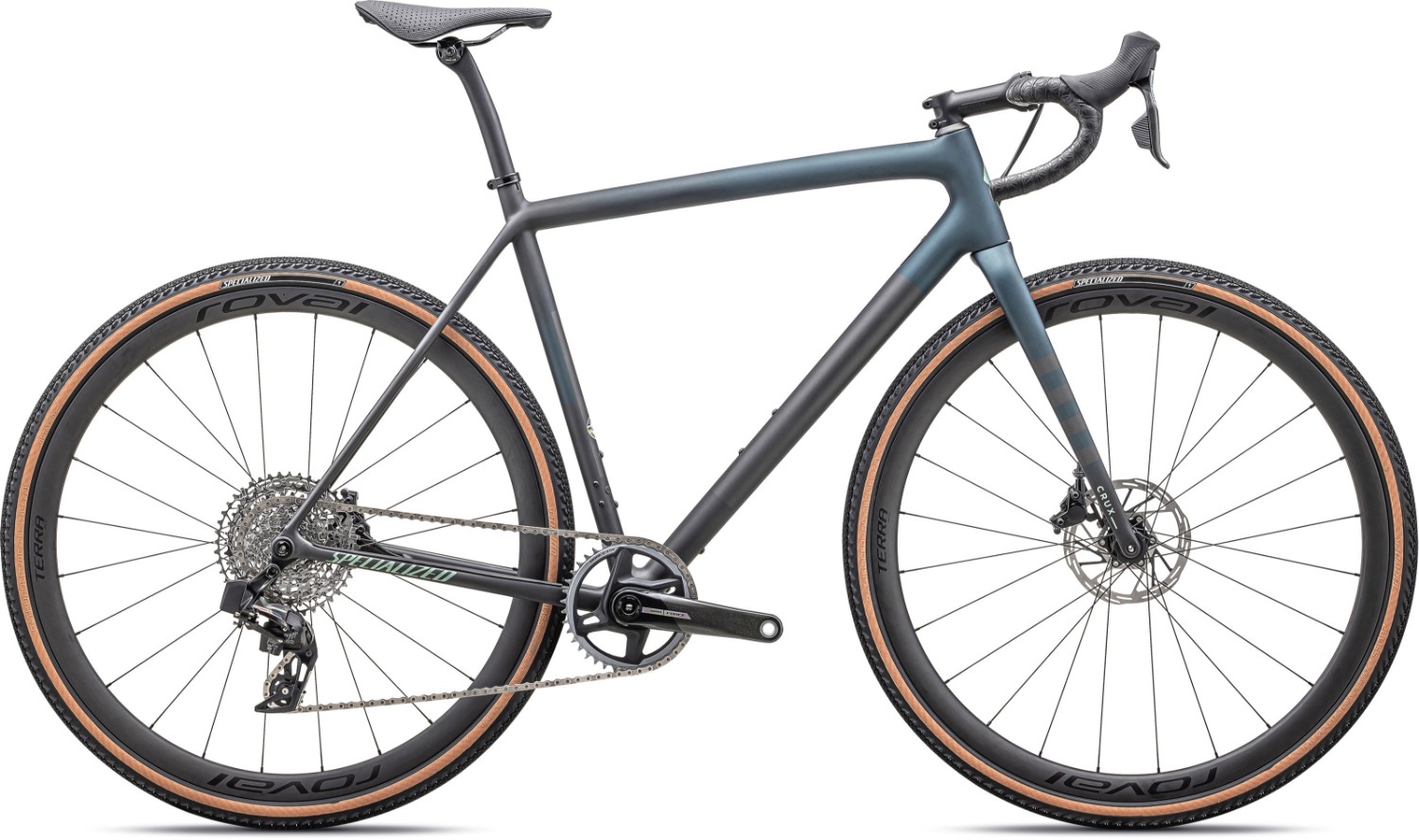

Specialized Crux Pro 2025 - Gravel Bike
- Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
- Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
- Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Crux FACT 10r Carbon, Rider First Engineeredâ„¢, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout |
| Fork | S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc |
| Stem | Specialized Pro SL, alloy, 4-bolt, 6-degree rise |
| Bars | Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare |
| Front Brake | SRAM Force eTap AXS |
| Rear Brake | SRAM Force eTap AXS |
| Brake Lever | SRAM Force eTap AXS |
| Rear Mech | SRAM FORCE XPLR eTap AXS |
| Shifters | SRAM Force eTap AXS |
| Speed | 12 |
| Rims | Roval Terra CL, 25mm internal width, 32mm depth, 24h, Tubeless ready |
| Front Hub | DT for Roval 350 hub, Centerlock disc |
| Rear Hub | DT for Roval 350 hub, Centerlock disc |
| Spokes | DT Swiss Competition Race spokes |
| Front Tyre | Pathfinder Pro 2BR, Tan Sidewall, 700x38 |
| Rear Tyre | Pathfinder Pro 2BR, Tan Sidewall, 700x38 |
| Seat Post | Roval Terra Carbon Seat Post, 20mm Offset |
| Saddle | Power Pro with Mirror |
| Chainset | SRAM Force 1x. 40T |
| Bottom Bracket | SRAM DUB BSA 68 |
| Chain | SRAM Force 12-speed |
| Cassette | SRAM XPLR, XG-1251, 12-speed, 10-44t |
| Pedals | Resin Platform |
| Weight | 7.63kg |
Specialized Crux 2025 Size Chart
| Size | Height (cm) | Height (Inches) |
| 49 | 155 - 158 | 5'1 - 5'4 |
| 52 | 163 - 168 | 5'4 - 5'6 |
| 54 | 168 - 175 | 5'6 - 5'9 |
| 56 | 175 - 183 | 5'9 - 6'0 |
| 58 | 183 - 191 | 6'0 - 6'3 |
| 61 | 191 -198 | 6'3 - 6'6 |
What size frame do I need if I am between sizes? - read here
Specialized Crux 2025 Geometry Chart
| Size | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Stack | 530mm | 547mm | 560mm | 578mm | 598mm | 621mm |
| Reach | 375mm | 382mm | 388mm | 397mm | 405mm | 415mm |
| Head Tube Length | 100mm | 115mm | 130mm | 147mm | 167mm | 190mm |
| Head Tube Angle | 70.5° | 71.25° | 71.5° | 72° | 72.25° | 72.5° |
| Trail | 74mm | 69mm | 67mm | 64mm | 62mm | 60mm |
| Fork Rake/Offset | 50mm | 50mm | 50mm | 50mm | 50mm | 50mm |
| Chainstay Length | 425mm | 425mm | 425mm | 425mm | 425mm | 425mm |
| Wheelbase | 1008mm | 1014mm | 1023mm | 1033mm | 1045mm | 1059mm |
| Seat Tube Length | 466mm | 496mm | 521mm | 546mm | 576mm | 606mm |
| Seat Tube Angle | 75.5° | 74° | 74° | 73.5° | 73.5° | 73.5° |
| Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Handlebar Width | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 330mm | 330mm | 330mm | 380mm | 380mm | 380mm |
| Stem Length | 70mm | 80mm | 90mm | 100mm | 110mm | 110mm |
| BB Height | 284mm | 284mm | 286mm | 286mm | 286mm | 286mm |
| BB Drop | 74mm | 74mm | 72mm | 72mm | 72mm | 72mm |
| Fork Length, Full | 401mm | 401mm | 401mm | 401mm | 401mm | 401mm |
| Front Center | 594mm | 600mm | 608mm | 618mm | 630mm | 644mm |
| Top Tube Length, Horizontal | 512mm | 539mm | 549mm | 568mm | 582mm | 599mm |
| Bike Standover Height | 749mm | 772mm | 794mm | 816mm | 841mm | 866mm |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
