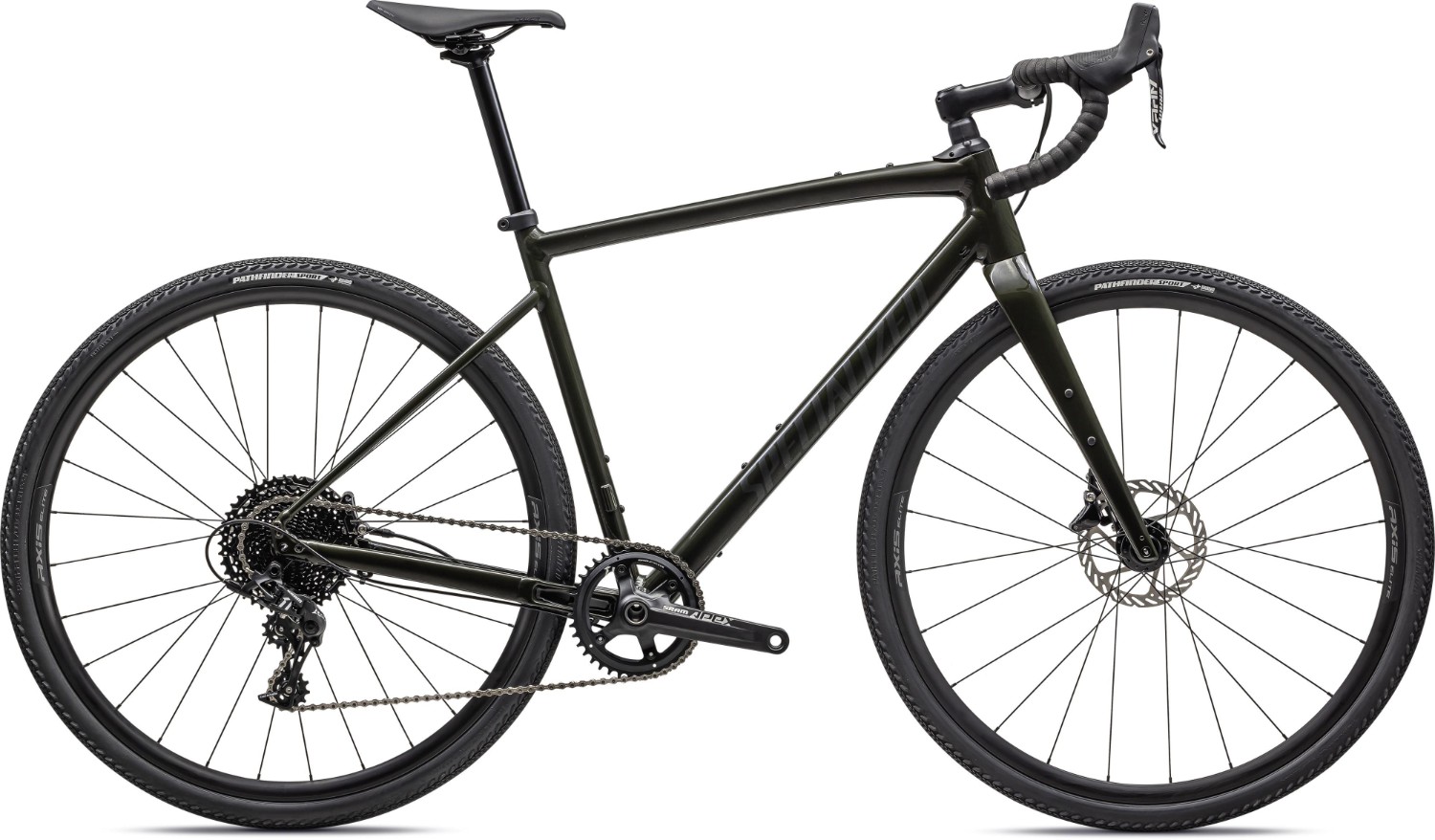

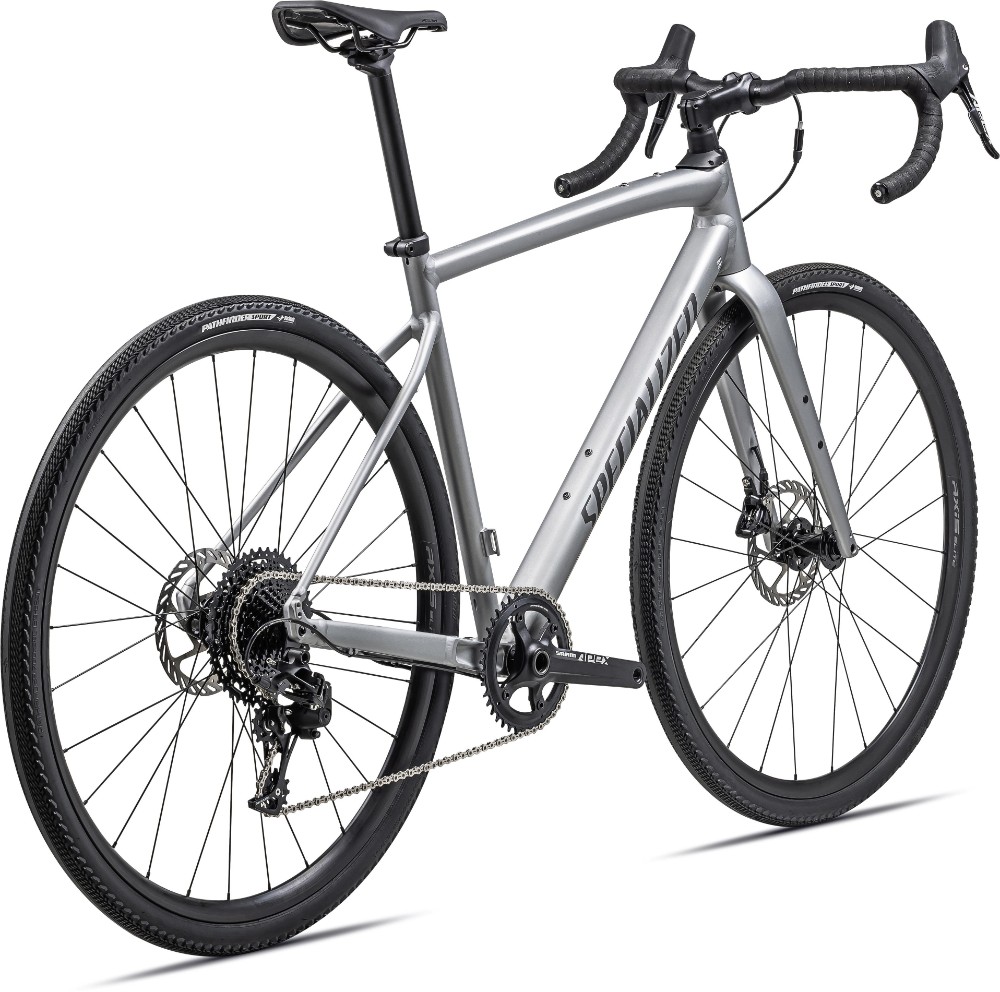

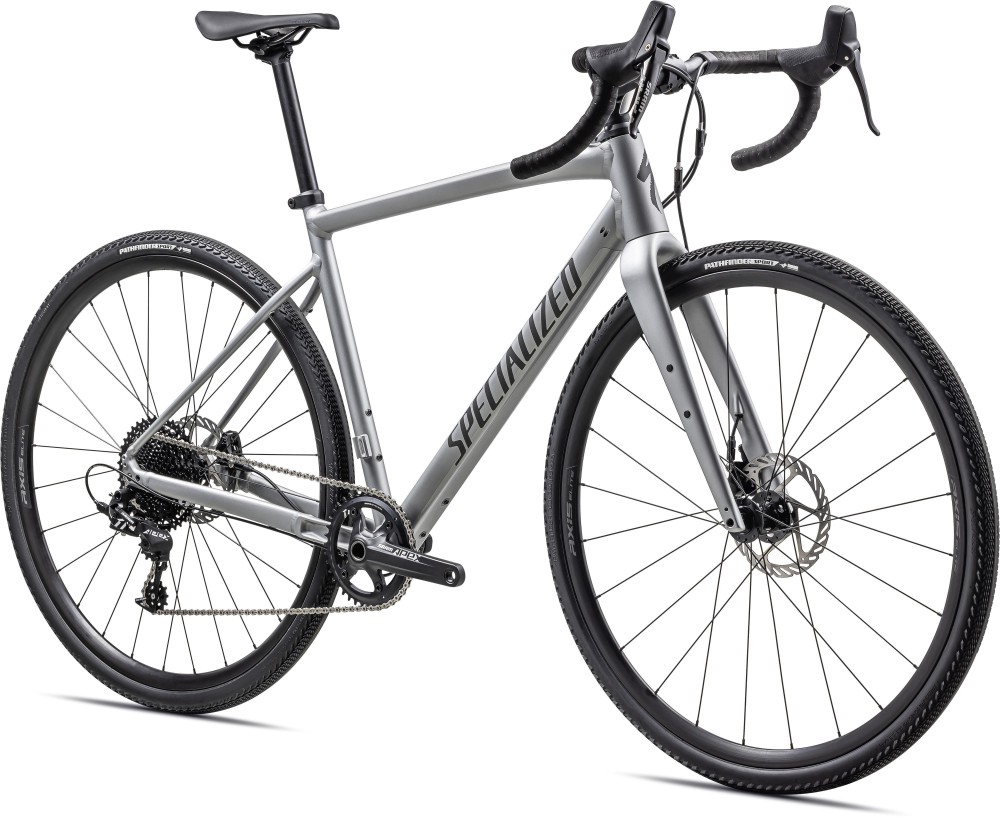

Name: Specialized Diverge E5 Comp 2023 - Gravel Bike
Brand: Specialized

Whether your goal is to escape on gravel back roads, far from cars and crowds, toe the start line at your first gravel race, or simply get the most versatile bike on the road or dirt, no bike is better than the new Diverge. It's quite simply the fastest, most capable - and just maybe the most fun - alloy bike we've ever made, delivering a ride that's quick and lively, but stable and confidence inspiring when the terrain gets rough. From Future Shock 1.5 and all-new gravel geometry, to category leading tire clearance, the new Diverge represents everything we've learned over more than 40 years of riding road, gravel and dirt. The Diverge writes an entirely new chapter in the gravel bike category, so you can dream up entirely new rides. It's the ultimate getaway vehicle.

Starting with premium E5 alloy frame and a full carbon FACT fork, we gave the Diverge Comp E5 our Future Shock 1.5 for a fast, confident and comfortable ride on road, in the dirt, and over thick gravel. SRAM’s gravel-inspired Apex 1 group shifts 1x11 gears smoothly on any terrain and Axis Elite alloy wheels with Pathfinder Sport 38mm tires add even more capability and versatility.

Our Premium E5 Aluminum frame provides a stiff, light, and durable platform. When mated to our full carbon FACT fork, the Diverge Comp E5 becomes a light, lively and versatile bike ready to attack any surface.

Speed, control and confidence - Future Shock 1.5 is ideal technology for the gravel rider. With 20mm of axial compliance, Future Shock 1.5 is progressively tuned specifically for gravel riding. This keeps you confident and in control, able to keep the power down and stay off the brakes over rough dirt roads and in thick loose gravel, all while keeping your hands, arms and neck fresh.

We tossed gravel geometry ‘status-quo’ out the window. The new Diverge has the most progressive geometry we’ve ever created for a drop bar bike, giving riders a capable and stable bike in the dirt, that still feels responsive and nimble on the road. We’ve increased the frame’s reach, introduced a slacker head tube and a longer offset fork. All this creates incredible confidence with a planted feeling in the dirt, while spec’ing shorter stems keeps the overall cockpit length the same and the steering lively. We’ve kept the bike’s BB low to increase stability, but high enough to utilize with 650b wheels if that’s your jam.

We’ve given the Diverge plenty of rack mounts, including fork and top tube mounts, to ensure you can take what you need, no matter how far you plan to go, or how long you plan to stay out.

Nothing unlocks a bike’s capability like tire clearance, so we gave the new Diverge a whopping 47mm of tire clearance with a 700c wheel and 2.1” with a 650b wheel. Thanks to a drive side chain stay utilizing a machined alloy beam behind the chain rings we’ve created clearance without using a fragile dropped chain stay design or increasing chain stay length

Occasionally, without notice, manufacturers change product design and/or specifications.

Specialized Diverge 2023 Size Chart

Size	Height (cm)	Height (Inches)
44cm	142 - 152	4'8 - 5'0"
49cm	152 - 163	5'0" - 5'4"
52cm	163 - 170	5'4" - 5'7"
54cm	170 - 178	5'7" - 5'10"
56cm	175 - 180	5'9" - 6'0"
58cm	180 - 188	5'11" - 6'2"
61cm	188 - 196	6'2" - 6'5"

Specialized Diverge 2023 Geometry

	44	49	52	54	56	58	61
Crank Length	165	165	170	172.5	172.5	175	175
Handlebar Width	360	380	400	420	420	440	440
Stem Length	60	60	70	80	90	100	100
Saddle Width	155	155	155	143	143	143	143
Seatpost Length	350	350	350	400	400	400	400
Stack	529	545	561	578	599	618	635
Reach	357	365	374	383	392	401	410
Head Tube Length	110	125	140	155	175	195	213
Head Tube Angle	69.5	70	70.5	71.25	71.75	71.75	71.75
BB Height	270	270	270	270	270	270	270
BB Drop	80	80	80	80	80	80	80
Trail	72	69	66	61	57	57	57
Fork Length Trail	390	390	390	390	390	390	390
Fork Rake/Offset	55	55	55	55	55	55	55
Front Center	589	589	608	615	626	641	656
Chainstay Length	432	432	432	432	432	432	432
Wheelbase	1008	1017	1027	1035	1046	1061	1076
Top Tube Length	504	521	538	554	570	584	598
Bike Standover Height	680	703	723	763	789	808	834
Seat Tube Length	363	390	430	470	500	530	560
Seat Tube Angle	74.5	74	73.75	73.5	73.5	73.5	73.5

Frame	Specialized Diverge E5 Premium Aluminum, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc
Fork	Future Shock 1.5 w/Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount
Stem	Future Stem, Comp
Bars	Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
Front Brake	SRAM Apex, hydraulic disc, 160mm G2 CenterLine rotor
Rear Brake	SRAM Apex, hydraulic disc, 160mm G2 CenterLine rotor
Brake Lever	Sram Apex, Hydraulic
Rear Mech	SRAM Apex 1, long cage, 11-speed
Shifters	SRAM Apex, 11-speed
Speed	11
Rims	AXIS Elite Disc
Front Hub	AXIS Elite Disc
Rear Hub	AXIS Elite Disc
Front Tyre	Specialized Pathfinder Sport, 700x38c
Rear Tyre	Specialized Pathfinder Sport, 700x38c
Seat Post	Alloy, 2-bolt Clamp, 12mm offset, 27.2mm, anti-corrosion hardware
Saddle	Body Geometry Power Sport, steel rails
Chainset	SRAM Apex 1x, Steel, 30T
Bottom Bracket	SRAM GXP
Chain	KMC X11 Extra Lightweight, 11-speed
Cassette	Sunrace, 11-speed, alloy spider, 11-42t
Pedals	Resin Platform
