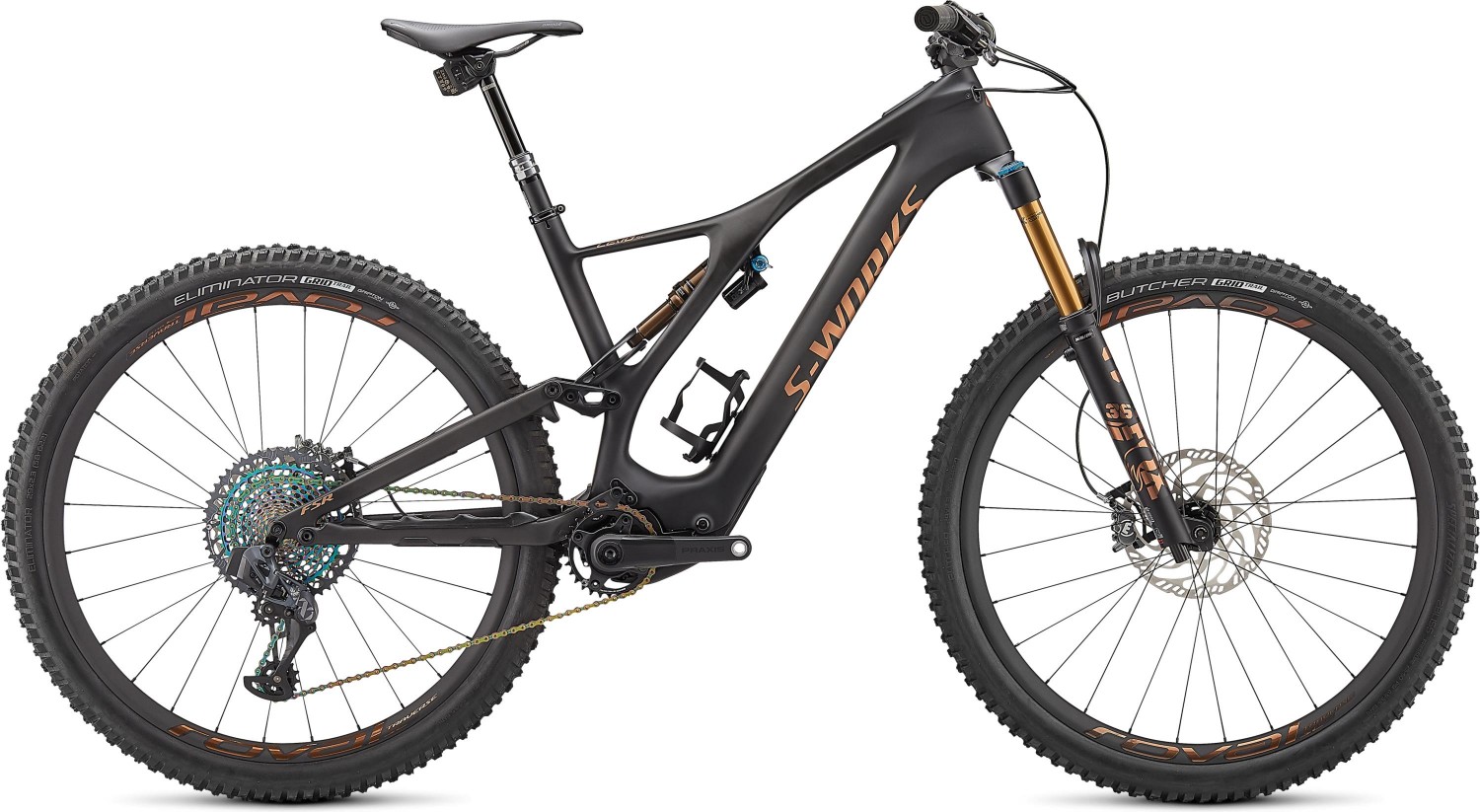

Specialized S-Works Turbo Levo SL 2022 - Electric Mountain Bike
Turbo Levo SL is a new, lightweight breed of eMTB that harnesses the quick and lively ride of our Stumpjumper...and adds just enough power to introduce a whole new dimension of kick ass. The top-shelf S-Works Turbo Levo SL features a carbon chassis mated to FOX Factory-level suspension and SRAM's premier Eagle XX1 AXS drivetrain.
IT'S YOU... JUST GOING FASTER...AND FURTHER
The Turbo Levo SL is effectively a Stumpjumper that lets you embark on ridiculously long adventures with no fear of bonking and helps you snag three laps of your favorite trail instead of just one. Looking for a ton of power and range? Check out our Levo and Kenevo models. Want a bike, on the other hand, that simply feels like you—a faster you, with the power to ride more trails, kind of you? That's Turbo Levo SL.
TUNE IT TO YOUR STYLE
By connecting with our Mission Control App, you can tune the SL 1.1 motor to your riding style, record rides, and monitor the battery. The motor even has a built-in power meter that transmits to any ANT+ head unit. Don't want to connect? No worries—the simple Turbo Connect Unit (TCU) on the top tube gives you all the control you need to just climb on and ride all day.
• Lightweight, carbon Stumpjumper-inspired frame is pure ride quality and control.
• Ultra-smooth and lightweight SL 1.1 motor doubles your pedaling power.
• 150mm of suspension front and rear, courtesy of FOX's Factory 36 fork and DPX2 shock.
The Turbo Levo SL looks like a Stumpjumper and, out on the trail, feels like one too. That’s no mistake. We aimed to build a Stumpjumper with a bit more boost to it and that’s exactly what you get—a Sidearm chassis with just the right amount of front-to-rear stiffness and 150mm of smooth, custom-tuned FOX rear suspension. To top it all off, we constructed this Turbo Levo SL chassis entirely from our light-yet-strong FACT 11m carbon.
The lightweight SL 1.1 motor doubles your effort with as much as 240 watts of silent and powerful assistance to your pedals. The motor’s responsive torque curve delivers power perfectly in-tune with your normal riding cadence and leaves no resistance when you’re riding without power assistance.
Worried about running out of power? No problem. Turbo Levo SL eats up big miles and long days. And if you’re looking for even more miles, our included range extender boosts your range by another 50 percent. On top of all that, our Mission Control App can handle battery management automatically, ensuring your battery will last as long as you need it to.
Assist up to 20 mph / 32 km/h
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | FACT 11m full carbon, 29 Trail Geometry, Integrated down tube battery, enclosed internal cable, Command Post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel |
| Fork | Fox Float 36 Factory, Grip2 damper, 150mm, 51mm rake, HSC, LSC, HSR, LSR, Kabolt axle |
| Rear Shock | Fox Float DPX2 Factory, 3- position adjustment, 52.5x210mm, Rx Trail Tune |
| Stem | Deity Copperhead, 35.0mm |
| Bars | Specialized Trail, FACT Carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm, 35mm |
| Front Brake | Magura MT7 with custom Loic lever blade, 203mm rotor |
| Rear Brake | Magura MT7 with custom Loic lever blade, 203mm rotor |
| Rear Mech | SRAM XX1 Eagle AXS |
| Shifters | SRAM AXS Eagle Controller |
| Speed | 12 |
| Rims | Roval Traverse SL 29, hookless carbon, 30mm inner width, 2Bliss Ready, hand-built, 28h |
| Front Hub | Roval Traverse SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing |
| Rear Hub | Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing |
| Spokes | DT Competition Race |
| Front Tyre | Butcher, GRID TRAIL casing, GRIPTON® compound, 29x2.3" |
| Rear Tyre | Eliminator, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.3" |
| Seat Post | RockShox Reverb AXS, 30.9mm, S: 125, M:150, L/XL: 170mm |
| Saddle | Bridge, 155/143mm, Hollow Ti-rails |
| Chainset | Praxis, carbon M30, custom offset, SRAM X-Sync Eagle, 94 BCD, 30T |
| Chain | SRAM XX1 Eagle |
| Cassette | Sram XG-1299, 12-Speed, 10-52t |
| Pedals | Resin Platform |
| Battery Size (WH) | Specialized SL1-320, fully integrated, 320Wh |
| Motor | Specialized SL 1.1, custom lightweight motor |
| User Interface | Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth® |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
