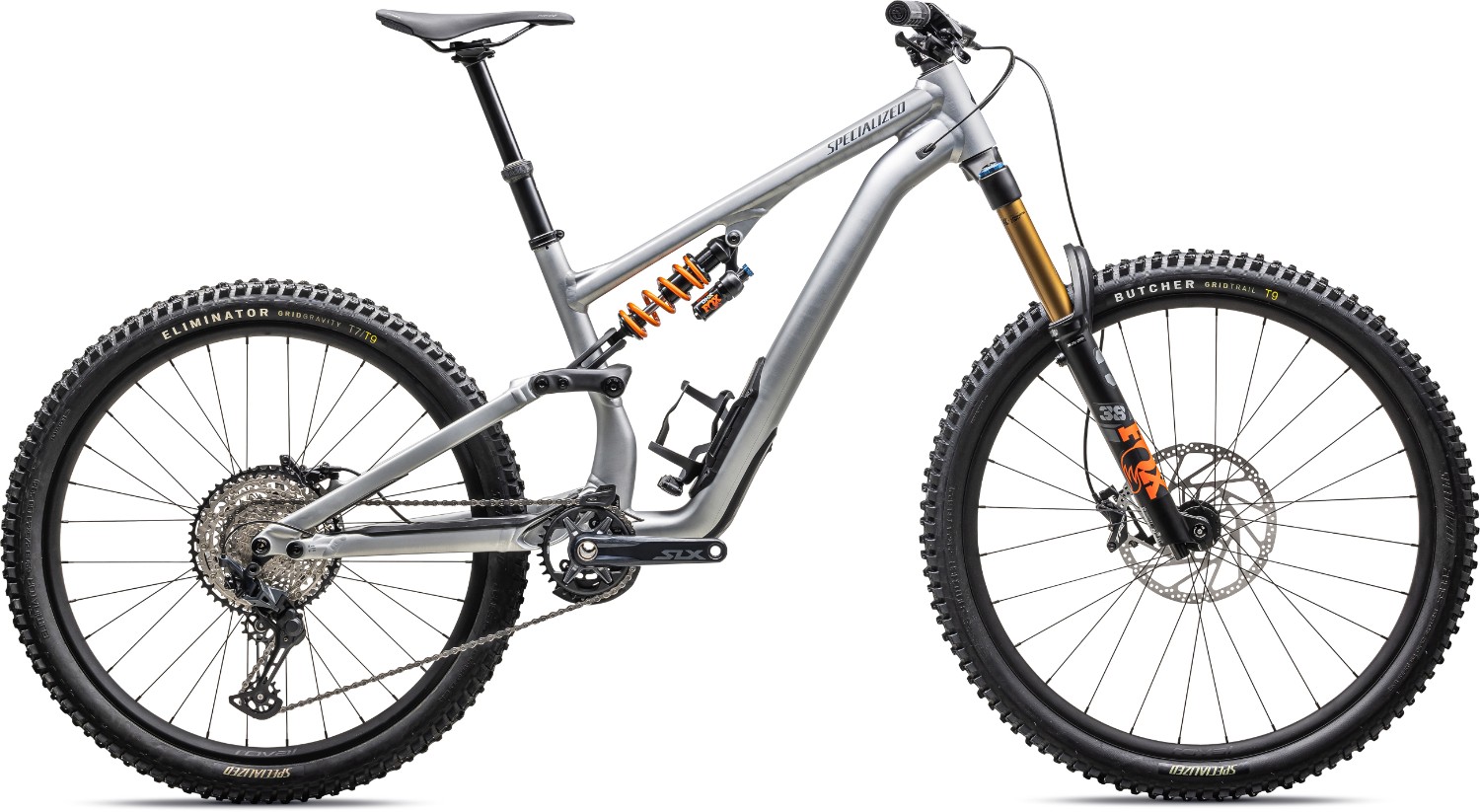

Specialized Stumpjumper 15 Fox Coil Alloy Mountain Bike 2025 - Trail Full Suspension MTB
Key Features:
- Frame: M5 alloy frame, Trail Geometry, with SWAT™ door integration, 145mm travel
- Front Suspension: FOX FLOAT 38 Factory, GRIP X2 damper, 160mm travel
- Rear Suspension: FOX DHX Factory coil shock, 145mm travel
- Drivetrain: Shimano SLX M7100, 12-speed for smooth, precise shifting
- Brakes: TRP DH-R EVO 4-piston hydraulic disc brakes for powerful stopping
- Wheels: 29" front, 27.5" rear Roval Traverse alloy wheels, tubeless ready
- Finance: Available with 0% APR finance options
Specialized Stumpjumper Review
This Stumpjumper model is ready to handle everything from fast descents to technical climbs. Its M5 alloy frame not only provides durability but also includes Specialized's innovative SWAT™ Door integration for extra storage. The Fox suspension is dialled in for aggressive trail riding, with 160mm travel up front and 145mm at the rear to handle the roughest tracks. Plus, the Shimano SLX drivetrain ensures reliable shifting, giving you the confidence to ride harder without worrying about performance drops.
The TRP DH-R EVO 4-piston brakes deliver serious stopping power, helping you control your descents with ease. Roval Traverse wheels, combined with Butcher GRID TRAIL tyres, provide excellent grip and stability, whether you're flying down the trail or navigating tricky sections.
With personalisation options like adjustable suspension and geometry, the Stumpjumper 15 is a bike that adapts to your unique riding style. And with 0% APR finance available, it’s easier to get this trail beast onto the track.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | M5 Alloy chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel |
| Fork | FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset, 160mm of travel |
| Rear Shock | FOX DHX Factory, Ride Dynamics Trail Tune, 210x55mm, S2: 400lbs, S3: 450lbs, S4: 500bs, S5: 550lbs, S6: 600lbs |
| Stem | Deity, 35mm clamp, 35mm length |
| Bars | Deity, Racepoint, 5-degree upsweep, 9-degree backsweep, 810 width, S2: 25mm rise; S3-S6: 38mm rise |
| Front Brake | TRP DH-R EVO, 4-piston caliper, hydraulic disc, 220mm |
| Rear Brake | TRP DH-R EVO, 4-piston caliper, hydraulic disc, 203mm |
| Rear Mech | Shimano SLX M7100, SGS, 12-speed |
| Shifters | Shimano SLX, M7100, 12spd |
| Speed | 12 |
| Rims | Roval Traverse, hookless alloy, 30mm inner width, tubeless ready, Front: 29, Rear: 27.5 |
| Front Hub | DT Swiss 370, 15x110mm, 28h |
| Rear Hub | DT Swiss 370, 12x148mm, 32h |
| Spokes | Sapim Force |
| Front Tyre | Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" |
| Rear Tyre | Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" |
| Seat Post | PNW Loam OE Dropper, tool-less travel adjust, Range lever, 34.9, S2: 150mm, S3: 170mm, S4-S6: 200mm |
| Saddle | Bridge Comp, Hollow Cr-mo rails, S1-S2: 155mm, S3-S6: 143mm |
| Chainset | Shimano SLX, M7120, 32T ring, 55mm chainline, S2-S3:165mm, S4-S6: 170mm |
| Bottom Bracket | Shimano, BB-MT801, Threaded |
| Chain | Shimano SLX, M7100, 12-speed |
| Cassette | Shimano SLX, CS-M7100, 12-speed, 10-51t |
| Pedals | Resin Platform |
| Weight | 16.90 kg |
Specialized Stumpjumper 15 Size Chart
|
Size |
Height (cm) |
Height (inches) |
|
S1 (XS) |
150 – 160 |
4’11” – 5’3” |
|
S2 (S) |
157 – 173 |
5’2” – 5’8” |
|
S3 (M) |
165 – 180 |
5’5” – 5’11” |
|
S4 (L) |
173 – 188 |
5’8” – 6’2” |
|
S5 (XL) |
178 – 193 |
5’10” – 6’4” |
|
S6 (XXL) |
188 - 203 |
6’2” – 6’3” |
Find your S Size
Determining your S-Size is easy. If you rode a Medium before, then S-3 will be your equivalent size. But if you want a more nimble ride, you should drop down to an S2. Want a bike that’s more stable at speed? Bump up to an S4. Following are examples of three riders, all 5’8” (1.73m), who chose three different sizes.
Specialized Stumpjumper 15 Geometry
|
|
S1 (XS) |
S2 (S) |
S3 (M) |
S4 (L) |
S5 (XL) |
S6 (XXL) |
|
Crank Length |
165mm |
165mm |
165mm |
170mm |
170mm |
170mm |
|
Handlebar Width |
780mm |
780mm |
800mm |
800mm |
800mm |
800mm |
|
Stem Length |
35mm |
35mm |
35mm |
35mm |
35mm |
35mm |
|
Saddle Width |
155mm |
155mm |
143mm |
143mm |
143mm |
143mm |
|
Seatpost Length |
125mm |
150mm |
170mm |
170mm |
170mm |
170mm |
|
Stack |
608mm |
618mm |
627mm |
640mm |
654mm |
667mm |
|
Reach |
400mm |
425mm |
450mm |
475mm |
500mm |
530mm |
|
Headtube Length |
95mm |
100mm |
110mm |
125mm |
140mm |
155mm |
|
Headtube Angle |
64.5° |
64.5° |
64.5° |
64.5° |
64.5° |
64.5° |
|
BB Height |
334mm |
337mm |
337mm |
337mm |
337mm |
337mm |
|
BB Drop |
41mm |
38mm |
38mm |
38mm |
38mm |
38mm |
|
Trail |
129mm |
130mm |
130mm |
130mm |
130mm |
130mm |
|
Fork Length (full) |
551mm |
561mm |
561mm |
561mm |
561mm |
561mm |
|
Fork Rake/Offset |
44mm |
44mm |
44mm |
44mm |
44mm |
44mm |
|
Front Centre |
720mm |
751mm |
780mm |
812mm |
843mm |
879mm |
|
Chainstay Length |
430mm |
432mm |
435mm |
435mm |
445mm |
445mm |
|
Wheelbase |
1149mm |
1181mm |
1213mm |
1244mm |
1285mm |
1322mm |
|
Top-tube Length (horizontal) |
541mm |
573mm |
595mm |
624mm |
647mm |
677mm |
|
Bike Standover Height |
738mm |
751mm |
745mm |
745mm |
745mm |
751mm |
|
Seat Tube Length |
385mm |
385mm |
405mm |
425mm |
445mm |
465mm |
|
Seat Tube Angle |
78° |
77° |
77° |
76.5° |
76.5° |
76.5° |
|
Saddle Height for Effective ST Angle |
645mm |
690mm |
735mm |
780mm |
825mm |
870mm |
|
Max Seatpost Insertion |
245mm |
245mm |
255mm |
255mm |
285mm |
285mm |
|
Min Seatpost Insertion |
80mm |
80mm |
80mm |
80mm |
80mm |
80mm |
