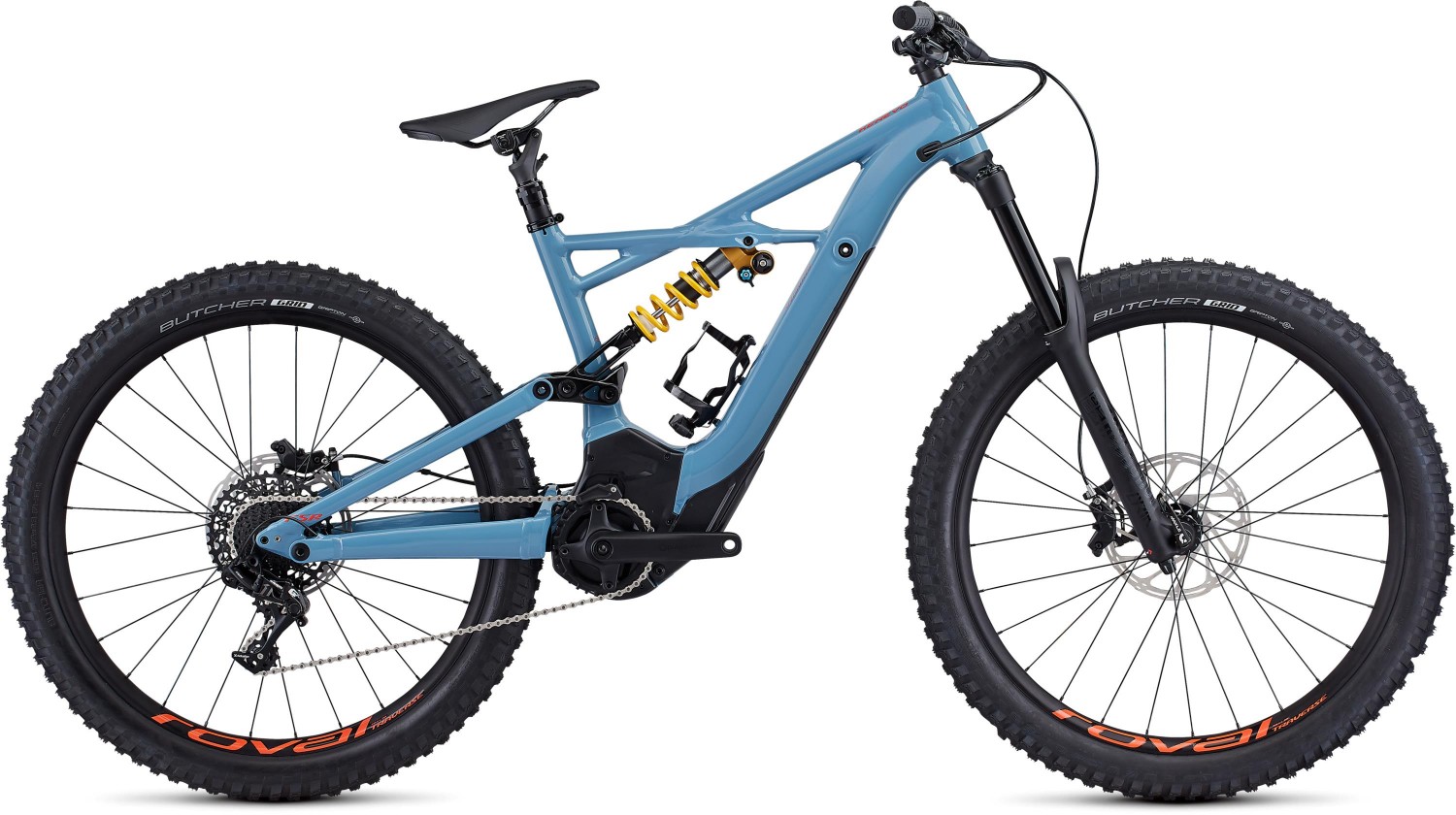

Specialized Turbo Kenevo Expert 27.5" 2019 - Electric Mountain Bike
The power to ride more challenging trails. The Specialized Turbo Kenevo Expert 27.5" is an electric bike for riding the most challenging trails on the mountain. With 180mm of bump soaking suspension travel, plus size tyres and a powerful electric motor the Kenevo is the e bike that hard charging enduro riders have always wanted.
Key Features:
- Powerful electric motor and battery are fully integrated into the frame
- Öhlins TTX22M Coil shock delivers 180mm rear suspension control
- RockShox Lyric RCT3 fork offers 180mm of composed suspension travel
- SRAM GX 1x11 speed drivetrain for reliable shifting
- SRAM Code R hydraulic disc brakes for powerful stopping control
- 6Fattie (27.5+) wheels with 2.8” tyres for extra grip and float
- Sizes: Small, Medium, Large, X Large
- Colour: Gloss Black, Black/Cali Fade/Hyper
- Specialized Turbo Kenevo Expert 6Fattie is available with 0% APR finance
Drive Information:
- Motor: Turbo 1.3 250W (530W max) Brose with custom trail tune
- Battery: Turbo M1-504, 504Wh, removable, 3.5hour charge time
- User interface/remote: Integrated trail display / Mission Control for iOS & Android
- Connectivity: ANT+, LEV & Bluetooth compatible
Rear Shock Spring Weights:
- Small = 72 N/mm – 411 lbs/in
- Medium = 80 N/mm – 457 lbs/in
- Large = 88 N/mm – 502 lbs/in
- X Large = 96 N/mm – 548 lbs/in
Descending 1,000 straight feet of the rockiest, most technical, and gnarly trails is one of the most exhilarating feelings imaginable, but climbing back up, lap-after-lap, delivers a different kind of "tingly feeling." Not the adrenaline kind, but more of the quad-searing variety. And while we're all for getting a hard workout in, it's nice to have some extra power, and there's only one bike that allows you to do that without sacrificing big suspension travel—the Turbo Kenevo 6Fattie.
With the Turbo Kenevo FSR, first and foremost, you get all of the hallmarks that our trail bikes are known for—a roomy top tube for an easy fit and better control, ultra-short chainstays for nimble handling, and a low bottom bracket that makes the bike feel glued to the trail. Top this off with 180 millimetres of front and rear travel, and you have a bike that's ready to send it off of anything.
Then comes an M5 aluminium frame and efficient and powerful Turbo technology, integrating a battery, and a new Turbo 1.3 motor that delivers 15% more power than the previous version. This also delivers a significant increase in efficiency, while our exclusive Rx Trail Tune at the motor smoothly and quietly brings this additional power to the pedals, making climbing the steepest of trails nearly effortless. The output is fully adjustable to conserve energy, as well, while the custom motor is also the only one on the market that features instant pedal engagement, so you get immediate power the moment you need it, and consistent torque throughout the entire cadence range.
At the battery, you'll find that it's fully integrated with the down tube and easily removable for quick charging or swaps. It has a lengthy lifespan for hitting long, out of the way trails and, along with the motor, it's strategically placed for optimal weight distribution. You'll also find our Mission Control App for full control of the Turbo technology, an integrated Trail Display with all of the ride metrics you need, a Trail Remote that lets your easily switch between modes without removing your hands from the bars, and a power meter that shows exactly how much power you're putting out vs. the motor.
The Turbo Kenevo FSR 6Fattie features a build spec that leaves nothing to be desired, with an Öhlins TTX22M coil shock, a RockShox Lyrik fork with 180mm of travel, SRAM's GX one-by groupset, and hand-built Roval alloy wheels. It also features our 6Fattie wheel system that decreases deflection and dramatically increases traction, floatation, and fun over the trail.
The frame, with its 180mm of travel, is constructed from our M5 Premium Aluminium, which is equal parts, strong, lightweight, and incredibly responsive. The design of the frame itself revolves around our Trail 6Fattie Geometry that includes all of our trail hallmarks, like a low-slung bottom bracket, roomy top tube, and ultra-short chainstays. Cable routing is all internal, including that of the Command Post IR, while the battery is fully integrated in the down tube and the motor is secured by a forged brace mount.
The custom Turbo 1.3 Rx Trail-tuned motor is built for the Kenevo and features a 15% power increase and a significant efficiency increase compared to the Turbo 1.2 motor. This successfully places it at the top of e-bike motor technology. It has many other features that no other e-bike can touch, like instant engagement, fantastic heat management, a double freewheel design that disengages the gear box when you hit top speed, and silent, smooth, and consistent output—even at max power.
The Turbo M1-504 battery features an integrated Trail Display and ANT+/Bluetooth® module with Mission Control App connectivity
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on baskets over £99
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
Specialized Turbo Kenevo Sizing
See the table below to find the right size Specialized Turbo Kenevo.
Height |
Sizes |
|||
5’2” / 158cm |
S |
|
|
|
5’3” / 160cm |
S |
|
|
|
5’4” / 163cm |
S |
|
|
|
5’5” / 165cm |
S |
M |
|
|
5’6” / 168cm |
|
M |
|
|
5’7” / 170cm |
|
M |
|
|
5’8” / 173cm |
|
M |
|
|
5’9” / 175cm |
|
M |
|
|
5’10” / 178cm |
|
M |
L |
|
5’11” / 180cm |
|
|
L |
|
6’0” / 183cm |
|
|
L |
|
6’1” / 185cm |
|
|
L |
Xl |
6’2” / 188cm |
|
|
|
XL |
6’3” / 191cm |
|
|
|
XL |
6’4” / 193cm |
|
|
|
XL |
The rear shock on each Turbo Kenevo is fitted with a different weight spring. See the charts below to see if the spring rate on your selected size is right for you.
Bike Size |
Weight of Spring Fitted |
Small |
72 N/mm – 411 lbs/in |
Medium |
80 N/mm – 457 lbs/in |
Large |
88 N/mm – 502 lbs/in |
X Large |
96 N/mm – 548 lbs/in |
If the spring rate on your selected size is not ideal, don’t worry we can help, just give our bike specialist team a call on 01792 346501
Spring Weight |
Recommended Rider Weight |
|
64 N/mm – 365 lbs/in |
110 lbs |
50 kg |
68 N/mm – 388 lbs/in |
120 lbs |
55 kg |
72 N/mm – 411 lbs/in |
130 lbs |
60 kg |
76 N/mm – 434 lbs/in |
140 lbs |
65 kg |
80 N/mm – 457 lbs/in |
150 lbs |
70 kg |
84 N/mm – 480 lbs/in |
165 lbs |
75 kg |
88 N/mm – 502 lbs/in |
180 lbs |
80 kg |
92 N/mm – 525 lbs/in |
195 lbs |
88 kg |
96 N/mm – 548 lbs/in |
210 lbs |
95 kg |
100 N/mm – 571 lbs/in |
225 lbs |
100 kg |
106 N/mm – 605 lbs/in |
240 lbs |
108 kg |
112 N/mm - 640 lbs/in |
255 lbs |
115 kg |
Read our bike size guide for more information on sizing.
Turbo Kenevo Geometry
|
S |
M |
L |
XL |
CRANK LENGTH |
165mm |
165mm |
165mm |
165mm |
STEM LENGTH |
45mm |
45mm |
45mm |
45mm |
SEATPOST LENGTH |
125mm |
150mm |
150mm |
150mm |
SADDLE WIDTH |
143mm |
143mm |
143mm |
143mm |
HANDLEBAR WIDTH |
800mm |
800mm |
800mm |
800mm |
REACH |
407mm |
431mm |
455mm |
478mm |
TOP TUBE LENGTH, HORIZONTAL |
566mm |
597mm |
626mm |
655mm |
STACK |
601mm |
610mm |
619mm |
629mm |
WHEELBASE |
1177mm |
1205mm |
1233mm |
1261mm |
CHAINSTAY LENGTH |
443mm |
443mm |
443mm |
443mm |
FRONT CENTER |
734mm |
762mm |
790mm |
818mm |
BB DROP |
9mm |
9mm |
9mm |
9mm |
BB HEIGHT |
350mm |
350mm |
350mm |
350mm |
SEAT TUBE ANGLE |
75.2° |
74.8° |
74.6° |
74.3° |
HEAD TUBE ANGLE |
65° |
65° |
65° |
65° |
SEAT TUBE LENGTH |
424mm |
435mm |
468mm |
510mm |
HEAD TUBE LENGTH |
100mm |
110mm |
120mm |
130mm |
BIKE STANDOVER HEIGHT |
776mm |
776mm |
785mm |
789mm |
FORK RAKE/OFFSET |
46mm |
46mm |
46mm |
46mm |
FORK LENGTH, FULL |
574mm |
574mm |
574mm |
574mm |
TRAIL |
117mm |
117mm |
117mm |
117mm |
Read our Mountain Bike Geometry Explained guide for more information on MTB geometry.
