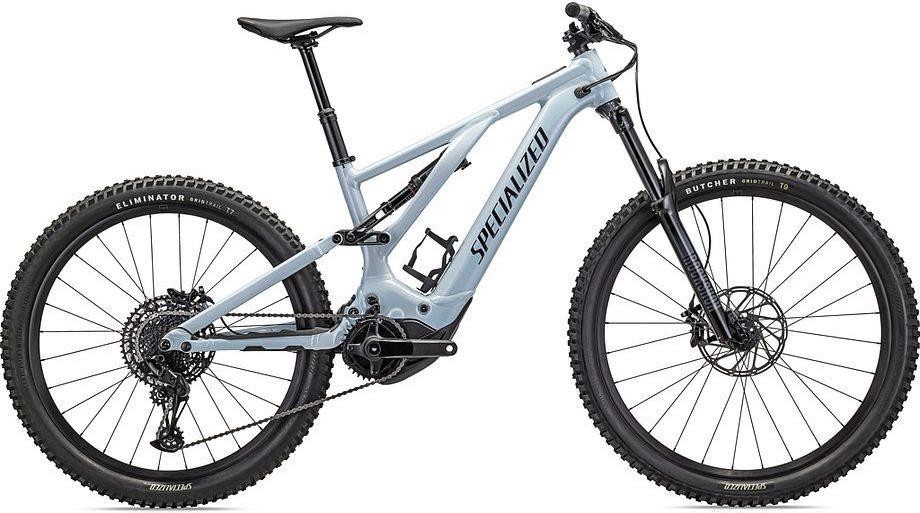

Specialized Turbo Levo Alloy 2022 - Electric Mountain Bike

£5,250.00
Price Match
or £109.38 / month
Finance Options
1 Question / 1 Answer
What is my size?
Select a size
Select a colour
Add to Basket

Cycle to Work

Product Description

The all-new Turbo Levo Alloy delivers the unbelievable power to ride more trails through an unequalled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.



Key Features:

  • All-new M5 premium alloy frame with adjustable geometry
  • RockShox 35 Silver fork with 160mm of travel of confident control
  • RockShox Deluxe Select R shock controls the 150mm of rear travel
  • SRAM SX Eagle 1x12 speed drivetrain gives a huge range
  • Mixed 27.5”/29” wheel sizes for a nimbler ride with plenty of traction
  • SRAM Guide RE brakes for powerful speed control
  • Colours: Black / Light Silver / Black, Ice Blue / Black, Oasis / Black
  • The Specialized Levo Alloy is available with 0% APR finance

Drive Information:

  • Motor: Specialized 2.2 offers 90Nm max torque
  • Battery: Specialized M3-500, Integrated battery, 500Wh
  • User Interface: Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, w/Handlebar remote
  • Connectivity: ANT+/Bluetooth, Mission Control App

• Levo’s fully integrated Turbo Full Power 2.2 motor, 500Wh battery, and advanced MasterMind Turbo Control Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.

• The Specialized TCU offers robust design and clever integration to ensure that full control is at your fingertips. Connect to Mission Control to ensure you get the most out of your Turbo Levo, customise your ride modes and use smart control to get the most out of your battery.

• A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in
the rough.

• Levo offers two distinct geometry settings, allowing you to easily dial-in its performance for any riding style and any terrain. Bottom bracket height can be fine-tuned up or down by 7mm.

• Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.

• The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.

 All Tredz bikes are:

  • Fully built & ready to ride
  • Fully checked & tested by Cytech qualified mechanics
  • Available with 0% APR finance on any basket over £99
  • UK price match guarantee
  • 365 day no hassle returns
  • Free delivery in the UK Mainland on a date that suits you

In the box with every Tredz bike is:

  • Free Tredz 9 key trail tool
  • Free Tredz pedal spanner
  • Free basic pedals
  • Tredz drawstring kit bag
  • 16 point quality control check sheet
  • Basic bike setup instructions

Occasionally, without notice, manufacturers change product design and/or specifications.

Specification

Frame:Specialized M5 premium alloy, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing
Fork:RockShox 35 Silver, 35mm stanchion, Turnkey damper, S1: 150mm travel, S2-S6: 160mm trave
Rear Shock:RockShox Deluxe Select R, rebound adjust, S1: 52.5x210mm, S2-S6: 55x210mm
Stem:Alloy Trail Stem, 35mm bar bore
Bars:Alloy, 35mm diameter, 780mm width, 8-degree backsweep, 6-degree upsweep
Front Brake:SRAM Guide RE, S1-S3: 200mm, S4-S6: 220mm
Rear Brake:SRAM Guide RE, 200mm
Rear Mech:SRAM SX Eagle, 12-speed
Shifters:SRAM SL SX Eagle, 12-speed
Rims:Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Front Hub:Alloy, sealed cartridge bearings, 15x110mm thru-axle, 32h
Rear Hub:Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Spokes:DT Swiss Industry
Front Tyre:Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
Rear Tyre:Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Seat Post:TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm
Saddle:Body Geometry Bridge Saddle, steel rails
Chainset:Praxis forged M30, custom offset, 160mm, 32T
Chain:SRAM SX Eagle, 12-speed
Cassette:SRAM NX Eagle PG-1230, 12-speed, 11-50t
Battery (Wh):Specialized M3-500, Integrated battery, 500Wh
Motor:Specialized Turbo Full Power System 2.2 Motor
User Interface:Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote

Reviews and Q&As disabled

Customer reviews and Q&As are disabled because you declined functional cookies.

To enable reviews and Q&As click the 'Cookie Settings' button below and enable functional cookies.

Turbo Levo Sizing & Geometry

Specialized Logo

Specialized Turbo Levo 2022 Size Chart

Size

Height (Cm)

Height (feet)

S1

150 - 160

4’11” – 5’3”

S2

157 – 173

5’2” – 5’8”

S3

165 – 5’11

5’5” – 5’11”

S4

173 – 188

5’8” – 6’2”

S5

178 – 193

5’10” – 6’4”

S6

188 - 203

6’2 – 6’8”



Specialized Turbo Levo 2022 Geometry Chart



S1

S2

S3

S4

S5

S6

Crank Length

160mm

160mm

160mm

160mm

160mm

160mm

Stem Length

40mm

40mm

50mm

50mm

50mm

50mm

Seatpost Length

100mm

125mm

150mm

170mm

170mm

190mm

Saddle Width

155mm

155mm

143mm

143mm

143mm

143mm

Handlebar Width

780mm

780mm

780mm

780mm

780mm

780mm

Reach

412mm

432mm

452mm

477mm

502mm

532mm

Stack

605mm

617mm

626mm

635mm

644mm

653mm

Wheelbase

1179mm

1200mm

1225mm

1255mm

1284mm

1318mm

Chainstay Length

442mm

442mm

442mm

442mm

442mm

442mm

Front Centre

738mm

760mm

784mm

814mm

843mm

878mm

BB Drop

25mm

27mm

27mm

27mm

27mm

27mm

BB Height

352mm

350mm

350mm

350mm

350mm

350mm

Seat Tube Angle

78°

77.2°

76.7°

76.2°

76.2°

76.2°

Seat Tube Length

380mm

390mm

405mm

425mm

445mm

465mm

Bike Standover Height

752mm

776mm

783mm

787mm

788mm

790mm

Headtube Length

105mm

105mm

115mm

125mm

135mm

145mm

Min Seatpost Insertion

80mm

80mm

80mm

80mm

80mm

80mm

Max Seatpost Insertion

210mm

220mm

240mm

255mm

275mm

295mm

Fork Rake/Offset

44mm

44mm

44mm

44mm

44mm

44mm

Trail

130mm

130mm

130mm

130mm

130mm

130mm

Headtube Angle

64.5°

64.5°

64.5°

64.5°

64.5°

64.5°

Fork Length (Full)

557mm

567mm

567mm

567mm

567mm

567mm

What size frame do I need if I am between sizes? - read here

Please note, all size information is provided as a guide - if you're unsure or need any further assistance you can call us on 01792 799508 ... we're happy to help!

Electric MTB Guide



Electric Mountain Bike Guide

Is an Electric Mountain Bike Right for Me?

If you’re new to the cycling world, we highly recommend taking a look at our bike buying guide overview. This electric bike buying guide is here to help you decide what type of e bike is right for you.

When you’re choosing an electric mountain bike, there are a few things to look out for, which can help you to work out the quality and performance to expect from a particular model.


Usage & Suspension travel

Just like a regular full suspension or hardtail mountain bike, the amount of available suspension travel on an eMTB varies with the intended use. Depending on the type of mountain bike riding you’ll be doing, you’ll want a bike with longer or shorter suspension travel as well as components suited to more or less technical terrain.

Type

Travel

Usage

Pros

Cons

Hardtail

Up to 130mm travel fork

Cross-country and trail

Nimble handling more affordable than a full suspension eMTB

Hardtails are less capable on rough and demanding trails with large jumps and drops

Full Suspension – short travel

120mm – 150mm

Trail and cross-country

Well balanced for both climbing and descending

Less capable on challenging descents than a longer travel bike

Full Suspension – long travel

150mm +

Enduro, trail and downhill

More capable on rough, steep and technical descents, including DH and enduro tracks

Heavier and less manoeuvrable on tight trails. More cumbersome on the climbs





Type / Travel / Usage

Pros

Cons

Hardtail

Up to 130mm travel fork

Cross-country and trail

Nimble handling more affordable than a full suspension eMTB

Hardtails are less capable on rough and demanding trails with large jumps and drops

Full Suspension – short travel

120mm – 150mm

Trail and cross-country

Well balanced for both climbing and descending

Less capable on challenging descents than a longer travel bike

Full Suspension – long travel

150mm +

Enduro, trail and downhill

More capable on rough, steep and technical descents, including DH and enduro tracks

Heavier and less manoeuvrable on tight trails. More cumbersome on the climbs






Frame Material

Most electric mountain bike frames are made from aluminium alloy, although some are made from carbon fibre composite.

Aluminium

Aluminium alloy is lightweight, stiff, strong. Manufacturers often develop their own aluminium alloys, such as ALUXX by Giant. Aluminium is found on a wide range of e bikes, from entry-level and enthusiast bikes, right the way up to top-spec eMTBs.

Carbon Fibre

Carbon fibre is lighter, stiffer, stronger, and more expensive than aluminium. The main benefit for electric mountain bikes is that carbon frames are stiffer for improved handling.


Drive Tech

Designed to enable you to have more fun on the trails, all of our electric mountain bikes feature powerful crank drive motors with long lasting lithium-ion battery packs and easily accessible control units.

Motor

Crank drive motors boost your natural pedalling power. The cranks are connected to the motor and the motor is connected to the chainring which then powers the bike forward. The bike senses the pressure that you put though the pedals and then adds an appropriate level of power to make pedalling easier. This additional power is delivered seamlessly, and you will feel like your legs have just become much more powerful. Motors all have a nominal 250w output and are usually provided by big component manufacturers like Bosch, Shimano, Yamaha and Brose.

Illustration showing a electric motor on a electric bike

Battery

Easily charged either on or off the bike the lithium-ion battery pack will offer you long lasting assistance. Where and how you ride will make a big difference to the range that you can expect to achieve from a single charge, but most e bikers find the capacity of these batteries to be more than sufficient. Some brands offer innovative ways to integrate the battery within the frame. 400Wh or 500Wh batteries are most common.

Illustration showing a battery mounted to a ebike frame

Control Units

All electric mountain bikes allow you to adjust the amount of power the motor delivers. This helps to help you manage the battery capacity. Control units have some kind of display that, at the very least, shows remaining battery capacity and the current power mode. Some control units feature a handlebar mounted display unit that displays additional information like estimated range and satellite navigation prompts. Many eMTBs offer Bluetooth and ANT+ connectivity with smartphone apps for fine tuning the motor output and accessing more advanced features.

Illustration showing a heads up display mounted to the handlebars

Groupset

An electric mountain bike’s groupset, is where the biggest difference in component quality is seen. A complete groupset comprises of the following parts:

  • Chainset (aka Crankset)
  • Bottom bracket
  • Brakes
  • Brake levers
  • Shifter
  • Derailleur
  • Chain
  • Cassette
 Shimano LogoSRAM Logo
Professional
11
XTR Di2
12
XX1 AXS Eagle
AXS Eagle

12
X01 AXS Eagle
AXS Eagle

12
XTR
11
XX1

11
X01

11
XT Di2

Enthusiast
12
XT

11
SLX
10
GX

10
Deore
11
NX
Entry
9
Alivio
12
SX Eagle
Eagle

9
Acera
9-10
X9

9
Altus
9-10
X7

7
Tourney
7-10
X5





Electric mountain bike groupset components are typically supplied by either Shimano or SRAM, sometimes with additional manufacturers like Magura, Tektro and TRP supplying brake systems. You will mostly find one-by drivetrains with a single front chainring and a wide range rear cassette.

Shimano and SRAM both produce a range of groupsets to suit different budgets. The hierarchy table here compares the different Shimano and SRAM groupsets to determine which bikes offer the best performance.


Wheel Size

Just like regular mountain bikes, e MTBs are available with different wheel sizes. 27.5” (650b) and 29” wheels are both available but the most common e MTB size is 27.5”+ (6fattie) that bridges the gap between the two.

MTB wheel sizes

27.5” (650b) wheels strike the ideal balance between fast rolling and nimble handling. They are lighter than 29” wheels so are faster to accelerate. On the other hand, the smaller wheel size rolls less efficiently than the larger size, making the bike more prone to losing speed over rough ground.

29” wheels roll fastest but are less nimble. These wheels are naturally smoother over rough ground but are heavier and slower to accelerate. Larger riders may find a better fit on a 29er, but smaller riders may find 29” wheels a little cumbersome.

27.5+ (6fattie) wheels feature wider 2.8” – 3.0” tyres and offer more cushioning (float) as well as more grip. With the extra size of the high-volume tyres, the overall wheel diameter is similar to a 29er, so these wheels carry speed very well on rough ground. Plus sized wheels are ideal for electric mountain bikes as they deal best with the extra weight of the motor and battery, and are great for riding more challenging terrain.


Suspension components

Electric mountain bike suspension components (i.e. the fork or rear shock absorber) are also a way to identify the quality of a bike. While Fox and RockShox are the most common manufacturers, there are a number of brands producing suspension components for mountain bikes.

Entry Level eMTBs

Entry level electric mountain bikes (up to approximately £2,500) may come supplied with a fork and rear shock supplied by SR Suntour, X-Fusion or RockShox. These components will allow a limited amount of adjustment, including:

  • Coil spring preload / air spring pressure adjustment.
  • Lockout switch.
  • Rebound damping adjustment on models towards the top of the price range.
Mid-range and enthusiast eMTBs

Mid-range and enthusiast eMTBs (up to approximately £5,000) use components from brands including Fox, RockShox and Manitou. At this level, suspension components have features like:

  • Preload adjustment / air spring pressure adjustment
  • Rebound damping adjustment
  • Lockout switch
  • Multi-position ‘mode’ switch
  • Compression damping adjustment
Top of the range eMTBs

Top of the range electric bikes (over £5,000) also use components from Fox, RockShox and Manitou, with a few select models using parts from high-end suspension brands like Ohlins. At this price, suspension components have features including:

  • Coil spring preload adjustment / air spring pressure adjustment
  • High and low speed rebound damping adjustment
  • High and low speed compression damping adjustment
  • Lockout switch
  • Multi-position ‘mode’ switch
  • Advanced low-friction coatings (e.g. Fox’s golden-coloured Kashima coating)

Finance

How do I apply for finance?

At Tredz, you can spread the cost of your purchase and pay monthly over 6-48 months, interest free (dependent on repayment terms and amount). Finance is provided by Barclays Partner Finance and PayPal Credit with 0% APR finance available on purchases over £250 for Barclays Partner Finance and from £99 for PayPal Credit. Eligibility criteria apply.

1Fill your basket with everything you want from Tredz and go to the checkout.

2During checkout, select the finance option you want as your method of payment.

3You will be sent to our finance provider's secure server to complete your application.

4Finance providers PayPal & Barclays will use the information provided to make a decision and complete checkout if you are approved.

Read more about buying on finance

Barclays Eligibility Checker

You can use the Barclays Eligibility Checker to find out if you are likely to be accepted for a loan through Barclays Partner Finance without affecting your credit score.

Credit is subject to application, financial circumstances and borrowing history. Tredz is the credit broker and not the lender. Barclays Partner Finance is the lender.

Please note there are some minimum criteria if you later decide to apply for finance, to view please click here

To apply you must:

  • Be at least 18 years old.
  • Be in full time work (16 hours or more a week), retired, or in receipt of disability allowance.
  • Be employed, self-employed or retired with a regular income of more than £500 per month.
  • Have been a UK resident for three years or more.
  • Have a mobile phone number.
  • Have an email address.
  • Have a UK bank account from which Direct Debits can be taken.
  • Be up to date on other credit repayments without recent defaults, County Court Judgments (CCJs) or bankruptcy.
Eligibility Checker *This takes you to the Barclays secure gateway

Flexible finance options

Choose your term.

£5,250.00 Your basket + this product

Lowest 0% interest

£109.38 0% APR

per month

for 48 months

Open Finance Calculator
Barclays Representative Example: If total purchase price is £1,399.00 and your selected term is 36 months 11.9% APR Representative, Annual Interest Rate 11.9% Fixed, you would pay £46.00 per month. Total amount payable will be £1655.83 with a cost of credit of £256.83. Finance is subject to application, financial circumstances and borrowing history. Performance Cycling Limited acts as a credit broker and not the lender, Barclays Partner Finance acts as the lender. Barclays Partner Finance is a trading name of Clydesdale Financial Services Limited, a member of the Barclays group. Clydesdale Financial Services Limited is authorised and regulated by the Financial Conduct Authority (Financial Services Register number: 311753). Registered in England. Registered No: 2901725. Registered Office: 1 Churchill Place, London E14 5HP.
PayPal Credit Representative Example: Representative 21.9% APR (variable), Purchase interest rate 21.9% p.a. (variable), Assumed credit limit £1,200.00.

Delivery & Guarantee

UK Delivery Information

International Deliveries – Temporarily Suspended 11/11/20

Note: We are still offering deliveries to the Isle of Man, Scottish Highlands, Scottish Islands, Channel Islands, Isle of Wight, Jersey and Guernsey.

Courier Delivery update: Due to the COVID19 situation, we are currently experiencing some delays with deliveries. Our couriers are working around the clock to get your order to you as soon as possible but there is a potential delay of up to 48 hours . Please check your tracking on track your order here.

Please download the TNT Track and Trace App for iOS here and Android here so you can keep an eye on your delivery and any further updates.

Please note on the TNT tracking app it may show your delivery status as ‘Collecting’ (as per image below). This means your delivery has left our warehouse and is currently held at TNT main depot and there could be up to a 48 hour delay.

tnt delivery

Please keep checking the TNT tracking for further updates. On behalf of TNT we apologise for any delay and inconvenience this may cause.

We are committed to offering fast and free delivery, whether you're ordering bikes, accessories or clothing. Our standard delivery service is FREE in the UK, regardless of the size and on all orders over £20.

Please note that bulky products and bikes shipped to outlying UK regions are excluded from free shipping.

Please note that Pre-Order dates can sometimes change due to updated stock information.

Click here for more UK and international delivery information.

Returns & Warranty

It's easy to return a product with our 365 day, hassle free returns.

We will give you a full refund on any item that is returned to us unused/unfitted, in a resaleable condition and in its original packaging (where possible).

Please note: For hygiene reasons, we cannot accept returns of facemasks, undershorts or underwear if the item has been removed/unsealed from its original packaging.

If your item develops a fault or arrives damaged, please contact us first so we can resolve the issue for you as quickly as possible.

For more information please visit our Returns & Warranty page.

What's In The Box

What's In The Box

As cyclists ourselves, we know you will be keen to get out on your new bike as soon as possible. That's why we provide you with all the essential kit you need to get your shiny new bike rolling for the first time.

Most bikes don't come with pedals as standard so we include a set of basic pedals, free of charge with every bike we send out. We will also provide you with a pedal spanner to fit them and a 9-key trail tool, along with full instructions for setting your bike up out of the box. Each bike is sent out with a 16 point, quality control check sheet so you can be confident that your bike has been fully checked by our qualified mechanics.

What's in the box What's in the box
  • Basic setup instructions
  • 16 point quality control checklist
  • Free tredz multitool
  • Free tred pedal spanner
  • Free basic pedals
  • Free drawstring kit bag
  • Free bike insurance voucher

All these items are provided at no extra charge and are packed into a Tredz drawstring bag that doubles up as a handy backpack for carrying your ride essentials.

  • Basic bike setup instructions
  • Free ‘basic’ pedals
  • Free Tredz pedal spanner
  • Free Tredz 9-key trail tool
  • Free Tredz drawstring bag
  • Free 14 Days insurance voucher
  • 16 point, quality control check sheet

Tredz Service:

Tredz bikes are fully built & set up to ride
Read our bike setup guide.

Free UK delivery, on a date that suits you
We will ring to choose a suitable day. Find out more
  • Tredz bikes are fully checked & tested by Cytech qualified mechanics
  • 0% APR finance available on any basket over £99
  • 365 day 'no hassle' returns
  • Free UK delivery, on a date that suits you

Show finance options for:

Barclays Eligibility Checker

You can use the Barclays Eligibility Checker to find out if you are likely to be accepted for a loan through Barclays Partner Finance without affecting your credit score.

Credit is subject to application, financial circumstances and borrowing history. Tredz is the credit broker and not the lender. Barclays Partner Finance is the lender.

Please note there are some minimum criteria if you later decide to apply for finance, to view please click here

To apply you must:

  • Be at least 18 years old.
  • Be in full time work (16 hours or more a week), retired, or in receipt of disability allowance.
  • Be employed, self-employed or retired with a regular income of more than £500 per month.
  • Have been a UK resident for three years or more.
  • Have a mobile phone number.
  • Have an email address.
  • Have a UK bank account from which Direct Debits can be taken.
  • Be up to date on other credit repayments without recent defaults, County Court Judgments (CCJs) or bankruptcy.
Eligibility Checker *This takes you to the Barclays secure gateway

Available finance options:

Months / APR Per month

Finance provider options available
