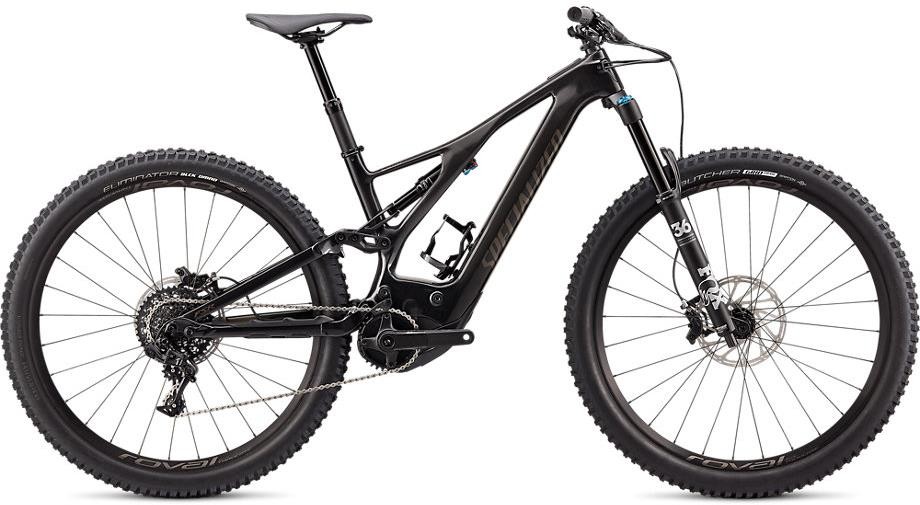

Specialized Turbo Levo Expert Carbon 29" 2020 - Electric Mountain Bike
Here’s where the gloves come off—the Specialized Turbo Levo Expert Carbon e bike sheds serious weight with its advanced carbon front triangle. This high performance electric mountain bike brings a high level of technical capability with a FOX 36 fork and DPS shock.
Key Features:
- FACT 9m Carbon frame with dialled 29er trail geometry
- Fox 36 fork performance offers 150mm of hard charging suspension travel
- Fox Float Performance DPS shock controls the 150mm of rear travel
- SRAM X1 11 speed e bike tuned drivetrain
- Powerful SRAM Code R hydraulic disc brakes
- Sizes: Small, Medium, Large X Large
- Colours: Gloss Carbon/Gun Metal, Spruce/Sage Green
- The Specialized Turbo Levo Expert Carbon is available with 0% APR finance
Drive information:
- Motor: Turbo 2.1, 250W Brose with custom trail tune offers up to 410% assist
- Battery: 700Wh, Turbo M2 series, removable, 3.5hour charge time
- User interface/remote: Turbo Connect Unit / Mission Control for iOS & Android
- Connectivity: ANT+, LEV & Bluetooth compatible
ROWDY DESCENTS. STEEP CLIMBS? HELL. YES.
The Turbo Levo eMTB is a fully-fledged progressive trail bike. We’ve lengthened the reach, kept the chainstays nice and short, and maintained a low center of gravity. Next, we slackened the head angle for more confident descents and steepened the seat angle to improve climbing efficiency. It’s dialed.
MORE POWER, MORE RANGE
The Levo’s Specialized 2.1 motor amplifies your pedaling input by a mind blowing 410%. Our M2 batteries provides you with plenty of range. What’s more, our Mission Control App can handle battery management automatically, ensuring your battery will last as long as you need it to. More power. More miles per ride. More awesome.
Highlights:
- Carbon/M5 alloy Sidearm frame shed weight and adds control.
- Smoothest, most powerful motor on the market.
- Fox 36 Perfomance fork and Float DPS shock with 150mm of travel.
How do we deliver the best possible bang for your buck? We shed serious weight by going with a carbon front triangle and kept costs down with the addition of an M5 premium aluminum alloy rear-end, making the Levo Expert not only lightweight but also stiff and responsive. We designed this bike to shred and that meant giving the Levo a low bottom bracket, lengthy top tube, and short chainstays. We also tweaked the kinematics of the frame to make the suspension more supple on small hits and yet perfectly capable of taking the big hits without bottoming out.
- The FOX FLOAT DPS Performance offers up 150mm of stiction-free performance as well as a 3-position compression-damping aduster.
- FOX's 36 Performance fork brings the flex-free handling and supple stroke that the 36 is famous for, as well as on-the-fly tuning courtesy of its 3-position, micro-adjust compression damper.
- The custom Specialized 2.1 motor represents the pinnacle of e-bike motor technology. The new motor is more efficient, 15% smaller, and 11% lighter than its predecessor. It has many other features that no other e-bike can touch, like instant engagement, fantastic heat management, a double freewheel design that disengages the gear box when you hit top speed, and silent, smooth, and consistent output—even at max power.
- The Levo’s Turbo Connect Unit (or “TCU”) is more than an “On-Off” button—it’s the brains of the bike. The TCU shows your battery level and power-assist mode. It also communicates, via ANT+/Bluetooth®, with our optional handlebar display to display even more information about your day’s ride.
- This Turbo’s new Specialized M2-series battery features a 700Wh capacity, which increases your range by a staggering 40%. We integrated that battery seamlessly iinside the frame and made it easy to remove with a single hex wrench.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
Specialized Turbo Levo Sizing and Geometry
|
S |
M |
L |
XL |
Rider Height (Inch) |
5’2 – 5’5” |
5’5 – 5’10” |
5’10 – 6’1” |
6’1 – 6’4” |
Ride Height (cm) |
158 - 165 |
165 - 178 |
178 - 185 |
185 – 193 |
Turbo Levo Geometry
S | M | L | XL | |
---|---|---|---|---|
CRANK LENGTH | 165mm | 165mm | 165mm | 165mm |
STEM LENGTH | 40mm | 40mm | 50mm | 50mm |
SEATPOST LENGTH | 369mm | 429mm | 429mm | 429mm |
SADDLE WIDTH | 155mm | 143mm | 143mm | 143mm |
HANDLEBAR WIDTH | 780mm | 780mm | 780mm | 780mm |
REACH | 415mm | 435mm | 455mm | 480mm |
TOP TUBE LENGTH, HORIZONTAL | 577mm | 600mm | 631mm | 664mm |
STACK | 606mm | 606mm | 634mm | 647mm |
WHEELBASE | 1182mm | 1202mm | 1235mm | 1266mm |
CHAINSTAY LENGTH | 455mm | 455mm | 455mm | 455mm |
FRONT CENTER | 729mm | 749mm | 781mm | 812mm |
BB DROP | 27mm | 27mm | 27mm | 27mm |
BB HEIGHT | 347.5mm | 347.5mm | 347.5mm | 347.5mm |
SEAT TUBE ANGLE | 75.04° | 74.79° | 74.48° | 74.14° |
HEAD TUBE ANGLE | 66° | 66° | 66° | 66° |
SEAT TUBE LENGTH | 380mm | 410mm | 455mm | 505mm |
HEAD TUBE LENGTH | 95mm | 95mm | 125mm | 140mm |
BIKE STANDOVER HEIGHT | 760mm | 760mm | 781mm | 787mm |
FORK RAKE/OFFSET | 51mm | 51mm | 51mm | 51mm |
FORK LENGTH, FULL | 560mm | 560mm | 560mm | 560mm |
TRAIL | 111mm | 111mm | 111mm | 111mm |
Turbo Levo SL Geometry
|
S |
M |
L |
XL |
Stack (mm) |
606 |
606 |
633 |
647 |
Reach (mm) |
415 |
435 |
455 |
480 |
Head-Tube Length (mm) |
95 |
95 |
125 |
140 |
Head-Tube Angle (degrees) |
66 |
66 |
66 |
66 |
B-B Height (mm) |
348 |
348 |
348 |
348 |
B-B Drop (mm) |
27 |
27 |
27 |
27 |
Trail (mm) |
111 |
111 |
111 |
111 |
Fork Length (full) (mm) |
560 |
560 |
560 |
560 |
Fork Rake/Offset (mm) |
51 |
51 |
51 |
51 |
Front-Center (mm) |
729 |
749 |
781 |
812 |
Chain-Stay Length (mm) |
437 |
437 |
437 |
437 |
Wheelbase (mm) |
1165 |
1185 |
1217 |
1248 |
Top-Tube Length (horizontal) (mm) |
574 |
597 |
629 |
663 |
Bike Stand-Over Height (mm) |
787 |
790 |
807 |
814 |
Seat-Tube Length (mm) |
390 |
410 |
455 |
505 |
Seat-Tube Angle (degrees) |
75.3 |
75 |
74.6 |
74.2 |
Crank Length (mm) |
165 |
165 |
170 |
170 |
Handlebar Width (mm) |
780 |
780 |
780 |
780 |
Stem Length (mm) |
40 |
40 |
50 |
50 |
Saddle Width (mm) |
155 |
143 |
143 |
143 |
Seatpost Length (mm) |
375 |
438 |
438 |
478 |
Turbo Levo Hardtail Geometry
XS | S | M | L | XL | |
---|---|---|---|---|---|
CRANK LENGTH | 165mm | 165mm | 165mm | 165mm | 165mm |
STEM LENGTH | 45mm | 45mm | 60mm | 60mm | 60mm |
SEATPOST LENGTH | 350mm | 350mm | 350mm | 400mm | 400mm |
SADDLE WIDTH | 155mm | 143mm | 143mm | 143mm | 143mm |
HANDLEBAR WIDTH | 720mm | 750mm | 750mm | 750mm | 750mm |
REACH | 385mm | 400mm | 420mm | 440mm | 458mm |
TOP TUBE LENGTH, HORIZONTAL | 568mm | 574mm | 608mm | 633mm | 655mm |
STACK | 598mm | 607mm | 616mm | 630mm | 644mm |
WHEELBASE | 1121mm | 1140mm | 1164mm | 1190mm | 1213mm |
CHAINSTAY LENGTH | 450mm | 450mm | 450mm | 450mm | 450mm |
BB DROP | 55mm | 55mm | 55mm | 55mm | 55mm |
BB HEIGHT | 308mm | 308mm | 308mm | 308mm | 308mm |
HEAD TUBE ANGLE | 67° | 67° | 67° | 67° | 67° |
HEAD TUBE LENGTH | 100mm | 110mm | 100mm | 115mm | 130mm |
SEAT TUBE ANGLE, EFFECTIVE | 74° | 74° | 73° | 73° | 73° |
SEAT TUBE LENGTH, CENTER TO TOP | 390mm | 394mm | 434mm | 470mm | 505mm |
FORK LENGTH, FULL | 510mm | 510mm | 530mm | 530mm | 530mm |
STANDOVER HEIGHT | 688mm | 756mm | 786mm | 812mm | 838mm |
