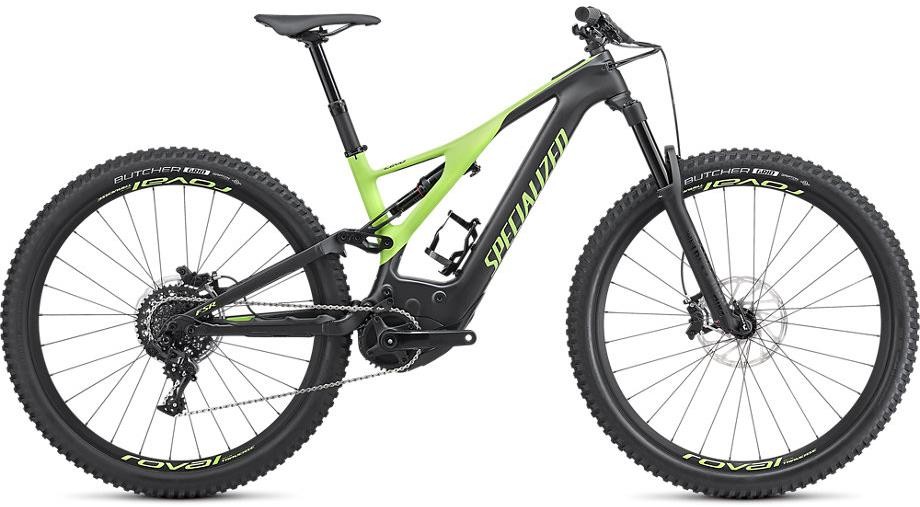

Specialized Turbo Levo Expert FSR 29er 2019 - Electric Mountain Bike
The power to ride even more trails. The Specialized Turbo Levo Expert FSR is an electric mountain bike that features a brand-new frame with an updated motor and a very high capacity 700Wh battery pack. With improved trail geometry and kinematics inspired by the Stumpjumper, the Levo Expert offers an incredibly confident ride. With more power than ever before you can have more e bike fun.
Key Features:
- FACT 9M frame with alloy rear stays, redesigned for improved performance
- RockShox Pike RC fork offers 150mm of bump soaking suspension travel
- RockShox Deluxe RT3 shock controls the 150mm of rear wheel travel
- SRAM X1 1x11 speed drivetrain for reliable shifting
- SRAM Code R hydraulic disc brakes for powerful stopping
- 29” Roval Traverse wheels with wide 2.6” Butcher tyres
- Sizes: Small, Medium, Large, X Large
- Colour: Rocket Red/Black, Blue Tint/White
- The Specialized Turbo Levo Expert FSR 29er is available with 0% APR finance
Drive Information:
- Motor: Turbo 2.1 250W Brose with custom trail tune offers up to 410% assist
- Battery: Turbo M2 series, 700Wh, removable, 3.5hour charge time
- User interface/remote: Turbo Connect Unit / Mission Control for iOS & Android
- Connectivity: ANT+, LEV & Bluetooth compatible
The new Turbo Levo Expert FSR takes all of the “get gnarly” attributes of our newest trail bikes—like perfectly-tuned kinematics, a true Trail Geometry, and an optimally-stiff frame—and adds in cutting-edge tech the likes of which the e-MTB world has never seen. We're talking a new custom motor, a higher-capacity battery, and much, much more. So yeah, it gives you the power to ride more trails, but it does so in a way that's better than we ever could have ever imagined.
Highlights:
- The Turbo Levo FSR frame is constructed with a FACT 9m carbon fibre chassis and an M5 Premium aluminium rear-end, making it not only lightweight but also stiff and responsive. The design includes our 29 Trail Geometry that includes a low bottom bracket, lengthy top tube, and short chainstays. Kinematics of the frame have also been perfected, along with rider-tuned stiffness. Cable routing is all internal, including that of the Command Post IR, while the battery is fully integrated in the down tube, while the minimalist motor is mounted in a more secure, lighter way.
- The custom Specialized 2.1 Rx Trail-tuned motor is more efficient, 15% smaller, and 11% lighter than its predecessor. This successfully places it at the top of e-bike motor technology. It has many other features that no other e-bike can touch, like instant engagement, fantastic heat management, a double freewheel design that disengages the gear box when you hit top speed, and silent, smooth, and consistent output—even at max power.
- This Turbo’s new Specialized M2-series battery features a 700Wh capacity, providing you with 40% more capacity and range, and even more power to ride more trails. It, of course, still seamlessly integrated inside the frame and is easily removable, too.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on baskets over £99
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
Specialized Turbo Levo Sizing and Geometry
|
S |
M |
L |
XL |
Rider Height (Inch) |
5’2 – 5’5” |
5’5 – 5’10” |
5’10 – 6’1” |
6’1 – 6’4” |
Ride Height (cm) |
158 - 165 |
165 - 178 |
178 - 185 |
185 – 193 |
Turbo Levo Geometry
S | M | L | XL | |
---|---|---|---|---|
CRANK LENGTH | 165mm | 165mm | 165mm | 165mm |
STEM LENGTH | 40mm | 40mm | 50mm | 50mm |
SEATPOST LENGTH | 369mm | 429mm | 429mm | 429mm |
SADDLE WIDTH | 155mm | 143mm | 143mm | 143mm |
HANDLEBAR WIDTH | 780mm | 780mm | 780mm | 780mm |
REACH | 415mm | 435mm | 455mm | 480mm |
TOP TUBE LENGTH, HORIZONTAL | 577mm | 600mm | 631mm | 664mm |
STACK | 606mm | 606mm | 634mm | 647mm |
WHEELBASE | 1182mm | 1202mm | 1235mm | 1266mm |
CHAINSTAY LENGTH | 455mm | 455mm | 455mm | 455mm |
FRONT CENTER | 729mm | 749mm | 781mm | 812mm |
BB DROP | 27mm | 27mm | 27mm | 27mm |
BB HEIGHT | 347.5mm | 347.5mm | 347.5mm | 347.5mm |
SEAT TUBE ANGLE | 75.04° | 74.79° | 74.48° | 74.14° |
HEAD TUBE ANGLE | 66° | 66° | 66° | 66° |
SEAT TUBE LENGTH | 380mm | 410mm | 455mm | 505mm |
HEAD TUBE LENGTH | 95mm | 95mm | 125mm | 140mm |
BIKE STANDOVER HEIGHT | 760mm | 760mm | 781mm | 787mm |
FORK RAKE/OFFSET | 51mm | 51mm | 51mm | 51mm |
FORK LENGTH, FULL | 560mm | 560mm | 560mm | 560mm |
TRAIL | 111mm | 111mm | 111mm | 111mm |
Turbo Levo SL Geometry
|
S |
M |
L |
XL |
Stack (mm) |
606 |
606 |
633 |
647 |
Reach (mm) |
415 |
435 |
455 |
480 |
Head-Tube Length (mm) |
95 |
95 |
125 |
140 |
Head-Tube Angle (degrees) |
66 |
66 |
66 |
66 |
B-B Height (mm) |
348 |
348 |
348 |
348 |
B-B Drop (mm) |
27 |
27 |
27 |
27 |
Trail (mm) |
111 |
111 |
111 |
111 |
Fork Length (full) (mm) |
560 |
560 |
560 |
560 |
Fork Rake/Offset (mm) |
51 |
51 |
51 |
51 |
Front-Center (mm) |
729 |
749 |
781 |
812 |
Chain-Stay Length (mm) |
437 |
437 |
437 |
437 |
Wheelbase (mm) |
1165 |
1185 |
1217 |
1248 |
Top-Tube Length (horizontal) (mm) |
574 |
597 |
629 |
663 |
Bike Stand-Over Height (mm) |
787 |
790 |
807 |
814 |
Seat-Tube Length (mm) |
390 |
410 |
455 |
505 |
Seat-Tube Angle (degrees) |
75.3 |
75 |
74.6 |
74.2 |
Crank Length (mm) |
165 |
165 |
170 |
170 |
Handlebar Width (mm) |
780 |
780 |
780 |
780 |
Stem Length (mm) |
40 |
40 |
50 |
50 |
Saddle Width (mm) |
155 |
143 |
143 |
143 |
Seatpost Length (mm) |
375 |
438 |
438 |
478 |
Turbo Levo Hardtail Geometry
XS | S | M | L | XL | |
---|---|---|---|---|---|
CRANK LENGTH | 165mm | 165mm | 165mm | 165mm | 165mm |
STEM LENGTH | 45mm | 45mm | 60mm | 60mm | 60mm |
SEATPOST LENGTH | 350mm | 350mm | 350mm | 400mm | 400mm |
SADDLE WIDTH | 155mm | 143mm | 143mm | 143mm | 143mm |
HANDLEBAR WIDTH | 720mm | 750mm | 750mm | 750mm | 750mm |
REACH | 385mm | 400mm | 420mm | 440mm | 458mm |
TOP TUBE LENGTH, HORIZONTAL | 568mm | 574mm | 608mm | 633mm | 655mm |
STACK | 598mm | 607mm | 616mm | 630mm | 644mm |
WHEELBASE | 1121mm | 1140mm | 1164mm | 1190mm | 1213mm |
CHAINSTAY LENGTH | 450mm | 450mm | 450mm | 450mm | 450mm |
BB DROP | 55mm | 55mm | 55mm | 55mm | 55mm |
BB HEIGHT | 308mm | 308mm | 308mm | 308mm | 308mm |
HEAD TUBE ANGLE | 67° | 67° | 67° | 67° | 67° |
HEAD TUBE LENGTH | 100mm | 110mm | 100mm | 115mm | 130mm |
SEAT TUBE ANGLE, EFFECTIVE | 74° | 74° | 73° | 73° | 73° |
SEAT TUBE LENGTH, CENTER TO TOP | 390mm | 394mm | 434mm | 470mm | 505mm |
FORK LENGTH, FULL | 510mm | 510mm | 530mm | 530mm | 530mm |
STANDOVER HEIGHT | 688mm | 756mm | 786mm | 812mm | 838mm |
