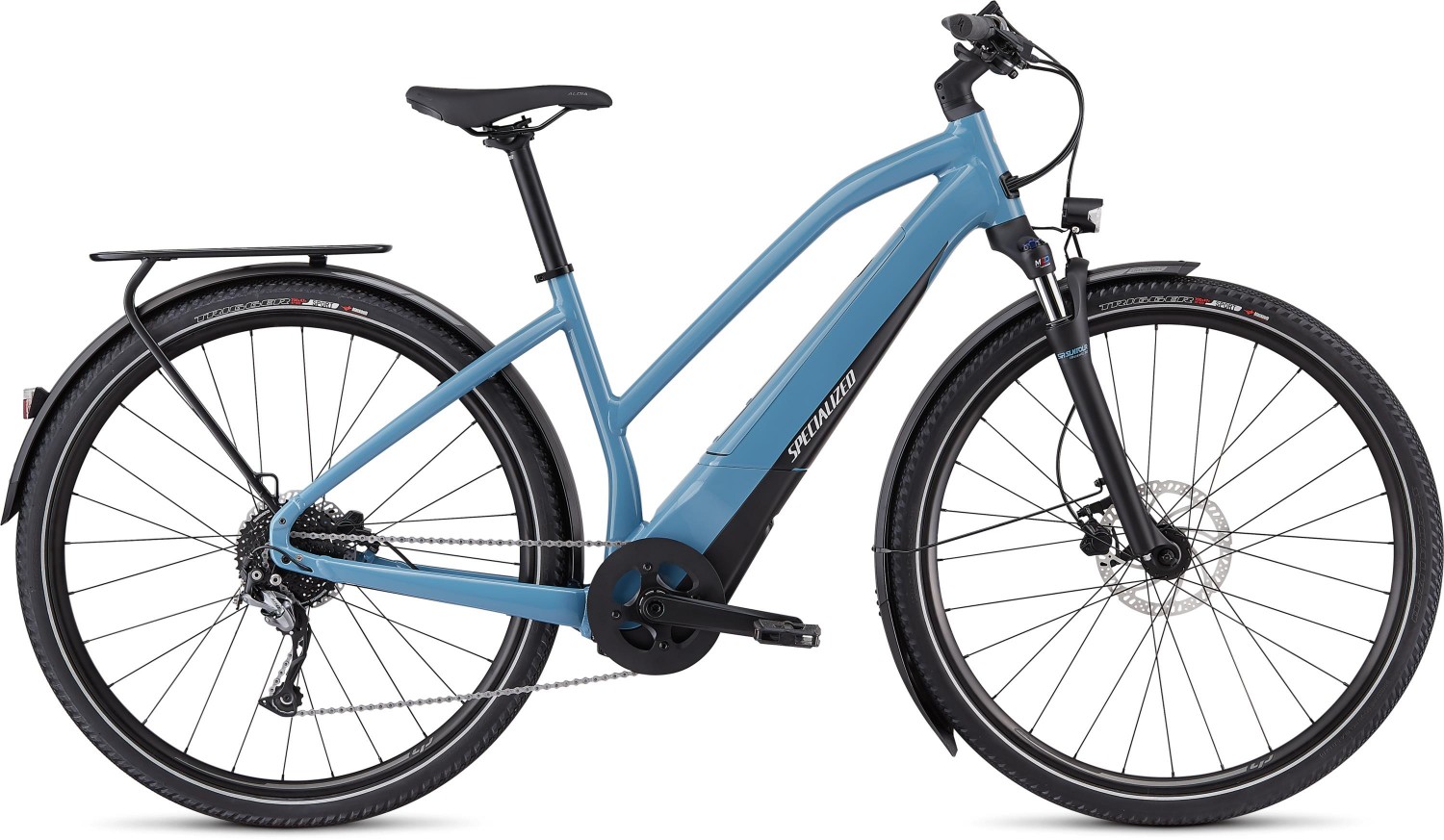

Specialized Turbo Vado 3.0 Step Through 2020 - Electric Hybrid Bike

£2,400.00
Price Match
or £66.60 / month
Finance Options
Be the first to write a review
Sizing
Select a size
Colour
Select your size for Christmas Delivery availability
Add to Basket

Cycle to Work

Product Description

If you can characterise your life as on-the-go, busy, or not having enough time, we made a bike for you—the Specialized Turbo Vado 3.0 Step Through. It's made to accommodate busy lives that are always in movement, which is why we took our award-winning pedal-assist technology and accelerated it well into the future.

Key Features:

  • Step Through E5 alloy frame offers an efficient riding position
  • Suspension fork for a smoother ride
  • Shimano 9 speed drivetrain for easy gear shifting
  • Shimano Hydraulic disc brakes for all-weather stopping power
  • Front and rear lights powered from main battery pack
  • Sizes: Small, Medium, Large, X Large
  • Colours: Storm Grey/Black/Liquid Silver

Drive information:

  • Motor: Specialized 1.2e motor optimised for easy city cycling
  • Battery: 460Wh internal battery pack
  • User Interface / Display: Specialized display and handlebar remote switch
  • Connectivity: Bluetooth smart phone and PC app

Beginning with the integrated Specialized 1.2 E motor, the Turbo Vado proves itself as the ultimate city bike. The 1.2 E uses the same hardware as our 1.2 motor, but it features a tune that prioritizes efficiency. This means less peak torque and maximum output. Of course, it still features a near-silent operating design with our Custom Rx Street Tune that takes the output and makes it the most usable for an urban environment. Think of it this way: The more power you put out, the more power the motor puts out, and this makes accelerations from a standstill at, say, a traffic light both quick and efficient. The belt driven motor is also smooth, silent, and free of annoying vibrations.

For the Vado 3.0, we developed a custom Specialized U1-460 battery that seamlessly integrates into the frame, is lockable, and easily removable for simplified charging. In other words, there's plenty of juice to take you to and from work, a trip to the grocery store, or even to that new café on the other side of the city. If you wish to see exactly how far you can go on a charge, have a look at our Turbo Range Calculator for more exact estimates.

The new wired Turbo Connect Display (TCD-w) is the best way to view data on your Turbo. It not only displays important ride metrics (speed, cadence, rider power, distance, battery level, time, etc.), it also allows you to connect the latest version of the Mission Control App for an enhanced Turbo experience. With our free app for iOS and Android phones, you easily customize motor parameters, control your range, record/upload rides, and perform basic system diagnosis.

To top off all of the innovative features, we chose a worry-free spec that features Shimano 9-speed components, hydraulic disc brakes, front/rear lights, and fender & rack mounts.

Highlights:

  • The Turbo Vado features a lightweight alloy frame that’s been designed with our Fitness/Transportation Geometry.
  • The Turbo Vado’s Specialized 1.2 E motor emphasizes efficiency and range. We also fully integrated it with the frame, and it's been custom-tuned for city riding. It intuitively reacts to the force of your pedaling, so the harder you pedal, the more power it delivers. And with an internal belt drive design, it does this without added vibration for the smoothest and most silent ride possible.
  • We made the custom 460 Wh battery to be fully integrated with the frame, removable for easy charging, and lockable for added security. It communicates with the display and has multiple modes to maximize the overall efficiency and range. For range estimates based upon a variety of variables, please refer to our Turbo Range Calculator.

All Tredz bikes are:

  • Fully built & ready to ride
  • Fully checked & tested by Cytech qualified mechanics
  • Available with 0% APR finance on any basket over £99
  • UK price match
  • 365 day no hassle returns
  • Free delivery in the UK Mainland on a date that suits you

In the box with every Tredz bike is:

  • Free Tredz 9 key trail tool
  • Free Tredz pedal spanner
  • Free basic pedals
  • Tredz drawstring kit bag
  • 16 point quality control check sheet
  • Basic bike setup instructions
  • Free Cycle Plan insurance voucher (8 weeks)

Occasionally, without notice, manufacturers change product design and/or specifications.

Specification

Frame:E5 Aluminum, bottom bracket motor mount, Fitness/Transportation Geometry, fully integrated & lockable down tube battery, internal cable routing, fender/rack mounts, Smooth Welds
Fork:SR SunTour MOBIE30, custom crown, steel steerer, 9mm open dropout, 50mm of travel
Stem:Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
Bars:Specialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm
Front Brake:Tektro HD-T276, hydraulic disc, 180mm
Rear Brake:Tektro HD-T276, hydraulic disc, 160mm
Rear Mech:Shimano Alivio, Shadow Design, SGS cage, 9-speed
Shifters:Shimano Alivio, 9-speed w/ Optical Gear Display
Speed:9
Rims:700C disc, double-wall alloy, pinned, no eyelets
Front Hub:Specialized 6-bolt disc, ball bearings, 9x100mm spacing, 32h
Rear Hub:Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h
Spokes:DT Swiss Industry
Front Tyre:Trigger Sport Reflect, 700x47mm
Rear Tyre:Trigger Sport Reflect, 700x47mm
Seat Post:Specialized 2-bolt head, forged alloy, 8mm offset, micro-adjust, 30.9mm
Saddle:Specialized Aldia Sport, steel rails, 155mm
Chainset:Custom alloy forged crankarms, 40T
Chain:KMC e9T.NPNP, e-bike chain, 9-speed w/ Missing Link
Cassette:Shimano CS-HG200, 9-speed, 11-36t
Pedals:Specialized Commuter w/ grip tape & reflectors
Battery (Wh):460Wh
Motor:Specialized 1.2 E, custom Rx Street-tuned motor, 250W nominal

There are currently no customer reviews

Write your own review

Turbo Vado Sizing

Specialized Women’s Turbo Vado Sizing

See the table below to find the right size Specialized Women’s Turbo Vado.

Height

Sizes

5’1”

155cm

S







5’2”

158cm

S







5’3”

160cm

S







5’4”

163cm

S







5’5”

165cm

S

M





5’6”

168cm



M





5’7”

170cm



M





5’8”

173cm



M





5’9”

175cm



M





5’10”

178cm



M

L



5’11”

180cm





L



6’0”

183cm





L



6’1”

185cm





L

XL

6’2”

188cm







XL

6’3”

191cm







XL

6’4”

193cm







XL



Turbo Vado Step Through Geometry



S

M

L

XL

CRANK LENGTH

170mm

170mm

175mm

175mm

STEM LENGTH

60mm

75mm

75mm

90mm

SEATPOST LENGTH

300mm

350mm

400mm

400mm

SADDLE WIDTH

155mm

155mm

155mm

155mm

HANDLEBAR WIDTH

680mm

680mm

680mm

680mm

REACH

396mm

404mm

428mm

441mm

STACK

619mm

629mm

629mm

652mm

WHEELBASE

1116mm

1127mm

1152mm

1173mm

CHAINSTAY LENGTH

478mm

478mm

478mm

478mm

FRONT CENTER

647mm

658mm

683mm

704mm

BB DROP

-70mm

-70mm

-70mm

-70mm

HEAD TUBE ANGLE

70°

70°

70°

70°

HEAD TUBE LENGTH

145mm

145mm

155mm

170mm

SEAT TUBE LENGTH, BB CENTER TO TOP VERTICAL

400mm

450mm

485mm

535mm

FORK RAKE

44mm

44mm

44mm

44mm

STANDOVER HEIGHT

715mm

720mm

727mm

744mm

TRAIL

86mm

86mm

86mm

86mm

Please note, all size information is provided as a guide - if you're unsure or need any further assistance you can call us on 01792 799508 ... we're happy to help!

Electric Urban Bike Guide



Electric Urban Bike Guide

Is an Electric Urban Bike Right for Me?

If you are new to the world of cycling and ebikes, our electric bike buyers guide will give you a good overview of the different types of pedal assist bikes. This will help you decide if an electric urban bike is right for you.

E bikes are a great way to cycle further with less effort. Urban electric bikes are designed to be comfortable, practical and efficient on roads and cycle tracks. This means that urban e bikes are perfect for commuting and getting about town as well as effortless cycling on quiet roads and cycle tracks.


How do E Bikes Work?

All our ebikes are pedal assist models. This means that the electric motor adds to your natural pedalling power, making them easier to ride. The effect is seamless, and you will feel the extra boost from the first pedal stroke. The harder you pedal the more the power the motor gives you. When you stop pedalling the motor stops too.

You can vary the amount of power that the drive unit delivers when you pedal. All you need to do is select one of the different power modes using the display unit or power button. Some e bikes allow you to customize these modes through a smart phone app that connects to the bike through Bluetooth.

By law all pedal assist ebike are limited to only offer assistance up to 15.5mph. This means that you can ride an ebike everywhere that you can ride a regular bike. You can of course ride faster, but you will have to rely solely on your own natural pedalling power at speeds over 15.5mph.



Are the motors different?

Hub drive motors

Hub drive motors sit inside the wheel hub. These motors are lighter weight than crank drive units but are less powerful, and the power is applied more subtly. You still get enough power to climb the hills and accelerate from a standing start easily, and once up to speed these bikes are easier to pedal. Because they produce less power, hub drive ebikes tend to have smaller battery packs that can be hidden in the frame more easily.

Crank drive motors

Crank drives use a more powerful motor that sits in the bottom bracket area of the bike. The power is added directly to the drivetrain through the cranks. The added power is much more noticeable on a crank drive bike and you will be able to power up the climbs like a Pro athlete. Of course, you can always turn down the amount of power that the motor delivers. This means that you can extend the range and take advantage of the larger battery packs that these bikes are equipped with.


Batteries

Most e bikes use a lithium Ion battery pack. These hold plenty of charge, offer long lasting performance and are quick to charge. The capacity of the battery varies depending on the model. Battery capacity starts at 200Wh for hub drive bikes and goes up to 500Wh or more on high-end crank drive bikes. The batteries can usually be charged both on and off the bike. A 500Wh battery pack will usually take about 4 hours to charge fully from flat.

See how far you can ride an electric bike


Display and Connectivity

All ebikes have some type of display that allows you to swap between the different power modes. On some bikes the display is minimal with LED lights to show the remaining battery capacity and power modes. Others have screen that show additional ride data as well. The very best displays act like a high-end cycling computer.

Bosch Kiox display on an electric MTB

Which type of electric road bike is best for me?

There are a few different types of urban e bike and each is best for a certain type of cycling. Many come ready fitted with luggage racks and mudguards, but you can fit these accessories to all urban e bikes.

Dutch’ style e bikes

Offering an upright cycling position Dutch style e bikes are comfortable and easy to ride. These bikes are perfect for gentle rides around town. You can visit friends or nip to the shops without looking like a ‘cyclist’.

Hybrid’ style urban e bikes

These bikes are based around the classic hybrid look with a mountain bike style riding position combined with road bike wheels. Hybrid style e bikes offer a sportier riding position, so they are better for cycling on busy streets than a Dutch style e bike.

Flat bar road e bikes

Just like a road e bike but with flat handlebars these bikes offer a very sporty riding position. The flat handlebars mean that they are still easy to navigate through the urban jungle. Fit some mudguards and a rack and these bike are very practical too.

Cargo e bikes

If you want to carry lots of luggage then you can’t beat a cargo e bike for practicality. The pedal assist motor makes lot of sense with a cargo bike. Regular cargo bikes require a lot of muscle power, so this limits their use. You don’t get this problem with a cargo e bike, so everyone can ride one.
