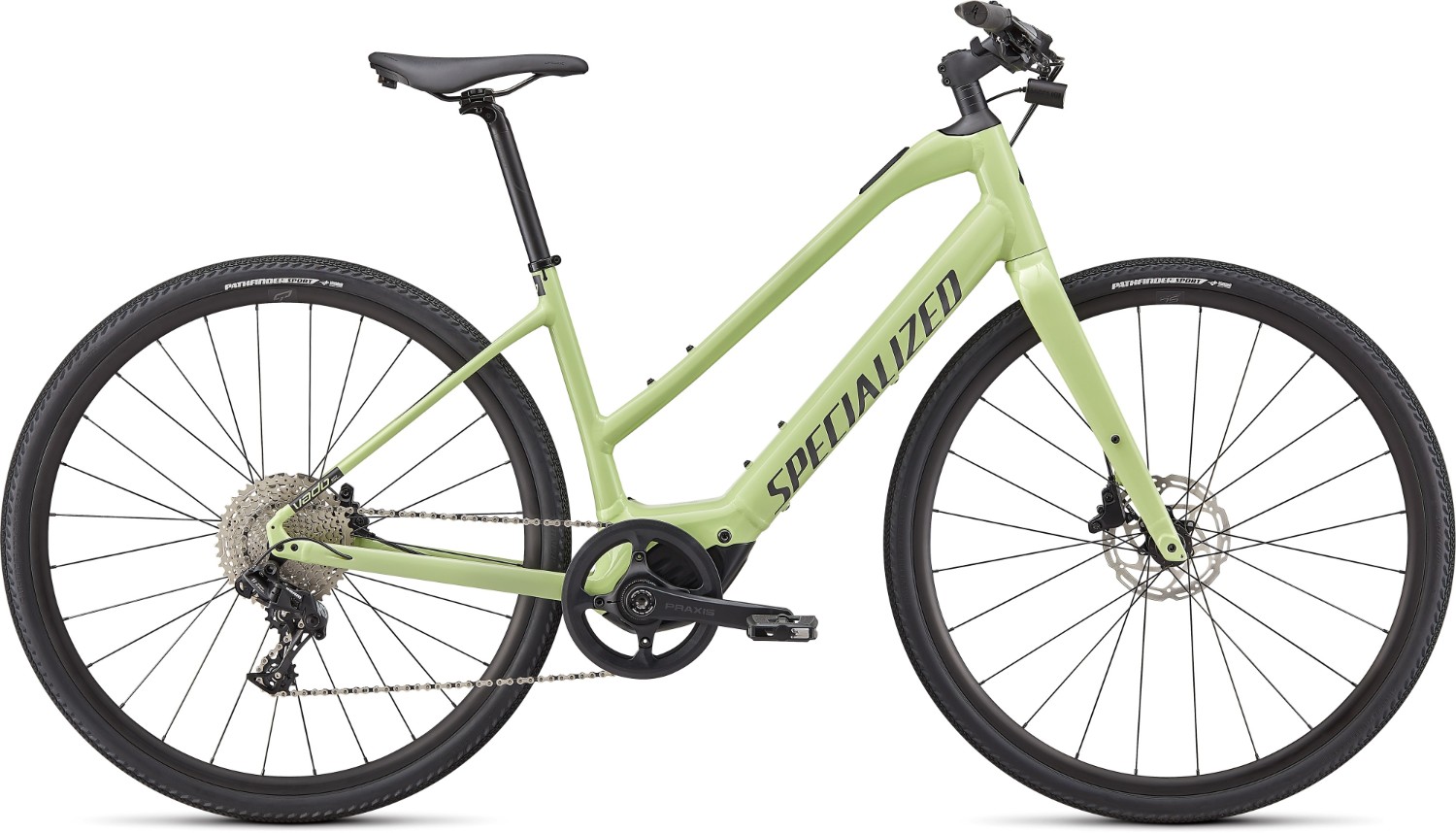

Specialized Turbo Vado SL 4.0 Step-Through 2023 - Electric Hybrid Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | E5 Aluminum, bottom bracket motor mount, fully integrated downtube battery, internal cable routing, fender and front rack mounts, Smooth Welds |
| Fork | Rigid full aluminum disc, Boost™ 12x110mm, front- rack-compatible |
| Stem | Specialized Stealth Stem, alloy, 14 deg, 31.8mm, integrated TCD mount |
| Bars | Specialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm |
| Front Brake | Tektro HD-R290, hydraulic disc, 160mm |
| Rear Brake | Tektro HD-R290, hydraulic disc, 160mm |
| Brake Lever | Tektro HD-R290 |
| Rear Mech | SRAM NX, 11-speed |
| Shifters | SRAM NX, 11-speed |
| Speed | 11 |
| Rims | 700C disc, 22mm rim depth, 21mm internal width |
| Front Hub | Specialized alloy front hub disc, sealed cartridge bearings, 12x110mm, Center Lock™, 24h |
| Rear Hub | Specialized alloy rear hub disc, Center Lock™, sealed cartridge bearings, 12x148mm, 28h |
| Spokes | DT Swiss Industry |
| Front Tyre | Specialized Pathfinder Sport, 700x38c |
| Rear Tyre | Specialized Pathfinder Sport, 700x38c |
| Seat Post | Specialized, alloy, dual-bolt, 25mm offset, 27.2mm |
| Saddle | Bridge Sport, Steel rails, 155mm |
| Chainset | Praxis, Forged alloy M30, custom offset, 44T, 104BCD |
| Bottom Bracket | Integrated |
| Chain | KMC e11S, 11-speed w/ Missing Link™ |
| Cassette | SUNRACE, CSMS7, 11-42t, 11-speed |
| Pedals | Specialized Commuter w/ grip tape & reflectors |
| Weight | 15.5Kg |
| Battery Size (WH) | Specialized SL1-320, fully integrated, 320Wh |
| Motor | Specialized SL 1.1, custom lightweight motor |
| User Interface | Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
