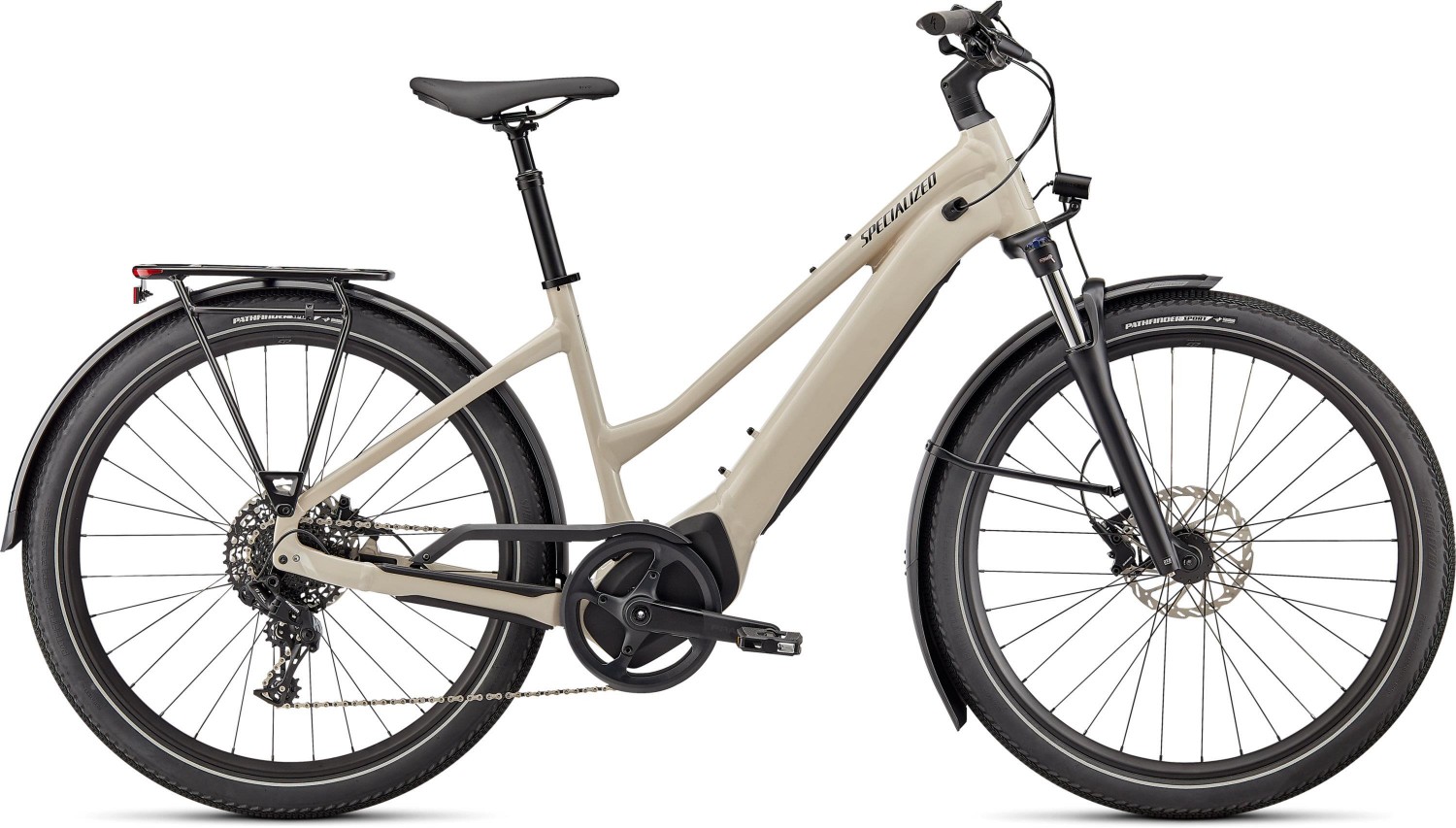

Specialized Vado 4.0 Step Through 2023 - Electric Hybrid Bike
- Turbo Full Power 2.0 motor and 710Wh battery offer an unparalleled riding experience, providing a smooth, seamless, and shockingly quiet amplification of your efforts, up to 28 mph. The integrated controller responds to your pedal inputs resulting in intuitive amplification of your efforts with an incredibly natural feel.
- MasterMind and Mission Control - The MasterMind display reveals all relevant info about your ride, allows real-time tuning of support levels, and enables over-the-air updates so that your bike gets better over time. MasterMind seamlessly integrates with the Mission Control app for range optimization tools, advanced tuning, on-ride diagnostics, and more.
- Proven Smooth Efficiency - We designed a custom testing mechanism to analyze bumps at even the smallest frequency to increase comfort and vision. That precision, paired with a suspended seatpost, higher volume tires, and an 80 mm suspension fork, will flatten roads before your eyes.
- Turbo System Lock - Use the Mission Control app to disable your bike’s motor and activate the motion sensor alarm. Once locked, the motor cannot be enabled again except by the owner.
- Fully Integrated Removable and Lockable Downtube Battery - Easy to charge, easy to secure.
- Equipped with DRYTECH Fenders, LED front and rear lights, and 27kg capacity rear HD Rack. The rear rack is compatible with child bike seats, and the bike is also rated to pull a thru-axle trailer.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | E5 Aluminum, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount |
| Fork | SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount |
| Stem | Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp |
| Bars | Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm |
| Front Brake | SRAM Level, 2-piston caliper, hydraulic disc, 180mm 6-bolt |
| Rear Brake | SRAM Level, 2-piston caliper, hydraulic disc, 180mm 6-bolt |
| Brake Lever | SRAM Level |
| Rear Mech | SRAM NX, 11-speed |
| Shifters | SRAM NX, 11-speed trigger |
| Speed | 11 |
| Rims | 650b disc, double-wall alloy, pinned, 32h |
| Front Hub | Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x100mm thru-axle, 32h |
| Rear Hub | Specialized alloy rear hub disc, sealed cardridge bearings, 6-bolt, 12x148mm thru-axle, 32h |
| Spokes | DT Swiss Industry |
| Front Tyre | Pathfinder Sport Reflect, 650Bx2.3 |
| Rear Tyre | Pathfinder Sport Reflect, 650Bx2.3 |
| Seat Post | Spring suspension, alloy, 40mm travel, 30.9mm, 2-bolt clamp, 34.9mm sleeve |
| Saddle | Rivo Sport, steel rails, 155mm |
| Chainset | Custom alloy forged crankarms, Praxis, 48T, 104BCD |
| Bottom Bracket | Integrated |
| Chain | KMC e11S, 11-speed w/ Missing Link™ |
| Cassette | SRAM PG-1130, 11-speed, 11-42t |
| Pedals | Specialized Commuter w/ grip tape & reflectors |
| Battery Size (WH) | Specialized U2-710, alloy casing, state of charge display, 710Wh |
| Motor | Specialized 2.0, 70Nm torque, custom tuned motor, 250W nominal |
| User Interface | MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
