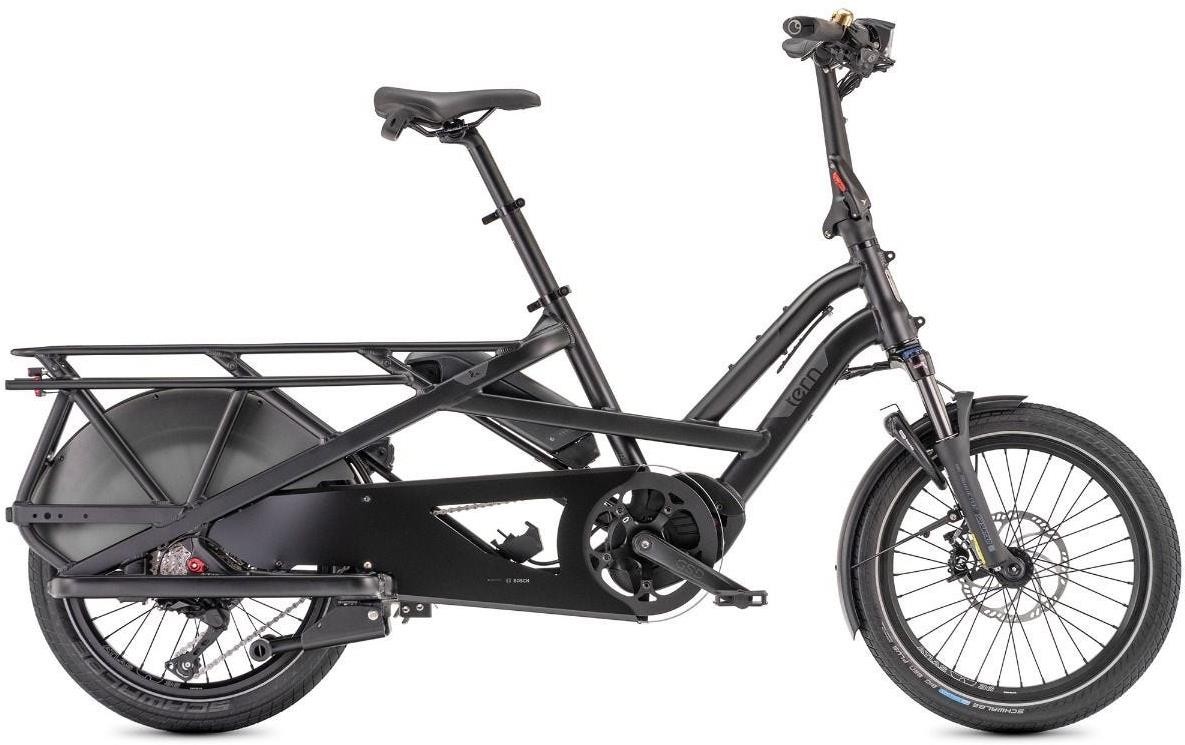

Tern GSD S10 Gen2 Performance CX LR 2023 - Electric Cargo Bike
Still Small. Even More Useful.
With a 200 kg (440 lb) Maximum Gross Vehicle Weight, the GSD is ready to replace your car. It'll let you carry two kids plus groceries, or a whole lot of cargo—but it's the same length as a regular bike. Built-in dual-battery technology lets you ride all day, while space-saving features like FlatFold and Vertical Parking make the GSD incredibly easy to own and use.
Carries Your Family
Our ecosystem of passenger-carrying accessories fits your family—now, and five years from now. Carry two little ones in child seats and watch as they grow into (and out of) the Clubhouse. Give your spouse a lift on date night with the Captain's Chair. Snap a photo of the day your teen graduates to carrying you.
One Size Fits Most
The GSD has an adjustable cockpit that resizes in seconds and without tools to fit riders 150 - 195 cm tall (4'11" - 6'5"), so you can easily share it with your family. The updated frame geometry with a slacker seat tube angle and higher handlebars also means the GSD doesn't just fit—it's more comfortable too.
Cargo-Ready
The GSD is made to fit your life, including all your stuff. Our ecosystem of accessories includes a wide range of cargo-carrying gear designed to keep your loads secure and stable for wobble-free hauling. You may not have thought of using a bike to pick up groceries, home improvement supplies, or plants for your garden—but now you will.
Easy to Manage
The GSD's unique geometry makes for super stable riding, no matter what you're hauling (or how wiggly your kids are). The low center of gravity lets even smaller riders confidently manage heavy loads, and the step-thru frame makes getting on and off the bike a breeze. Plus, we've made it easier for the rider's feet to reach the ground at stops.
- 200 kg (440 lb) Maximum Gross Vehicle Weight
- Bosch® Cargo Line Motor provides up to 85 Nm of torque and 400% support
- Bosch dual-battery system (400Wh) for a range of up to 206 km (128 mi)
- Shimano® Deore 1 x 10-speed hub for smooth, efficient shifting
- Adjustable cockpit comfortably fits riders 150 - 195 cm (4'11" - 6'5")
- Super tough Atlas Lockstand™ auto-locks when engaged—just press a button on the handlebars to unlock
- Heavy-duty frame-integrated rear rack and integrated lower decks
- Powerful and responsive Magura® MT5 eSTOP 4-piston hydraulic disc brakes
- Always-on RearStop™ Brake Light helps you safely signal stops
- Wide range of cargo- and passenger-carrying accessories
- Fits two Thule® Yepp Maxi seats, no adapters needed
- Integrated Abus® Wheel Lock, keyed-alike with the battery
- Upgraded Atlas Wheels with custom CNC machined hubs for extra strength and durability
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg |
Fork | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg |
Headset | Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated |
Stem | Tern Andros, adjustable, forged construction, patented technology |
Bars | Tern Sweep, 6061-AL, Tern Andros adapted |
Front Brake | Magura® MT5 eSTOP 4-piston hydraulic disc brakes |
Rear Brake | Magura® MT5 eSTOP 4-piston hydraulic disc brakes |
Rear Mech | Shimano Deore Shadow+ |
Shifters | Shimano Deore, 1 x 10 spd |
Speed | 1 |
Rims | Tern Atlas, ultra wide 36 mm, dual reinforced joint |
Spokes | Stainless Steel, 13g |
Front Tyre | Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex |
Rear Tyre | Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex |
Seat Post | Tern Telescope, 34.9/30.9 mm, 2014-AL |
Saddle | Tern GSD by Velo, with rear handle |
Chainset | Tern GSD custom, forged 6061-AL DH crankarm |
Bottom Bracket | Motor integrated |
Chain | 10 spd, DHT for eBike, GST corrosion resistant coating |
Cassette | Shimano 11-36T, 10 spd |
Pedals | Urban with non-slip surface, sealed bearings |
Weight | 200 kg (440 lb) Max Gross Weight |
Battery Size (WH) | Bosch Dual Battery system, 400 Wh |
Motor | Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph |
User Interface | Bosch Purion |
Electric Bike Bike Size Chart
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
