Tern Quick Haul D8 Active Plus 20" 2023 - Electric Folding Bike

Name: Tern Quick Haul D8 Active Plus 20" 2023 - Electric Folding Bike
Brand: Tern

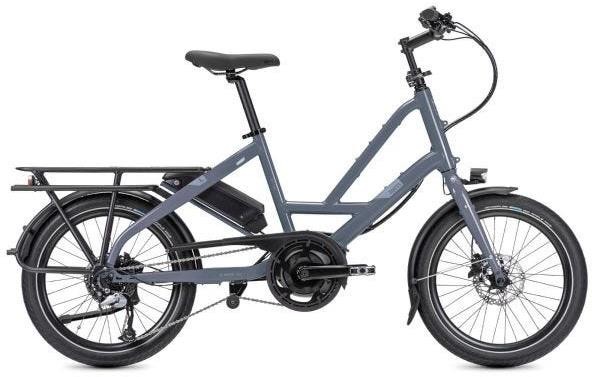

Tern Quick Haul D8 Active Plus 20" 2023 - Electric Folding Bike product image

Simply Capable

The Quick Haul is a built-to-last compact e-bike that’s ready to tackle your daily grind. Think of it as the multitool of e-bikes: small and unassuming enough to be your daily go-to, yet capable of handling big jobs with finesse.

Designed to Be Used—Often

The Quick Haul makes doing stuff by bike practical, easy, and fun—so you’ll reach for it just about every day. It’s designed to help you carry passengers and cargo with ease, and it’s a joy to ride. A compact, space-saving design simplifies storage and transport.

The Carrying Capacity You Need

The short, low-capacity rear racks found on most city bikes limit how much you can do by bike (and make defaulting to a car more likely). The Quick Haul features an extra-long rear rack with a 50-kg (110 lb) capacity, so you can do a lot more—from hauling groceries to giving your kid a lift to school. Add an optional front rack to do both at once.

What Makes it a D8?

Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support

1x8-speed Shimano Altus groupset with trigger shifter

Quick Haul Highlights

Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with optional front rack
Fits riders 150 - 195 cm (4’11” - 6’5”) tall, with adjustable seatpost and Speedlifter stem (no tools required)
Lots of available kid- and cargo-carrying accessories—easily create your perfect setup
Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier
Shimano hydraulic disc brakes for reliable stopping power—even when heavily loaded and riding fast
Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg (331 lb) Maximum Gross Vehicle Weight

Occasionally, without notice, manufacturers change product design and/or specifications.

Frame	Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg
Fork	Cargo, steel, EFBE approved: 150 kg
Headset	TH, cartridge bearings
Stem	Speedlifter, 150 mm extension, 3D Forged stem, 31.8
Bars	Low riser, 31.8, 6061-AL
Front Brake	Shimano, hydraulic disc
Rear Brake	Shimano, hydraulic disc
Brake Lever	Shimano, hydraulic disc
Rear Mech	Shimano Altus Shadow
Shifters	Shimano Altus, 1 x 8 spd, trigger
Speed	8
Rims	Kinetix Comp, for disc
Front Hub	Shimano disc
Rear Hub	Shimano disc
Spokes	Stainless steel
Front Tyre	Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
Rear Tyre	Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
Seat Post	31.6 mm, 6061-AL, micro-adjust clamp
Saddle	Velo Comfort
Chainset	Tern custom, forged 6061-AL crankarm
Bottom Bracket	Motor integrated
Chain	KMC for eBike, 8 spd
Cassette	Shimano 11-34T, 8 spd
Pedals	Urban with non-slip surface
Battery Size (WH)	Bosch PowerPack 400
Motor	Bosch Active Line Plus, 270% Assist, 50 Nm Torque
User Interface	Bosch Purion

Electric Bike Bike Size Chart

Height	e Bike Size	e Road Bike Size	e Mountain Bike Size*
4’8” – 5’1” 143 – 155 cm	XXS	44 cm	13” (33 cm)
5’1” – 5’4” 155 – 163 cm	XS	48 cm	15” (38 cm)
5’4” – 5’7” 163 – 170 cm	S	51 cm	16” (41 cm)
5’7” – 5’10” 170 – 178 cm	M	54 cm	18” (46cm)
5’10” – 6’0” 178 – 183 cm	L	56 cm	19” (48cm)
6’0” – 6’3” 183 – 191 cm	XL	58 cm	20” (51 cm)
6’3” – 6’5” 191 – 196 cm	XXL	60 cm	21” (53 cm)
6’5” – 6’9” 196 – 205 cm	XXXL	62 cm	22” (56 cm)

* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.

See our bike size guide for more on bike sizing
