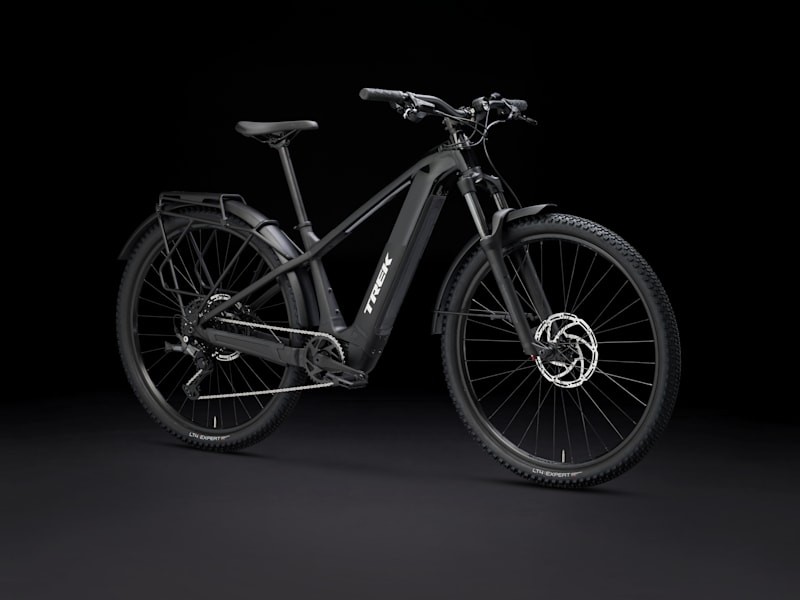

Trek Powerfly+ 4 Equipped 800 Wh Gen 5 2026 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Control Freak internal routing, Motor Armour, Boost148, 12 mm thru axle |
| Fork | SR Suntour XCR 34, air spring, 2CR damper, hydraulic lockout, tapered steerer, 44 mm offset, Boost 110, 15 mm bolt-on thru axle, 120 mm travel |
| Headset | FSA IS-2, 1-1/8" top, 1.5" bottom |
| Stem | Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
| Bars | Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width |
| Front Brake | Tektro HD-M275 hydraulic disc |
| Rear Brake | Tektro HD-M275 hydraulic disc |
| Brake Lever | Tektro HD-M275 hydraulic disc |
| Rear Mech | Shimano CUES U6000 GS |
| Shifters | Shimano U6000, 10-speed |
| Speed | 10 |
| Rims | Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve |
| Front Hub | Shimano TC500 alloy, CentreLock, 110x15 mm thru axle |
| Rear Hub | Shimano TC500 alloy, CentreLock, 148x12 mm thru axle |
| Front Tyre | Bontrager LT4 Expert, reflective strip, wire bead, 60 tpi, 29x2.40" |
| Rear Tyre | Bontrager LT4 Expert, reflective strip, wire bead, 60 tpi, 29x2.40" |
| Seat Post | Bontrager alloy, 31.6 mm, 12 mm offset |
| Saddle | Bontrager Commuter Comp |
| Chainset | FSA Bosch CK-220, 36T ring |
| Chain | Shimano LG500, 9/10/11-speed |
| Cassette | Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed |
| Battery Size (WH) | Bosch PowerTube 800 Wh, smart system |
| Motor | Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC) |
| User Interface | Bosch Purion 200 |
Trek Powerfly+ Gen 5 Size Chart
| Size | Height cm | Height Feet / Inches | Inseam cm | Inseam Inches |
|---|---|---|---|---|
| S | 155 - 165 cm | 5'1" - 5'5" | 74 - 78 cm | 29" - 31" |
| M | 165 - 176 cm | 5'5" - 5'9" | 79 - 83 cm | 31" - 33" |
| L | 177 - 188 cm | 5'10" - 6'2" | 84 - 89 cm | 33" - 35" |
| XL | 188 - 195 cm | 6'2" - 6'5" | 89 - 91 cm | 35" - 36" |
What size frame do I need if I am between sizes? - read here
Trek Powerfly+ Gen 5 Geometry Chart
| Size | S | M | L | XL |
|---|---|---|---|---|
| Stack | 599 | 641 | 655 | 673 |
| Reach | 410 | 440 | 465 | 490 |
| Head Tube Length | 133 | 108 | 123 | 143 |
| Head Tube Angle | 65.5° | 66.5° | 66.5° | 66.5° |
| Bottom Bracket Height | 315 | 315 | 315 | 315 |
| Bottom Bracket Drop | 45 | 65 | 65 | 65 |
| Trail | 116 | 117 | 117 | 117 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 |
| Chainstay Length | 442 | 461 | 461 | 461 |
| Wheelbase | 1151 | 1195 | 1226 | 1259 |
| Top Tube Length (horizontal) | 571 | 612 | 640 | 658 |
| Standover Height | 697 | 747 | 746 | 746 |
| Seat Tube Length | 370 | 400 | 420 | 450 |
| Seat Tube Angle | 73.0° | 73.3° | 73.4° | 74.6° |
| Effective Seat Tube Angle | 75.0° | 75.0° | 75.0° | 76.0° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
