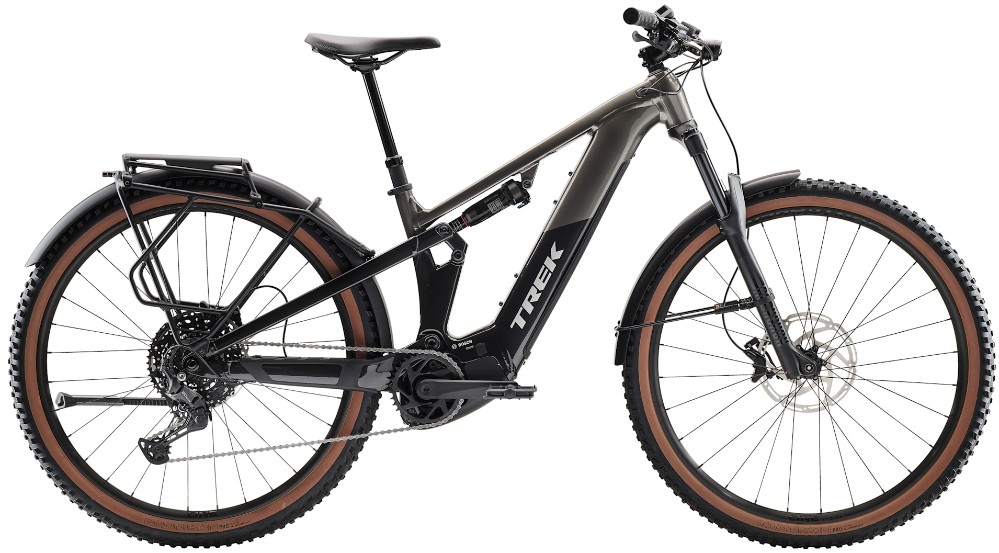

Trek Powerfly FS+ 4 Equipped 800Wh Gen 5 2026 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered headtube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, ABP, UDH, rack and mudguard mounts, Boost 148, 120 mm travel |
| Fork | RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, mudguard mounts, 130 mm travel |
| Rear Shock | RockShox Deluxe Select R, 210x50 mm |
| Headset | FSA IS-2, 1-1/8" top, 1.5" bottom |
| Stem | Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
| Bars | Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width |
| Front Brake | Tektro Gemini SL 4 piston hydraulic brake // Tektro Gemini SL 4 piston hydraulic brake |
| Rear Brake | Tektro Gemini SL 4 piston hydraulic brake // Tektro Gemini SL 4 piston hydraulic brake |
| Brake Lever | Tektro Gemini SL |
| Rear Mech | Shimano CUES U6000 GS |
| Shifters | Shimano U6000, 10-speed |
| Speed | 10 |
| Rims | Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve // Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve |
| Front Hub | Shimano TC500 alloy, CentreLock, 110x15 mm thru axle |
| Rear Hub | Shimano TC500 alloy, CentreLock, 148x12 mm thru axle |
| Front Tyre | Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40" |
| Rear Tyre | Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40" |
| Seat Post | Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm |
| Saddle | Bontrager Commuter Comp |
| Chainset | FSA Bosch CK-220, 36T ring |
| Chain | Shimano LG500, 9/10/11-speed |
| Cassette | Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed |
| Weight | 27.41 kg |
| Battery Size (WH) | Bosch PowerTube 800 Wh, smart system |
| Motor | Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC) |
| User Interface | Bosch Purion 200 |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
