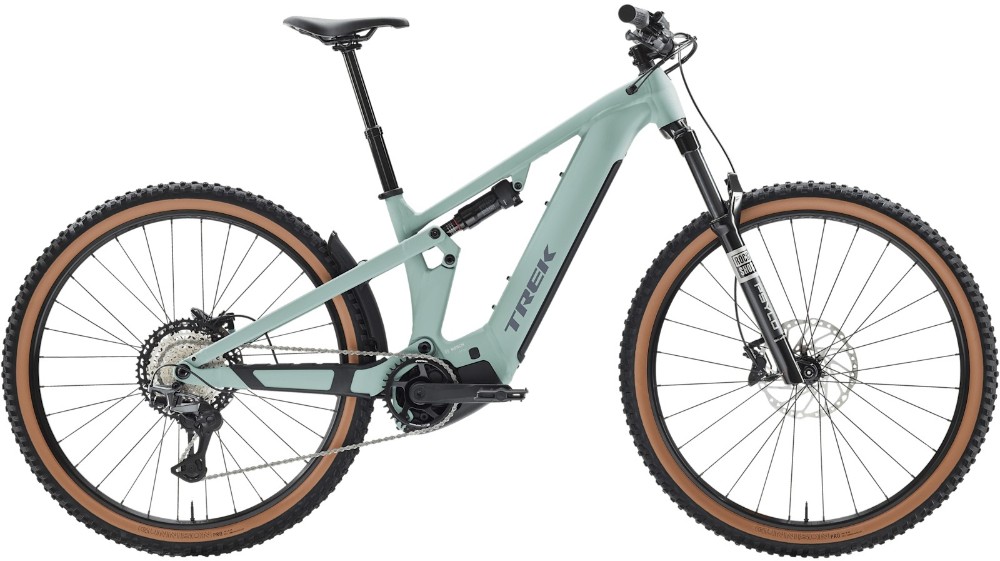

Trek Powerfly FS+ 5 Gen 4 2027 - Electric Mountain Bike

Built for exploring further off-road, the Powerfly FS+ 5 combines 130mm front and 120mm rear travel with Bosch CX assistance. An 800Wh battery, Shimano Deore 12-speed drivetrain and four-piston brakes make it a practical, trail-ready e-MTB.
Key Features:
- Alpha Platinum Aluminium frame with 120mm travel and adjustable geometry
- RockShox Psylo Silver RC Solo Air fork with 130mm travel
- RockShox Deluxe Select rear shock controls 120mm of travel
- Shimano Deore/XT 12-speed drivetrain with wide-range 10-51t cassette
- Shimano BR-MT620 four-piston hydraulic disc brakes
- 29in Bontrager Kovee wheels with 2.4in Gunnison Pro XR tyres
- 170mm TranzX dropper post gives you more room to move on descents
- Available with 0% APR finance
Drive Information:
- Motor: Bosch Performance Line CX Gen 5, up to 100Nm torque
- Battery: Bosch PowerTube 800Wh
- User Interface: Bosch Purion 200 display and handlebar remote
The Powerfly FS+ 5 Gen 4 is designed for riders who want electric assistance for exploring trails, forest tracks and longer off-road routes. Its full-suspension platform takes the edge off rough surfaces, with 130mm of travel at the front and 120mm at the rear providing a useful balance between comfort, control and efficient pedalling.
Trek's Alpha Platinum Aluminium frame includes several features that allow you to adapt the bike to your riding. Mino Link provides adjustable geometry, while the adjustable leverage rate lets you alter the feel of the rear suspension. Trek's ABP suspension design keeps the suspension active under braking, helping the rear wheel track rough ground when you're controlling your speed on a descent.
The Removable Integrated Battery 2.0 system houses the 800Wh battery neatly inside the downtube while allowing it to be removed without tools. This makes charging away from the bike easier and provides straightforward access when required. Rack and mudguard mounts add useful versatility if you want to equip the Powerfly for everyday riding or longer adventures.
Bosch's Performance Line CX drive system provides responsive assistance that adapts to rider input, with strong support particularly useful when climbing steep or loose terrain. The large 800Wh battery complements the full-power motor, providing plenty of capacity for rides with lots of climbing or longer days away from the trailhead.
A Bosch Purion 200 combines the display and controls into a compact handlebar-mounted unit. It puts key information including speed, battery charge and assistance mode within easy view while allowing you to change settings without reaching for a separate display.
RockShox suspension manages rough terrain, with the air-sprung Psylo Silver RC fork allowing pressure to be adjusted for rider weight. At the rear, the Deluxe Select shock works with Trek's suspension platform to improve comfort and help the rear tyre maintain contact with uneven ground.
The Shimano drivetrain combines Deore components with an XT M8100 10-51t cassette. Its broad 12-speed range provides low gearing for steep off-road climbs while retaining useful higher ratios for flatter and faster sections.
Bontrager Gunnison Pro XR 29x2.4in tyres use a dual-compound construction to balance rolling efficiency and grip. They're tubeless ready, as are the Bontrager Kovee rims, giving you the option to remove the inner tubes for improved puncture protection and greater flexibility with tyre pressures.
A 170mm TranzX dropper post lets you quickly lower the saddle before steeper or more technical sections, giving you extra room to move around the bike. Combined with the wide alloy handlebar and four-piston Shimano brakes, it helps make the Powerfly easier to control when the trail becomes more demanding.
With adjustable frame features, a removable high-capacity battery and practical mounting points, the Powerfly FS+ 5 isn't limited to one type of riding. It's a versatile choice for riders who want electric assistance for exploring further off-road while retaining the comfort and control of a full-suspension mountain bike.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered headtube, guided internal routing, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, rack and mudguard mounts, Boost 148, 120 mm travel |
| Fork | RockShox Psylo Silver RC, Motion Control, Solo Air, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 130mm travel RockShox Psylo Silver RC, Motion Control, Solo Air, tapered steerer, 44mm offset, Boost110 |
| Rear Shock | RockShox Deluxe Select, 210x50mm |
| Headset | FSA IS-2, 1-1/8" top, 1.5" bottom |
| Stem | Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree |
| Bars | Bontrager Comp, alloy, 31.8 mm, 40mm rise |
| Front Brake | Shimano BR-MT620 hydraulic disc // Shimano BR-MT620 hydraulic disc Shimano BR-MT620 hydraulic disc // Shimano BR-MT620 hydraulic disc |
| Rear Brake | Shimano BR-MT620 hydraulic disc // Shimano BR-MT620 hydraulic disc Shimano BR-MT620 hydraulic disc // Shimano BR-MT620 hydraulic disc |
| Rear Mech | Shimano Deore M8200, long cage |
| Rims | Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve // Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve |
| Front Hub | Shimano TC500 alloy, CentreLock, 110x15 mm thru axle |
| Rear Hub | Shimano TC500 alloy, CentreLock, 148x12 mm thru axle |
| Front Tyre | Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40" |
| Rear Tyre | Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40" |
| Seat Post | TranzX JD-YSI34, 170 mm travel, internal routing, 31.6 mm |
| Saddle | Bontrager Verse P3, steel rails |
| Chainset | FSA Alloy |
| Chain | Shimano Deore M6100, 12-speed |
| Cassette | Shimano XT M8100, 10-51, 12-speed |
| Pedals | VP-536 nylon platform |
| Battery Size (WH) | 800 |
| Motor | Bosch Performance Line CX (Europe and APAC: 25 km/h, US and ROW: 20 mph / 32 km/h) |
| User Interface | Bosch Purion 200 |
![]()
Trek Powerfly+ FS Gen 4 Size Chart
| Size | Height cm | Height Feet / Inches | Inseam cm | Inseam Inches |
|---|---|---|---|---|
| S | 155 - 165 cm | 5'1" - 5'5" | 74 - 78 cm | 29" - 31" |
| M | 165 - 176 cm | 5'5" - 5'9" | 79 - 83 cm | 31" - 33" |
| L | 177 - 188 cm | 5'10" - 6'2" | 84 - 89 cm | 33" - 35" |
| XL | 188 - 195 cm | 6'2" - 6'5" | 89 - 91 cm | 35" - 36" |
What size frame do I need if I am between sizes? - read here
Trek Powerfly FS+ Gen 4 2025 Geometry Chart
| Size | S | M | L | XL |
|---|---|---|---|---|
| Stack | 597 | 629 | 647 | 666 |
| Reach | 425 | 450 | 475 | 500 |
| Head Tube Length | 130 | 110 | 130 | 150 |
| Head Tube Angle | 65.0° | 66.0° | 66.0° | 66.0° |
| Bottom Bracket Height | 330 | 335 | 335 | 335 |
| Bottom Bracket Drop | 30 | 45 | 45 | 45 |
| Trail | 123 | 125 | 125 | 125 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 |
| Chainstay Length | 458 | 461 | 461 | 461 |
| Wheelbase | 1201 | 1223 | 1257 | 1290 |
| Top Tube Length (horizontal) | 563 | 595 | 630 | 654 |
| Standover Height | 756 | 780 | 775 | 778 |
| Seat Tube Length | 380 | 400 | 420 | 450 |
| Seat Tube Angle | 71.1° | 71.3° | 71.2° | 72.4° |
| Effective Seat Tube Angle | 77.0° | 77.0° | 77.0° | 77.0° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
