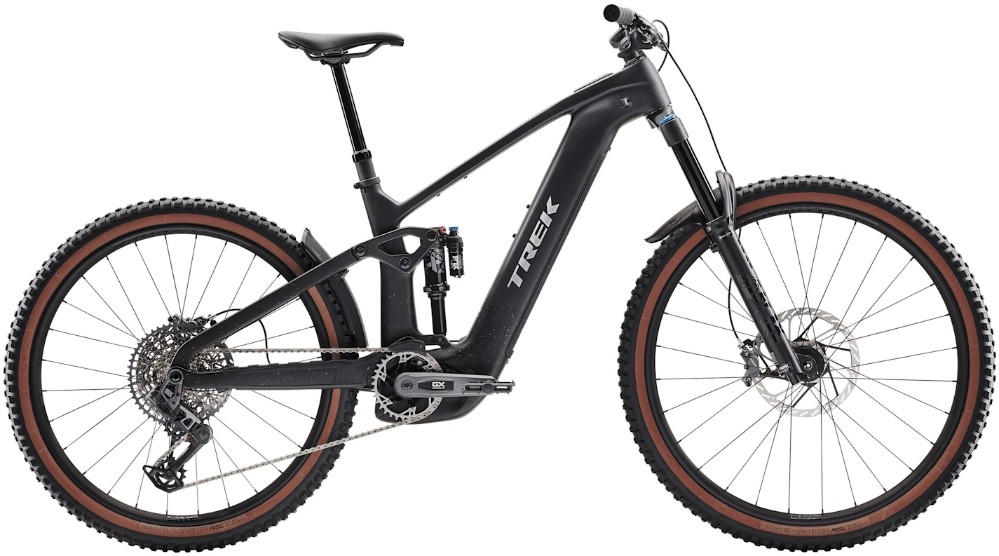

Trek Rail+ 9.8 GX AXS T-Type Gen 5 2026 - Electric Mountain Bike
The Rail+ 9.8 Gen 5 is a carbon enduro e-MTB with Bosch power, 160 mm travel and SRAM wireless shifting for epic trail days.
Key Features
- OCLV Mountain Carbon frame with enduro geometry and adjustable headset
- FOX Performance Elite Float 38 fork with 160 mm travel and GRIP X damper
- FOX Performance Elite Float X shock, 160 mm travel, 2-position damper
- SRAM GX AXS T-Type wireless 12-speed transmission
- SRAM CODE Bronze 4-piston hydraulic disc brakes
- Mixed wheels: 29" front, 27.5" rear with Bontrager Brevard RSL SE tyres
- Bontrager Line Pro OCLV carbon cockpit, dropper post with 200 mm travel
- Available with 0% APR finance
Drive Information
- Bosch Performance Line CX motor, 85 Nm max torque
- Removable Integrated Battery (RIB 2.0), 800 Wh smart system
- Bosch System Controller BRC3100 with bar-mounted remote
The Trek Rail+ 9.8 GX AXS T-Type Gen 5 brings together top-tier tech and trail capability in a carbon-framed e-MTB built for big rides, steep climbs and wild descents. This bike is purpose-built for riders who want a fully wireless drivetrain, advanced suspension, and the assurance of Bosch’s most powerful motor system to support all-day riding.
At its heart is an OCLV Mountain Carbon frame, engineered with Trek’s proven ABP suspension layout and geometry tuned for enduro-level performance. It’s equipped with Trek’s Removable Integrated Battery (RIB 2.0) system, housing a massive 800 Wh Bosch PowerTube battery that offers long-range support and easy tool-free removal for transport and charging.
The Bosch Performance Line CX motor produces 85 Nm of torque, making light work of steep, techy climbs while keeping your legs fresh for the descents. Paired with the Bosch smart system, it offers seamless integration with the System Controller and a handlebar remote to toggle through modes on the fly.
The Rail+ 9.8 doesn’t hold back when it comes to suspension. Up front, the FOX Performance Elite Float 38 fork with EVOL air spring and GRIP X damper delivers a stout, responsive feel for charging rough lines. The matching Float X shock in the rear is tuned for aggressive terrain and long descents, giving you control and comfort across changing conditions.
Where the Rail+ 9.8 really turns heads is in the drivetrain. The SRAM GX Eagle AXS T-Type system provides fully wireless shifting, even under load. The setup includes a GX AXS Pod shifter, a robust T-Type rear mech, and the latest 12-speed 10-52T cassette, built for fast, precise changes on the toughest climbs and descents.
The wheels are built tough, with Bontrager Line Comp 30 rims and a mixed-wheel configuration—29" front and 27.5" rear—for a confident blend of rollover and agility. Bontrager Brevard RSL SE tyres offer grip, durability and trail feedback across a wide variety of terrain. A 200 mm Line dropper post gives you that crucial room to move when the trail drops away.
From its carbon chassis and plush suspension to the precision of a wireless drivetrain and the punch of Bosch power, the Trek Rail+ 9.8 GX AXS is dialled for riders who demand more from their ride—more distance, more speed, more confidence. Whether you're chasing peaks or hammering out laps, this bike is ready.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, 34.9 mm seat tube, ABP, UDH Boost148, 12 mm thru axle, 160 mm travel |
| Fork | Fox Performance Elite Float 38, Float EVOL air spring, GRIP X damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt-X axle, 160 mm travel |
| Rear Shock | Fox Performance Elite Float X, 2-position damper, 205mm x 65mm |
| Stem | Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree |
| Bars | Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise |
| Front Brake | SRAM CODE Bronze 4-piston hydraulic disc // SRAM CODE Bronze 4-piston hydraulic disc |
| Rear Brake | SRAM CODE Bronze 4-piston hydraulic disc // SRAM CODE Bronze 4-piston hydraulic disc |
| Rear Mech | SRAM GX Eagle AXS, T-Type |
| Shifters | SRAM AXS Pod |
| Speed | 12 |
| Rims | Bontrager Line Comp 30 |
| Front Hub | Bontrager Line Comp 30 |
| Rear Hub | Bontrager Line Comp 30 |
| Front Tyre | Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 29x2.50" |
| Rear Tyre | Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 27.5x2.50" |
| Seat Post | Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Chainset | SRAM GX, 160 mm length |
| Chain | SRAM GX Eagle, T-Type, 12-speed |
| Cassette | SRAM Eagle XS-1275, T-Type,10-52, 12-speed |
| Pedals | VP-536 nylon platform |
| Battery Size (WH) | Removable Integrated Battery (RIB 2.0) 800wh |
| Motor | Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC) |
| User Interface | Bosch System Controller BRC3100, smart system |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
