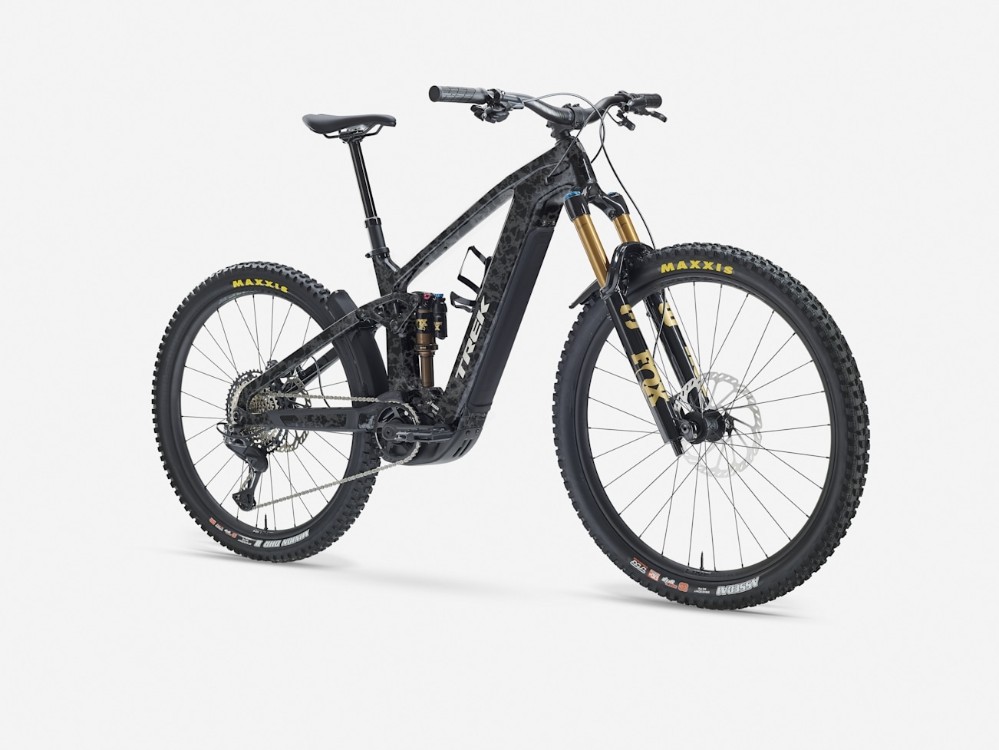

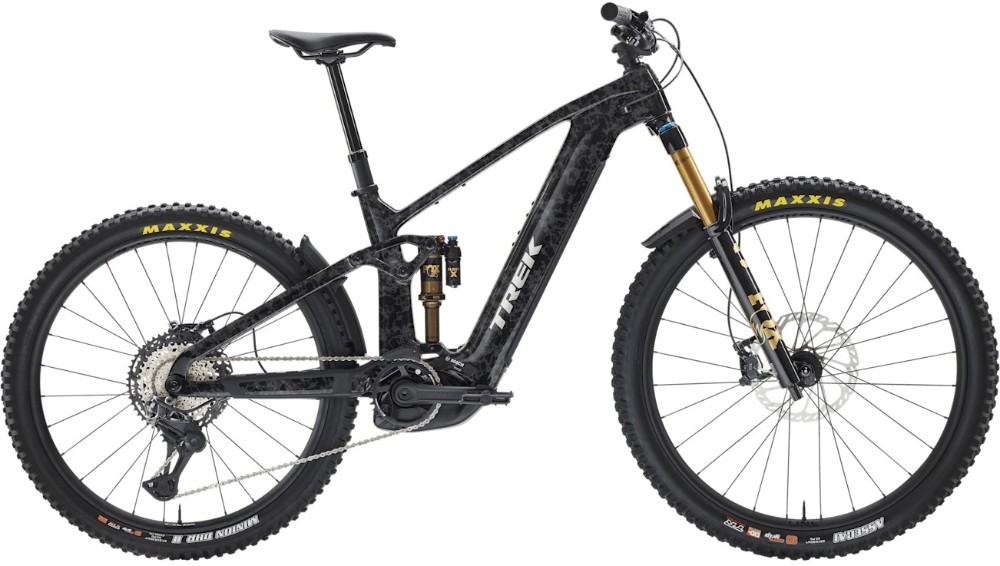

Trek Rail+ 9.8 Gen 5 2027 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, UDH Boost148, 12 mm thru axle |
| Fork | Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 1 |
| Rear Shock | Fox Factory Float X, 2-position damper, 205 mm x 65 mm |
| Stem | Bontrager Elite, 35 mm, 0-degree |
| Bars | Race Face Aeffect, alloy, 35 mm, 40 mm rise |
| Front Brake | Shimano XT M8220 4-piston hydraulic disc |
| Rear Brake | Shimano XT M8220 4-piston hydraulic disc |
| Rear Mech | Shimano XT Di2 M8260, 12-speed |
| Front Hub | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
| Rear Hub | Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12 mm thru axle |
| Seat Post | Bontrager Line Dropper, MaxFlow, internal routing, 34.9 mm |
| Saddle | Verse Short Comp, steel rails |
| Chain | Shimano XT M8100, 12-speed |
| Cassette | Shimano XT M8200, 10-51, 12-speed |
| Pedals | VP-536 nylon platform |
| Battery Size (WH) | Bosch PowerTube 800 Wh, smart system |
| Motor | Bosch Performance Line CX |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
