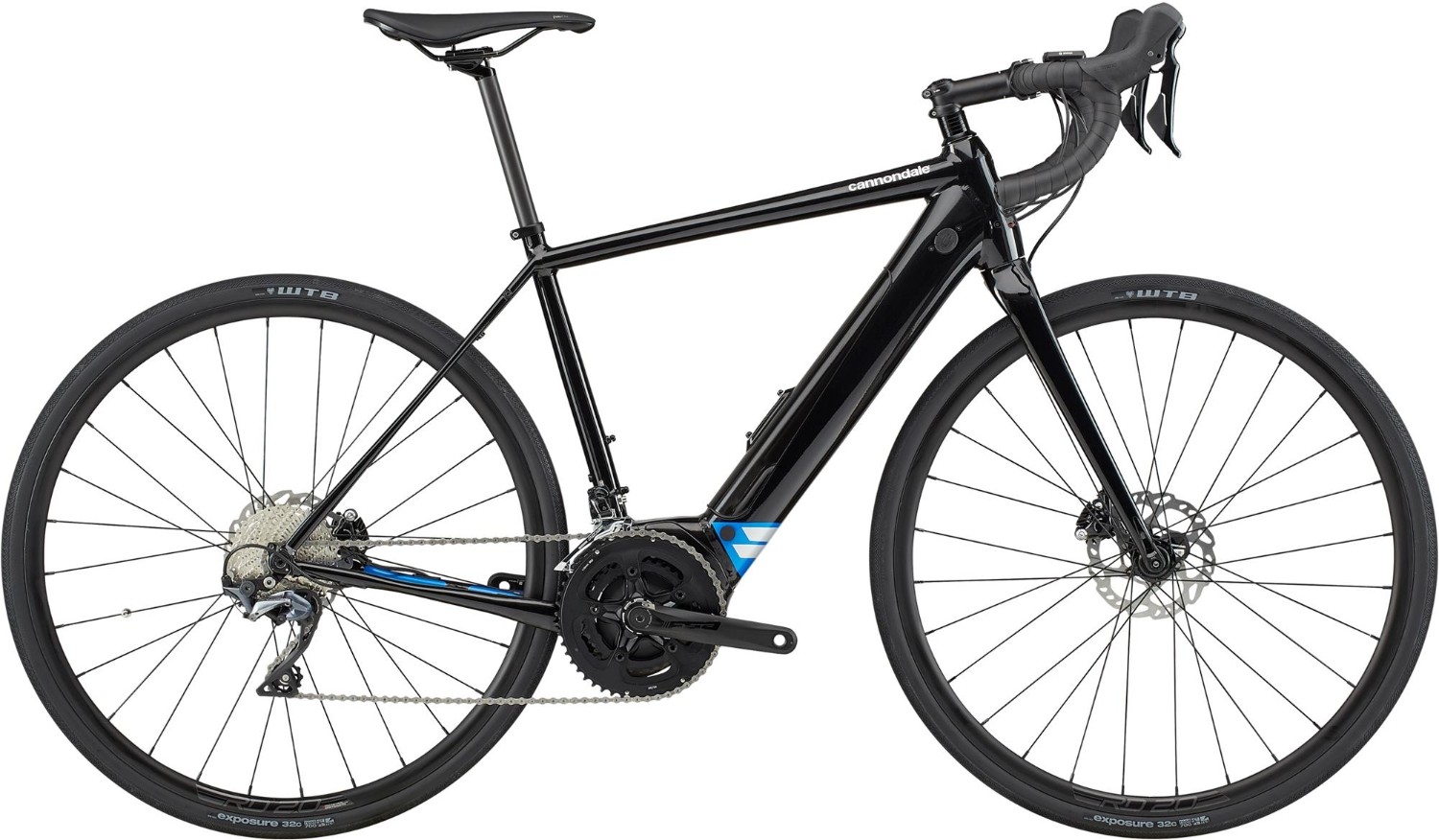

Cannondale Synapse Neo 1 2020 - Electric Road Bike

£3,499.99
Price Match
or £97.13 / month
Finance Options
Be the first to write a review
Sizing
Select a size
Colour
Add to Basket

Cycle to Work

Product Description

The Cannondale Synapse Neo 1 electric road bike, with the power, range and comfort to open the roads for everyone.

Tackle the legendary passes of the Tour. Roll through the valleys of wine country. Crank out fast blasts after work or spend the whole weekend riding somewhere you've never been. On the all-new Synapse NEO e bike, the road is now open to all. With its smooth, silent power, comfortably sportive position, and massive range, this electric-assist road bike is built to turn "I wish I could" into "I just did".

Key Features:

  • SmartForm C1 Alloy frame with removable integrated battery
  • Ballistec carbon fork for a better ride feel
  • Shimano Ultegra 2x11 speed drivetrain for intuitive gear shifting
  • Shimano Ultegra hydraulic disc brakes for intuitive gear shifting
  • Sizes:  Small, Medium, Large, X Large
  • Colours: Black
  • The Cannondale Synapse Neo 1 is available with 0% APR finance

Drive information:

  • Motor: Bosch Active Line Plus, 270% max support, 50Nm
  • Battery: 500Wh downtube integrated battery pack
  • User Interface / Display: Bosch Purion
  • Connectivity: Bluetooth smart phone app

Highlights:

The Range to Roam
Bosch’s Generation 3 Active Line Plus drive unit delivers big power and does it so smoothly that you barely notice it - except for how it makes you feel limitless. It's a mid-motor design that’s ideal for road bikes thanks to its light weight, smooth and silent power delivery, and drag-free pedaling beyond the cut-out threshold.

Unlike many e-road bikes, the Synapse NEO is designed with a full 500Wh PowerTube battery, which integrates cleanly into the downtube and packs enough energy for even the longest days. Go as long as you want -the Synapse NEO will get you home.

Connected & Protected
SAVE micro-suspension technology in the frame and fork insulates you from bumps while maintaining your connection to the road. Improved handling, more control, and enough comfort to ride all day.

True Endurance
Endurance Race Geometry positions you forward enough to go hard but upright enough to go long, plus a removable seatstay bridge and hidden fender mounts keep you grinding on any road, in any weather.

All Tredz bikes are:

  • Fully built & ready to ride
  • Fully checked & tested by Cytech qualified mechanics
  • Available with 0% APR finance on any basket over £99
  • 365 day no hassle returns
  • Free delivery in the UK Mainland on a date that suits you

In the box with every Tredz bike is:

  • Free Tredz 9 key trail tool
  • Free Tredz pedal spanner
  • Free basic pedals
  • Tredz drawstring kit bag
  • 16 point quality control check sheet
  • Basic bike setup instructions
  • Free Cycle Plan insurance voucher (8 weeks)

Occasionally, without notice, manufacturers change product design and/or specifications.

Specification

Frame:SmartForm C1 Alloy, removable downtube battery, SAVE, Ai, internal cable routing, flat mount brake, 142x12 thru-axle, Si kickstand mount, rack/fender mounts
Fork:BallisTec Carbon, 1-1/8" to 1.5" tapered steerer, 55mm offset, flat mount brake, 12x100 thru axle, fender mounts, hidden cable routing
Headset:Integrated, 1-1/8 to 1.5", sealed angular contact bearings
Stem:Cannondale 3, 6061 alloy, 7-degree
Bars:Cannondale 3, 6061 alloy, Compact
Front Brake:Shimano 105 hydro disc, 160mm RT70 rotors
Rear Brake:Shimano 105 hydro disc, 160mm RT70 rotors
Brake Lever:Shimano Ultegra hydro disc
Front Mech:Shimano 105, braze-on
Rear Mech:Shimano Ultegra GS
Shifters:Shimano Ultegra hydro disc, 2x11
Speed:22
Rims:RD 2.0, 28h
Front Hub:Formula CL-712
Rear Hub:RXC-142S
Spokes:DT Swiss Champion
Front Tyre:WTB Exposure TCS, 700 x 32c, Distance+ compound, tubeless ready
Rear Tyre:WTB Exposure TCS, 700 x 32c, Distance+ compound, tubeless ready
Seat Post:Cannondale 2, UD Carbon, 25.4, 350mm (S-M), 400mm (L-XL)
Saddle:Fabric Scoop Shallow Sport, steel rails
Chainset:Bosch Gen3 w/ custom Ai offset & FSA rings, 50/34
Chain:Shimano HG601, 11-speed
Cassette:Shimano 105, 11-34, 11-speed
Pedals:Basic Resin Flat
Battery (Wh):500Wh
Motor:Bosch Active Line Plus 250W
User Interface:Bosch Purion

There are currently no customer reviews

Write your own review

Synapse Neo Sizing

Synapse Neo Sizing

See the table below to find the right size Cannondale Synapse Neo.

Frame Size

Height Range

Centimetre

Size

Feet & Inches

Centimeters



48cm

XX Small

5’ 0” – 5’ 4”

152 – 162

50cm

X Small

5’ 4” – 5’ 6”

162 – 166

52cm

Small

5’ 6” – 5’ 7”

166 – 170

54cm

Medium

5’ 7” – 5’ 10”

170 – 178

56cm

Large

5’ 10” – 6’ 0”

178 – 182

58cm

X Large

6’ 0” – 6’ 2”

182 - 188

60cm

XX Large

6’ 2” – 6’ 4”

188 – 192

63cm

XXX Large

6’ 4” – 6’ 7”

192 - 200

Read our bike size guide for more information on sizing.



Synapse Neo Geometry

Size

S

M

L

XL

Seat Tube Length (cm)

44.4

49

53.5

58

Top Tube Horizontal (cm)

53.5

55.2

57.6

59.7

Head Tube Angle

71

71

71

71

Seat Tube Angle

74

74

73.5

73

Standover (cm)

73

77

81

85

Head Tube Length (cm)

12.6

15.7

19.1

22.2

Wheel Base (cm)

103.4

105.3

107.3

103.4

Front Center (cm)

60.5 / 23.8

62.4 / 24.6

64.4 / 25.3

66.6 / 26.2

Chainstay Length (cm)

43.8

43.8

43.8

43.8

Bottom Bracket Drop (cm)

6.7

6.7

6.7

6.7

Bottom Bracket Height (cm)

28.2

28.2

28.2

28.2

Fork Rake (cm)

5.5

5.5

5.5

5.5

Trail (cm)

6.2

6.2

6.2

6.2

Stack (cm)

54.7

57.7

60.9

63.8

Reach (cm)

37.8

38.7

39.6

40.8

Please note, all size information is provided as a guide - if you're unsure or need any further assistance you can call us on 01792 799508 ... we're happy to help!

Electric Road Bike Guide



Electric Road Bike Guide

Is an Electric Road Bike Right for Me?

If you are new to the world of cycling and ebikes, our electric bike buyers guide will give you a good overview of the different types of e bikes. This will help you decide if an electric road bike is right for you.

The best electric bikes for road cycling combine a powerful motor with good road bike platform. When choosing a road e bike, there are a few things that can help you decide which performance characteristics you can expect from a particular model.


How do E Bikes Work?

All our ebikes are pedal assist models. This means that the electric motor adds to your natural pedalling power, making it easier to ride. The effect is seamless, and you will feel the extra boost from the first pedal stroke. The harder you pedal the more the power the motor gives you. When you stop pedalling the motor stops too.

You can vary the amount of power that the drive unit delivers when you pedal. All you need to do is select one of the different power modes using the display unit or power button. Some e bikes allow you to customize these modes through a smart phone app that connects to the bike through Bluetooth.

Road cyclist on an electric road bike

By law all pedal assist ebike are limited to only offer assistance up to 15.5mph. This means that you can ride an ebike everywhere that you can ride a regular bike. You can of course ride faster, but you will have to rely solely on your own natural pedalling power at speeds over 15.5mph.



Are the motors different?

Hub drive motors

Hub drive motors sit inside the wheel hub. These motors are lighter weight than crank drive units but are less powerful, and the power is applied more subtly. You still get enough power to climb the hills and accelerate from a standing start easily, and once up to speed these bikes are easier to pedal. Because they produce less power, hub drive ebikes tend to have smaller battery packs that can be hidden in the frame more easily.

Electric Road Bike Guide

Crank drive motors

Crank drives use a more powerful motor that sits in the bottom bracket area of the bike. The power is added directly to the drivetrain through the cranks. The added power is much more noticeable on a crank drive bike and you will be able to power up the climbs like a Pro athlete. Of course, you can always turn down the amount of power that the motor delivers. This means that you can extend the range and take advantage of the larger battery packs that these bikes are equipped with. Specialist road bike crank drive motors like the Specialized Turbo SL are designed to offer just the right amount of power. These are smaller and lighter than crank drives that are designed for multiple platforms.

Electric Road Bike Guide

Batteries

Most e bikes use a lithium Ion battery pack. These hold plenty of charge, offer long lasting performance and are quick to charge. The capacity of the battery varies depending on the model. Battery capacity starts at 250Wh for hub drive bikes and goes up to 500Wh or more on high-end crank drive bikes. The batteries can usually be charged both on and off the bike. A 500Wh battery pack will usually take about 4 hours to fully charge.

See how far you can ride an electric bike


Display and Connectivity

All ebikes have some type of display that allows you to swap between the different power modes. On some bikes the display is minimal with LED lights to show the remaining battery capacity and power modes. Others have screen that show additional ride data as well. The very best displays act like a high-end cycling computer.

Bosch Kiox display on an electric MTB

As well as the display unit many ebikes can also connect to a compatible smartphone app via Bluetooth. This opens up other options which may include GPS route planning and fine tuning of the power modes.


Which type of electric road bike is best for me?

Compared to mountain bikes road bikes have high cruising speeds. This means that the 15mph power assist limit needs more consideration with road e bikes. While a very powerful motor is great for getting up to speed and flying up the climbs you may find that the extra weight of a big motor and battery pack hold you back on the flat.

Hub drive road e bikes and lightweight crank drives like the Specialized Turbo SL are the best choice if you want the bike to feel similar to a regular road bike once you exceed the 15mph limit. These motors won’t get you up the climbs quite as fast as on a more powerful e bike, so if superfast climbing is your goal an e road bike with a more powerful crank drive motor might be best for you.
