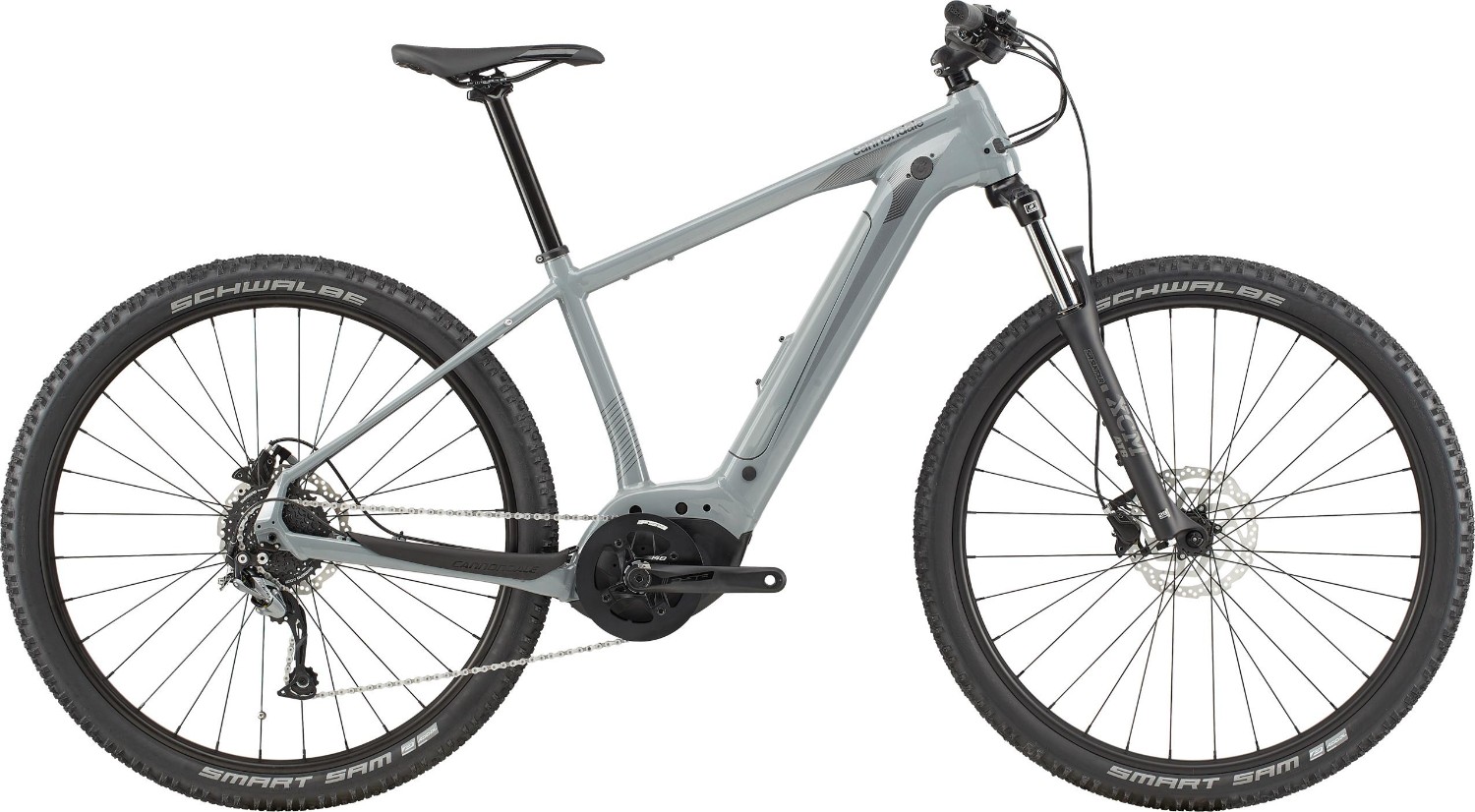

Cannondale Trail Neo 3 2020 - Electric Mountain Bike
With beautifully crafted frames, progressive geometry, powerful Bosch assist and seriously dirt-ready components, The Cannondale Trail NEO 3 hardtail is built to take your riding to the next level, from your first time off-road to your next big adventure.
Key Features:
- SmartForm C2 Alloy frame with removable integrated battery
- SR Suntour XCM suspension fork offers 100mm of suspension travel
- Shimano Alivio 9 speed drivetrain
- Shimano hydraulic disc brakes for all-weather stopping power
- Sizes: Small, Medium, Large, X Large
- Colours: Stealth Grey
- The Cannondale Synapse Neo 3 is available with 0% APR finance
Drive information:
- Motor: Bosch Active Line Plus, 270% max support, 50Nm
- Battery: 400Wh downtube integrated battery pack
- User Interface / Display: Bosch Purion
- Connectivity: Bluetooth smart phone app
Highlights:
- Perfectly Framed Light and lively, stiff and snappy on everything from serious singletrack to city streets, Trail’s progressive frame and cleanly integrated Bosch drive unit showcase our unmatched aluminum expertise.
- Confident HandlingShort chainstays for agility and traction, a slack head angle for solid stability, and a battery and drive unit positioned as low and centrally as possible create a surprisingly nimble, yet steady feel.
- Real Deal True mountain bike specs distinguish Trail NEO: powerful hydraulic brakes, wide handlebars and short stems. But it’s versatile too, with pre-wired light cables and clever mounts for racks and fenders
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | SmartForm C2 Alloy, removable downtube battery, SAVE, tapered headtube, internal cable routing, 148x12mm thru-axle, post mount disc, folding lock mount, rack/fender mounts, Si kickstand mount |
| Fork | SR Suntour XCM, 100mm, Coil, 46mm offset |
| Headset | Integrated Sealed Bearing, Tapered |
| Stem | Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0-degree |
| Bars | Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm |
| Front Brake | Shimano MT200 Hydro Disc, 180mm RT10 Rotors |
| Rear Brake | Shimano MT200 Hydro Disc, 180mm RT10 Rotors |
| Brake Lever | Shimano MT200 hydro disc |
| Rear Mech | Shimano Alivio |
| Shifters | Shimano Acera, 9-speed |
| Speed | 9 |
| Rims | WTB STX i25 TCS, 32h, tubeless ready |
| Front Hub | Shimano QR |
| Rear Hub | Shimano MT400 12x148 |
| Spokes | DT Swiss Champion |
| Front Tyre | Schwalbe Smart Sam, 27.5/29 x 2.25", ADDIX compound, tubeless ready |
| Rear Tyre | Schwalbe Smart Sam, 29 x 2.25", ADDIX compound, tubeless ready |
| Seat Post | Cannondale 4, 6061 Alloy, 31.6 x 350mm |
| Saddle | Cannondale Ergo XC |
| Chainset | Bosch Gen3, 34T |
| Chain | Shimano HG93, 9-speed |
| Cassette | Shimano, 11-36, 9-speed |
| Pedals | Basic Resin Flat |
| Battery Size (WH) | 400wh |
| Motor | Bosch Active Line Plus 250W |
| User Interface | Bosch Purion |
Cannondale Trail Neo Sizing
Frame Size
XXS - 13"
4'8"
5'1"
XS - 15"
5'1"
5'4"
S - 16"
5'4"
5'7"
M - 18"
5'7"
5'10"
L - 19"
5'10"
6'0"
XL - 20"
6'0"
6'3"
XXL - 21"
6'3"
6'5"
XXXL - 22"
6'5"
6'9"
Read our bike size guide for more information on sizing.
Trail Neo Geometry
|
|
Small |
Medium |
Large |
|
Seat Tube Length (cm) |
40.0 |
43.5 |
47.0 |
|
Top Tube Horizontal (cm) |
56.1 |
59.9 |
63.2 |
|
Top Tube Actual (cm) |
54.3 |
57.8 |
60.8 |
|
Head Tube Angle |
67.0° |
67.0° |
67.0° |
|
Seat Tube Angle Effective |
74.0° |
74.0° |
74.0° |
|
Standover (cm) |
68.3 |
68.9 |
68.9 |
|
Head Tube Length (cm) |
12.0 |
12.0 |
13.0 |
|
Wheelbase (cm) |
113.8 |
117.8 |
121.3 |
|
Front Centre (cm) |
67.3 |
71.6 |
75.0 |
|
Chainstay Length (cm) |
47.0 |
47.0 |
47.0 |
|
Bottom Bracket Drop (cm) |
5.2 |
6.5 |
6.5 |
|
Bottom Bracket Height (cm) |
30.8 |
31.5 |
31.5 |
|
Fork Rake (cm) |
4.6 |
5.1 |
5.1 |
|
Trail (cm) |
10.3 |
10.6 |
10.6 |
|
Stack (cm) |
59.6 |
62.5 |
63.4 |
|
Reach (cm) |
39.0 |
42.0 |
45.0 |
