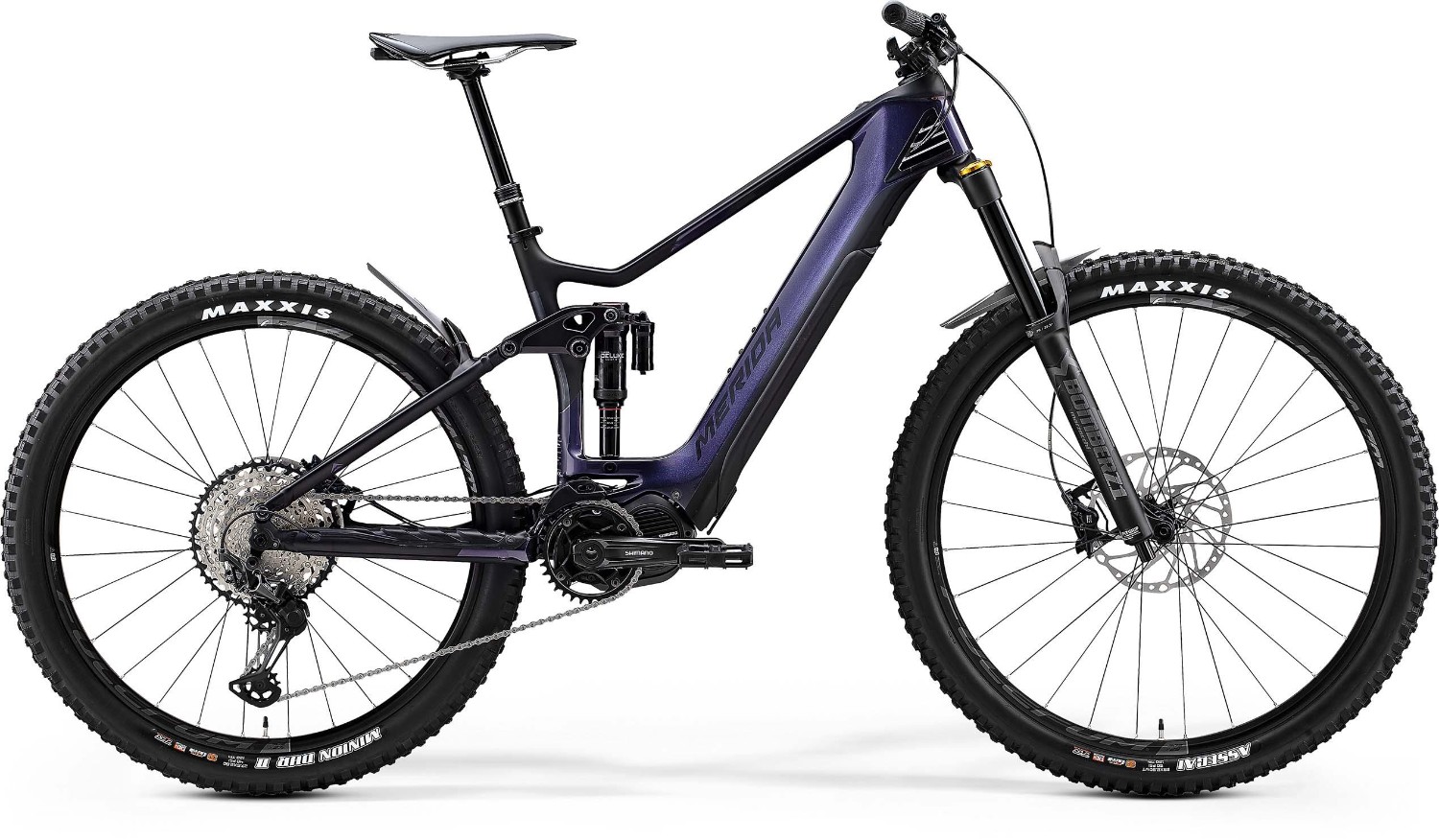

Merida eOne-Sixty 8000 2020 - Electric Mountain Bike

£5,850.00
Price Match
or £121.88 / month
Finance Options
Be the first to write a review
Sizing
Select a size
Select a colour
Add to Basket

Cycle to Work

Product Description

The Merida eOne-Sixty 8000 is a an innovative electric mountain bike that pushes the boundaries of e bike technology. The 'original' eONE-SIXTY is the most decorated, tested and awarded bike in MERIDA's history and has shaped what MERIDA is known for today: innovation, quality and outstanding performance.

Key Features:

  • Carbon frame with alloy swing arm and fully integrated battery pack
  • Marzocchi Z1 e bike specific fork offers 160mm of travel
  • RockShox Super Deluxe shock controls the 160mm of rear wheel travel
  • Shimano XT 12 speed drivetrain with 10-51t cassette
  • 29" front wheel with 27.5" rear wheel for the best of both worlds
  • Sizes: Small, Medium, Large X Large
  • Colours: Gloss Anthracite/Black, Purple/Black
Drive information:
  • Motor: Shimano Steps E8000 70Nm
  • Battery: Shimano 504Wh internal battery pack
  • User Interface / Display: Shimano Steps E8000 display & remote switch
  • Connectivity: Bluetooth smart phone and PC app

However, after three years at the top of the e-enduro ranking, it was time to distil the essence of the 'old' eONE-SIXTY, incorporate the latest trends and standards, and create a new benchmark.
The new Merida eONE-SIXTY again embodies e-enduro bikes. On downhills, it still feel s like a normal bike, agile due to perfectly tuned MTB geometry, but more planted because of the higher weight. It's a fun bike with a clear focus on trail riding.

The last few years have shown the eONE-SIXTY is often used as a 'SUV' bike. Because of the advantages of more travel, bigger tyres and comfortable geometry, it offers a fun, comfortable and capable alternative to a ‘normal’ mountain bike.

The eONE-SIXTY is a high-end state of the art e-bike. Material, design and integration are cutting edge. Nothing less could be expected after the successful first generation eONE-SIXTY which influenced a whole generation of e-bikes.

Trail riding! Geometry, travel and specification make this bike perfect for demanding trail riding. It doesn’t matter if its a playful easy trail or a hardcore enduro track. The new eONE-SIXTY loves it all.
But besides its enduro and trail riding abilities, the eONE-SIXTY is also a hugely capable and enjoyable ‘SUV’ bike. Because of the travel, the comfortable and upright riding position the eONE-SIXTY gives a lot of confidence and offers a real alternative to a ‘normal’ mountain bike.
If a 2nd battery or charging device is carried, it can also be used for all day riding or multi-day excursions.

When chosing the frame materials, stiffness was a major focus, in particular for the front triangle, but the big hole in the down tube presents a structural disadvantage. Using carbon for the front triangle, we have maintained the stiffness whilst reducing weight despite the design challenges the battery opening presents.

Also, carbon gives real design freedom when it comes to creating a unique appearance.
The aluminium rear triangle has proven durability and function, it's the same as the first generation eONE-SIXTY and is one of the strongest rear ends MERIDA has ever made.
We also have the advantage of spares being interchangeable.

The bike is optimised for a 29" front wheel, offering better ‘roll over' performance.
The head angle got slacker and the bottom bracket height got lower for better control at high speed.
The original eONE-SIXTY was optimised for 175mm crank. The new bike is designed for 165mm cranks so it can lower the BB to optimise climbing performance the seat angle got steeper.

Highlights:

Thermo Gate

Forged aluminium part integrated into the headtube. Works like a chimney so hot air can rise up and escape. When riding, heat build up from the battery is not usually an issue, but if the bike was laid in the sun for a long time heat could build up.

Wheel Size

Mixed wheel sizes to get the best of both worlds. 29" front wheel for better ‘roll over
performance’ with a 2.5" wide tyre for precise steering. 27.5" rear wheel with 2.6" tyres give
maximum traction and comfort. The smaller rear wheel size allows shorter chainstays for a more agile and playful character.

Internal Block

To prevent the fork crown hitting the down tube we use an ‘Internal Block’ integrated into the frame. A clamp is installed on the fork steerer. If the steering angle is too extreme the clamp hits the rubber protection block inside the frame. Just in case the clamp does rotate on the steere, there's additional rubber protection under the head tube.

Easy Charging

The internal battery can be accessed easily, pulling a rubber strap, sliding forward the panel and opening, the battery can then be removed by a small turn of an Allen Key (provided). But the battery doesn't need to be removed as a satellite charging port can be used.

Rattle Free

Two part battery cover, the outer layer reduces noise through its soft material and tight fit, while the hard plastic inner layer gives it the structural shape. Key components i.e. the rubber strap and o-rings, can be replaced. Almost all connection points between battery and frame have a rubber layer between them too.

Bottle Bosses and Cable Routing

A new clamp system makes it easy to organise and route cables inside the downtube whilst also providing bottle bosses on the outside. Bottle cages can be put in two positions. The upper one must be used when a piggyback shock is mounted. For Gen II a bottle can be mounted to all frame sizes.

Battery Wake Up

If the bike has not been used for more than 6 months, or when the battery of the on/off switch is empty (this battery is normally charged by the main battery) it's necessary to wake the battery up again, simply push a 4mm Allen key (on the Merida Expert TR axle) through the hole on the downtube and press the hidden button underneath

The heart of the eOne-Sixty 8000 is the Shimano Steps E8000 70NM motor and new integrated Shimano Steps E8035 504W battery. Modes are controlled by a Shimano Steps E8000 shift lever and key information is displayed on a colour Shimano Steps E8000 display.

All Tredz bikes are:

  • Fully built & ready to ride
  • Fully checked & tested by Cytech qualified mechanics
  • Available with 0% APR finance on any basket over £99
  • 365 day no hassle returns
  • Free delivery in the UK Mainland on a date that suits you

In the box with every Tredz bike is:

  • Free Tredz 9 key trail tool
  • Free Tredz pedal spanner
  • Free basic pedals
  • Tredz drawstring kit bag
  • 16 point quality control check sheet
  • Basic bike setup instructions
  • Free Cycle Plan insurance voucher (8 weeks)



Occasionally, without notice, manufacturers change product design and/or specifications.

Specification

Frame:Carbon front triangle with easily removable integrated battery, satellite on/off switch, on-bike charging port and “thermo gate”
Fork:Marzocchi Z1 E-Bike; Air; 160 mm travel; Tapered steerer; 51mm fork offset
Rear Shock:Rock Shox Super Deluxe Select+; platform
Headset:Merida 1901
Stem:Merida Expert eTR; 35 mm diameter; 0 degree rise
Bars:Merida Expert eTR; 780 mm wide; 20 mm rise
Front Brake:Shimano SLX 4 piston hydraulic disc brakes with Shimano RT64 203 mm rear rotors
Rear Brake:Shimano SLX 4 piston hydraulic disc brakes with Shimano RTEM600 203 mm rotors
Rear Mech:Shimano XT RDM8100 Shadow+
Shifters:Shimano XT
Speed:12
Rims:Fulcrum E-Metal 700 wheelset ; 29" front and 27.5" rear
Front Hub:110 x 15mm Centrelock
Rear Hub:148 x 12mm rear; Centerlock microspline with Merida Comp TR rear axle including removeable lever, 6/4mm allen key
Spokes:Part of wheelset
Front Tyre:Maxxis Assegai 29" x 2.5 " Kevlar bead - folding 3C EXO+
Rear Tyre:Maxxis DHR II 27.5" x 2.6 " Kevlar bead - folding 3C EXO+
Seat Post:Merida Expert TR; 30.9 mm diameter; 0mm layback XS: 125 mm travel - S/M: 150 mm travel - L/XL 170 mm travel;
Saddle:Merida Expert CC
Chainset:Shimano CRE80-12-B; 34 teeth with Shimano E8000 crank
Chain:Shimano CN-M7100
Cassette:Shimano M7100; 10-51 teeth; 12 speed
Pedals:VP; VPE-537
Battery (Wh):504
Motor:Shimano Steps E8000; 70Nm motor
User Interface:Shimano Steps E8000 display.

There are currently no customer reviews

Write your own review

Eone-Sixty Sizing

Merida EOne-Sixty Sizing and Geometry

Height









5’0” / 152cm

S (16”)







5’1” / 155cm

S (16”)







5’2” / 157cm

S (16”)







5’3” / 160cm

S (16”)

M (17”)





5’4” / 163cm

S (16”)

M (17”)





5’5” / 165cm



M (17”)





5’6” / 168cm



M (17”)





5’7” / 170cm



M (17”)





5’8” / 173cm



M (17”)





5’9” / 175cm



M (17”)

L (18.5”)



5’10” / 178cm



M (17”)

L (18.5”)



5’11” / 180cm





L (18.5”)



6’0” / 183cm





L (18.5”)



6’1” / 185cm





L (18.5”)



6’2” / 188cm





L (18.5”)



6’3” / 191cm





L (18.5”)

XL (20”)

6’4” / 193cm





L (18.5”)

XL (20”)

6’5” / 196cm







XL (20”)

6’6” / 198cm







XL (20”)

6’7” / 200cm







XL (20”)

6’8” / 203cm







XL (20”)



SizeXSSMLXL
Seat tube 405 mm 420 mm 440 mm 470 mm 500 mm
Top tube 563 mm 584 mm 605 mm 628 mm 652 mm
Head tube 110 mm 115 mm 120 mm 135 mm 150 mm
Head angle 65.5° 65.5° 65.5° 65.5° 65.5°
Seat angle 75.5° 75.5° 75.5° 75.5° 75.5°
Chainstay 440 mm 440 mm 440 mm 440 mm 440 mm
BB Drop 17.5 mm 17.5 mm 17.5 mm 17.5 mm 17.5 mm
Wheelbase 1,168 mm 1,190 mm 1,212 mm 1,238 mm 1,265 mm
Reach 400 mm 420 mm 440 mm 460 mm 480 mm
Stack 629 mm 633 mm 638 mm 651 mm 665 mm

Please note, all size information is provided as a guide - if you're unsure or need any further assistance you can call us on 01792 799508 ... we're happy to help!

Electric MTB Guide



Electric Mountain Bike Guide

Is an Electric Mountain Bike Right for Me?

If you’re new to the cycling world, we highly recommend taking a look at our bike buying guide overview or our electric bike buying guide to help you decide what type of e bike is right for you.

When you’re choosing an electric mountain bike, there are a few things to look out for, which can help you to work out the quality and performance to expect from a particular model.


Usage & Suspension travel

Just like a regular full suspension or hardtail mountain bike, the amount of available suspension travel on an eMTB varies with the intended use. Depending on the type of mountain bike riding you’ll be doing, you’ll want a bike with longer or shorter suspension travel as well as components suited to more or less technical terrain.

Type

Travel

Usage

Pros

Cons

Hardtail

Up to 130mm travel fork

Cross-country and trail

Nimble handling more affordable than a full suspension eMTB

Hardtails are less capable on rough and demanding trails with large jumps and drops

Full Suspension – short travel

120mm – 150mm

Trail and cross-country

Well balanced for both climbing and descending

Less capable on challenging descents than a longer travel bike

Full Suspension – long travel

150mm +

Enduro, trail and downhill

More capable on rough, steep and technical descents, including DH and enduro tracks

Heavier and less manoeuvrable on tight trails. More cumbersome on the climbs

Type / Travel / Usage

Pros

Cons

Hardtail

Up to 130mm travel fork

Cross-country and trail

Nimble handling more affordable than a full suspension eMTB

Hardtails are less capable on rough and demanding trails with large jumps and drops

Full Suspension – short travel

120mm – 150mm

Trail and cross-country

Well balanced for both climbing and descending

Less capable on challenging descents than a longer travel bike

Full Suspension – long travel

150mm +

Enduro, trail and downhill

More capable on rough, steep and technical descents, including DH and enduro tracks

Heavier and less manoeuvrable on tight trails. More cumbersome on the climbs


Frame Material

Most electric mountain bike frames are made from aluminium alloy, although some are made from carbon fibre composite.

Aluminium

Aluminium alloy is lightweight, stiff, strong. Manufacturers often develop their own aluminium alloys, such as ALUXX by Giant. Aluminium is found on a wide range of e bikes, from entry-level and enthusiast bikes, right the way up to top-spec eMTBs.

Carbon Fibre

Carbon fibre is lighter, stiffer, stronger, and more expensive than aluminium. The main benefit for electric mountain bikes is that carbon frames are stiffer for improved handling.


Drive Tech

Designed to enable you to have more fun on the trails, all of our electric mountain bikes feature powerful crank drive motors with long lasting lithium-ion battery packs and easily accessible control units.

Motor

Crank drive motors boost your natural pedalling power. The cranks are connected to the motor and the motor is connected to the chainring which then powers the bike forward. The bike senses the pressure that you put though the pedals and then adds an appropriate level of power to make pedalling easier. This additional power is delivered seamlessly, and you will feel like your legs have just become much more powerful. Motors all have a nominal 250w output and are usually provided by big component manufacturers like Bosch, Shimano, Yamaha and Brose.

Illustration showing a electric motor on a electric bike

Battery

Easily charged either on or off the bike the lithium-ion battery pack will offer you long lasting assistance. Where and how you ride will make a big difference to the range that you can expect to achieve from a single charge, but most e bikers find the capacity of these batteries to be more than sufficient. Some brands offer innovative ways to integrate the battery within the frame. 400Wh or 500Wh batteries are most common.

Illustration showing a battery mounted to a ebike frame

Control Units

All electric mountain bikes allow you to adjust the amount of power the motor delivers. This helps to help you manage the battery capacity. Control units have some kind of display that, at the very least, shows remaining battery capacity and the current power mode. Some control units feature a handlebar mounted display unit that displays additional information like estimated range and satellite navigation prompts. Many eMTBs offer Bluetooth and ANT+ connectivity with smartphone apps for fine tuning the motor output and accessing more advanced features.

Illustration showing a heads up display mounted to the handlebars

Groupset

An electric mountain bike’s groupset, is where the biggest difference in component quality is seen. A complete groupset comprises of the following parts:

  • Chainset (aka Crankset)
  • Bottom bracket
  • Brakes
  • Brake levers
  • Shifter
  • Derailleur
  • Chain
  • Cassette

Electric mountain bike groupset components are typically supplied by either Shimano or SRAM, sometimes with additional manufacturers like Magura, Tektro and TRP supplying brake systems. You will mostly find one-by drivetrains with a single front chainring and a wide range rear cassette.

Shimano and SRAM both produce a range of groupsets to suit different budgets. The hierarchy table here compares the different Shimano and SRAM groupsets to determine which bikes offer the best performance.

Groupset comparison - Shimano & SRAM

Wheel Size

Just like regular mountain bikes, e MTBs are available with different wheel sizes. 27.5” (650b) and 29” wheels are both available but the most common e MTB size is 27.5”+ (6fattie) that bridges the gap between the two.

MTB wheel sizes

27.5” (650b) wheels strike the ideal balance between fast rolling and nimble handling. They are lighter than 29” wheels so are faster to accelerate. On the other hand, the smaller wheel size rolls less efficiently than the larger size, making the bike more prone to losing speed over rough ground.

29” wheels roll fastest but are less nimble. These wheels are naturally smoother over rough ground but are heavier and slower to accelerate. Larger riders may find a better fit on a 29er, but smaller riders may find 29” wheels a little cumbersome.

27.5+ (6fattie) wheels feature wider 2.8” – 3.0” tyres and offer more cushioning (float) as well as more grip. With the extra size of the high-volume tyres, the overall wheel diameter is similar to a 29er, so these wheels carry speed very well on rough ground. Plus sized wheels are ideal for electric mountain bikes as they deal best with the extra weight of the motor and battery, and are great for riding more challenging terrain.


Suspension components

Electric mountain bike suspension components (i.e. the fork or rear shock absorber) are also a way to identify the quality of a bike. While Fox and RockShox are the most common manufacturers, there are a number of brands producing suspension components for mountain bikes.

Entry Level eMTBs

Entry level electric mountain bikes (up to approximately £2,500) may come supplied with a fork and rear shock supplied by SR Suntour, X-Fusion or RockShox. These components will allow a limited amount of adjustment, including:

  • Coil spring preload / air spring pressure adjustment.
  • Lockout switch.
  • Rebound damping adjustment on models towards the top of the price range.
Mid-range and enthusiast eMTBs

Mid-range and enthusiast eMTBs (up to approximately £5,000) use components from brands including Fox, RockShox and Manitou. At this level, suspension components have features like:

  • Preload adjustment / air spring pressure adjustment
  • Rebound damping adjustment
  • Lockout switch
  • Multi-position ‘mode’ switch
  • Compression damping adjustment
Top of the range eMTBs

Top of the range electric bikes (over £5,000) also use components from Fox, RockShox and Manitou, with a few select models using parts from high-end suspension brands like Ohlins. At this price, suspension components have features including:

  • Coil spring preload adjustment / air spring pressure adjustment
  • High and low speed rebound damping adjustment
  • High and low speed compression damping adjustment
  • Lockout switch
  • Multi-position ‘mode’ switch
  • Advanced low-friction coatings (e.g. Fox’s golden-coloured Kashima coating)

Finance

How do I apply for finance?

Spend £99 or more at Tredz and you can spread the cost. Pay monthly over 6-48 months, interest free (dependent on repayment terms and amount).

1Fill your basket with everything you want from Tredz and go to the checkout.

2During checkout, select the finance option you want as your method of payment.

3You will be sent to our finance provider's secure server to complete your application.

4Finance providers PayPal & V12 will use the information provided to make a decision and complete checkout if you are approved.

Read more about buying on finance

Buy now, pay 12 months later.
Interest free credit with no deposit. Pay nothing for 3 or 6 months on orders over £850, or 12 months on orders over £1,500* *Not available through PayPal Credit

Flexible finance options

Choose your deposit.

Choose your term.

£5,850.00 Your basket + this product

Lowest £0 deposit / 0% interest

£121.88 0% APR

per month

for 48 months

Popular 0% finance

£109.69 0% APR

per month

for 48 months

+ deposit of £585.00
Open Finance Calculator
Representative example: If total purchase price is £1,399.00 with a deposit of £139.90 (10%) and your selected term is 36 months Classic Credit (15.9% APR fixed), you would pay £43.55 per month. Total charge for credit will be £308.70 and total amount repayable is £1567.80, subject to terms and status.

Delivery & Guarantee

UK Delivery Information

Please Note: Due to the current circumstances we are experiencing high demand so we may take a little longer than usual to despatch your order. Our Warehouse and Bike Build team are up and running as normal and we are taking active measures to ensure that we are following the government guidance with social distancing and additional health & safety measures have been put in place throughout the business. Please rest assured we will do everything we can to get your order to you as quickly as possible.

We are committed to offering fast and free delivery, whether you're ordering bikes, accessories or clothing. Our standard delivery service is FREE in the UK, regardless of the size and on all orders over £20.

Please note that bulky products and bikes shipped to outlying UK regions are excluded from free shipping.

Please note that Pre-Order dates can sometimes change due to updated stock information.

Click here for more UK and international delivery information.

International Deliveries - Temporarily Suspended 30/3/20

Covid-19 Update

During the Covid-19 outbreak we will be stopping all international deliveries until further notice. We will continue deliveries to the UK, Isle of Man, Scottish Highlands, Scottish Islands, Channel Islands, Ireland, Northern Ireland, Isle of Wight, Jersey and Guernsey.

If you have any queries, please contact our Customer Service Team. The best way to contact us is to use Live Chat by clicking the widget at the bottom right of your screen.

Click here for more UK and international delivery information.

Returns & Warranty

It's easy to return a product with our 365 day, hassle free returns.

We will give you a full refund or exchange on any item that is returned to us unused/unfitted, in a resaleable condition and in its original packaging (where possible).

Please note: For hygiene reasons, we cannot accept returns of facemasks, undershorts or underwear if the item has been removed/unsealed from its original packaging.

If your item develops a fault or arrives damaged, please contact us first so we can resolve the issue for you as quickly as possible.

For more information please visit our Returns & Warranty page.

What's In The Box

What's In The Box

As cyclists ourselves, we know you will be keen to get out on your new bike as soon as possible. That's why we provide you with all the essential kit you need to get your shiny new bike rolling for the first time.

Most bikes don't come with pedals as standard so we include a set of basic pedals, free of charge with every bike we send out. We will also provide you with a pedal spanner to fit them and a 9-key trail tool, along with full instructions for setting your bike up out of the box. Each bike is sent out with a 16 point, quality control check sheet so you can be confident that your bike has been fully checked by our qualified mechanics.

What's in the box
  • Basic setup instructions
  • 16 point quality control checklist
  • Free tredz multitool
  • Free tred pedal spanner
  • Free basic pedals
  • Free drawstring kit bag
  • Free bike insurance voucher

All these items are provided at no extra charge and are packed into a Tredz drawstring bag that doubles up as a handy backpack for carrying your ride essentials.

  • Basic bike setup instructions
  • Free ‘basic’ pedals
  • Free Tredz pedal spanner
  • Free Tredz 9-key trail tool
  • Free Tredz drawstring bag
  • Free 8 weeks insurance voucher
  • 16 point, quality control check sheet

Tredz Service:

Tredz bikes are fully built & set up to ride
Read our bike setup guide.

Free UK delivery, on a date that suits you
We will ring to choose a suitable day. Find out more
  • Tredz bikes are fully checked & tested by Cytech qualified mechanics
  • 0% APR finance available on any basket over £99
  • 365 day 'no hassle' returns
  • Free UK delivery, on a date that suits you

Show finance options for:

Available finance options:

Months / APR Per month

Buy now, pay later over £850. Find out more Finance provider options available
