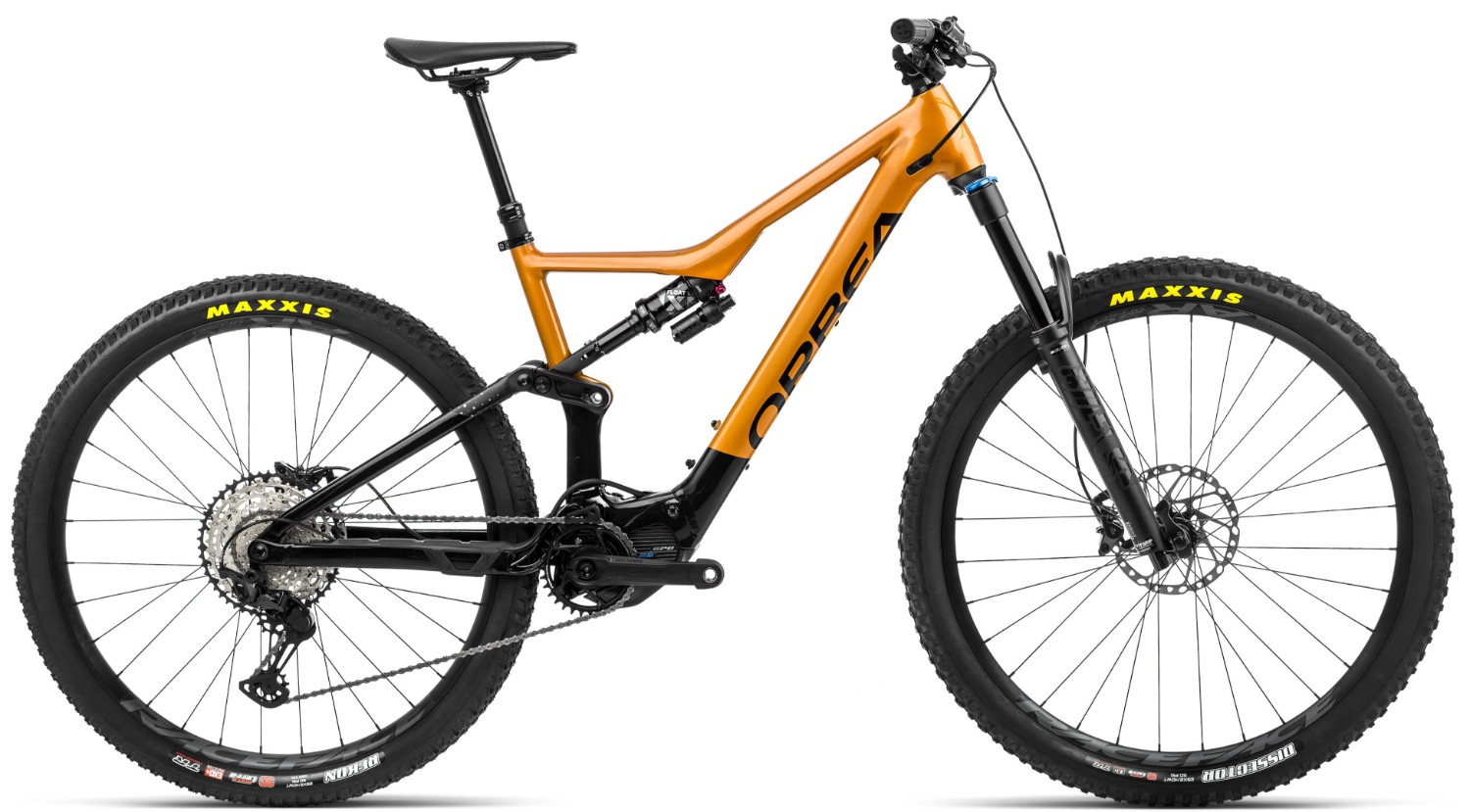

Orbea Rise H15 2022 - Electric Mountain Bike

Same RS experience but in aluminium

Orbea acted on the motor firmware to offer the most natural and efficient assistance as possible, eliminating drag and power delay that’s typical of conventional ebikes. The motor was also optimized to provide maximum assistance between 75 and 95 strokes per minute, the cadence at which the human body pedals the most efficiently and where we normally pedal our standard mechanical bikes.

Key Features:

• Orbea Aluminium frame with fully integrated battery and internal cable routing
• Fox FLOAT X Performance Shock Controls the 140mm of rear wheel travel
• Fox 36 Float Performance Fork offers 150mm of plush suspension travel
• Shimano SLX/XT 12 speed drivetrain for slick shifting
• Race Face AR 30c 29” wheels for rapid rolling
• Sizes: S, M, L, XL
• Colours: Orange/Black, Anthracite/Black, Mouse Grey/Sky Blue
• The Orbea Rise Rise H15 is available with 0% APR finance

Drive Information:

• Motor: Shimano EP8 RS 60Nm
• Battery: 540Wh 21700 lithium ion cells
• Interface: Inline LEDs & on/off button
• Connectivity: Bluetooth & ANT+, Smartphone App

Orbea Rise Review

This means that the harder we pedal, Rise responds instantly with more power, with a feeling of natural assistance.

Weight is another key to Rise and something Orbea invested many hours in to optimize the details of the models: frame, integrated battery, cable routing and push buttons were taken into account. Motor optimization through the Rider Synergy also allows for trail components to be mounted, which saves weight and enables the bike to handle like a mechanical trail bike.

The lightest in the category, also in aluminium

Natural pedaling and handling are the two aspects that differentiate Rise the most. To keep these characteristics intact in the aluminum versions, Orbea’s engineering team scrutinized all the details and invested many hours in development.

The recently debuted aluminum version features a completely redesigned 540Wh battery, developed by Orbea, who rethought the distribution of the 21,700 cells, the housing arrangement, the wiring and the brackets to find a battery that is as optimized and lightweight as possible and with one of the highest energy densities on the market.

For the frame, Orbea selected the best materials and applied the most advanced manufacturing processes, just as it does for its highest-level carbon frames. Thanks to the double- and triple-butted, hydroformed tubes, the team optimized the thickness and shapes of the tubes and reinforced the most delicate areas. In other words, it saves weight where you don’t need material and adjusts the stiffness in the important areas.

In effort to give the highest level of attention to the new aluminum version, Orbea applied its polishing process to the frame. This technique smooths the welds at the tube joints, matching the aesthetics of a carbon frame. In fact, it’s difficult to discern the differences between an aluminum frame and carbon frame. This process also increases aluminum’s fatigue resistance in critical areas.

All this design and development work has resulted in an aluminum frame weight of merely 3.4kg — just 100g more than an Occam aluminum frame and 2kg lighter than most aluminum ebikes on the market. The total weight of the new aluminum Rise is an impressive 19kg for the top-of-the-range model and 20kg for the entry-level model.

All Tredz bikes are:

• Fully built & ready to ride
• Fully checked & tested by Cytech qualified mechanics
• Available with 0% APR finance on any basket over £99
• UK price match guarantee
• 365 day no hassle returns
• Free delivery in the UK Mainland on a date that suits you

In the box with every Tredz bike is:

• Free Tredz 9 key trail tool
• Free Tredz pedal spanner
• Free basic pedals
• Tredz drawstring kit bag
• 16 point quality control check sheet
• Basic bike setup instructions
• Free Cycle Plan insurance voucher

Occasionally, without notice, manufacturers change product design and/or specifications.
