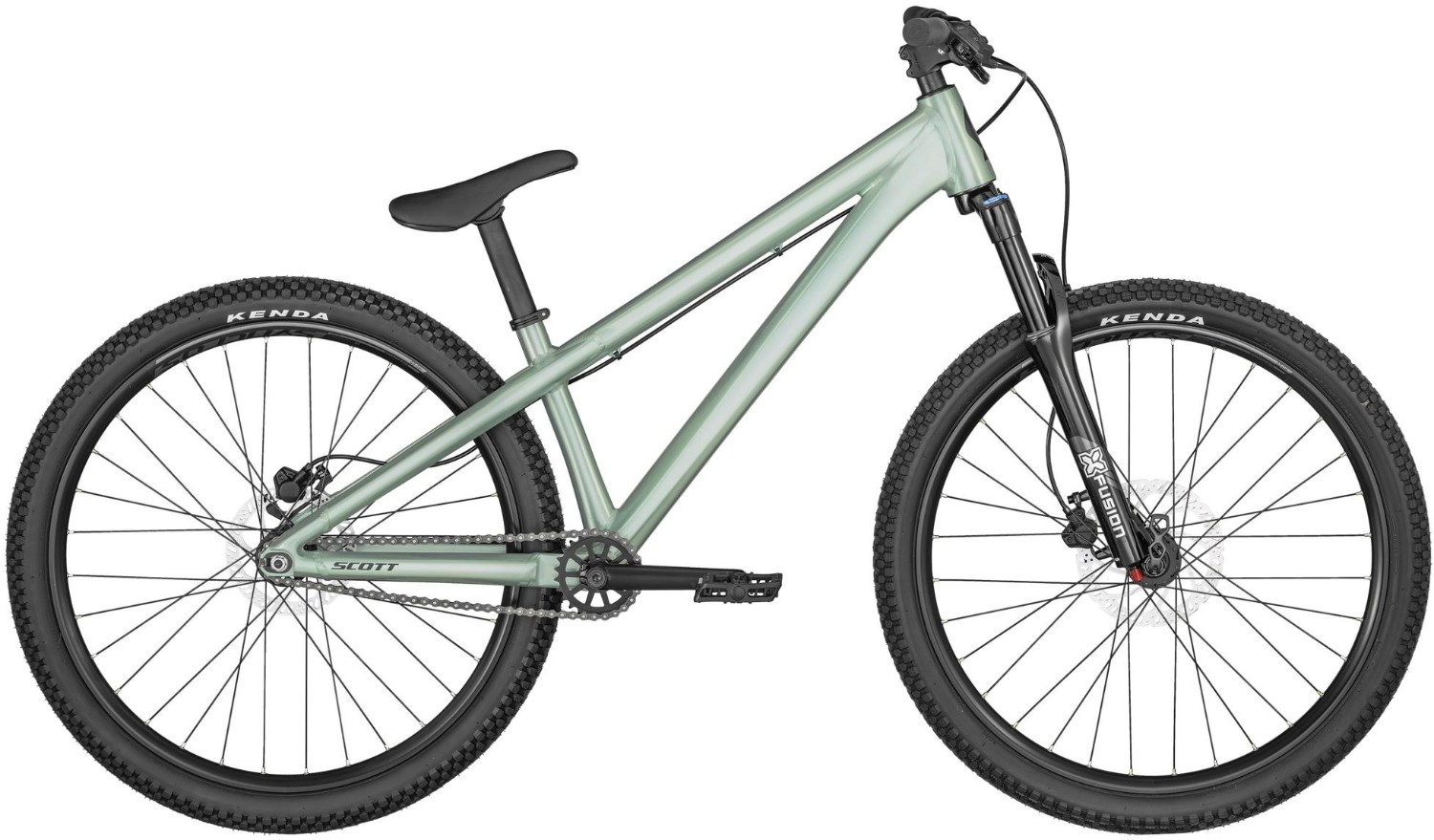

Scott Voltage YZ 0.1 2024 - Jump Bike
Please note that bike specifications are subject to change without prior notice
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Voltage YZ DJ 6061 Alloy, Hydroformed tubing, Disc Dropout / horizontal for 135x10mm single speed |
Fork | X-Fusion Slant DJ, 100mm travel / Air / Lo Comp / Rebound |
Headset | Syncros OE Press Fit E2 Tapered 1.5"-1 1/8", OD 50/62mm / ID 44/56mm |
Stem | Syncros XM1.5, 31.8mm / 40mm / 0° |
Bars | Syncros Hixon 2.0 Rise, 31.8mm / 800mm / 20mm Rise |
Front Brake | Tektro HDM275 Hydr. Disc. F/R: Tektro / 6 Bolt / 160mm |
Rear Brake | Tektro HDM275 Hydr. Disc. F/R: Tektro / 6 Bolt / 160mm |
Brake Lever | Alloy 2-Finger |
Speed | 1 |
Rims | Syncros MD25 Disc / 32H |
Spokes | Stainless 14G / black / 2.0mm |
Front Tyre | Kenda K905 K-RAD, 30TPI / wire / 26x2.3" |
Rear Tyre | Kenda K905 K-RAD, 30TPI / wire / 26x2.3" |
Seat Post | Syncros DJ1.5 / Pivotal / 31.6mm |
Saddle | Syncros DJ1.5 / Pivotal |
Chainset | SCOTT Cr-Mo 3-piece cranks, 170mm / 25T Alloy BMX sprocket |
Bottom Bracket | Jien-Yuan BB92 / 19mm Axle |
Chain | KMC Z510 |
Cassette | Sprocket / 12 T |
Pedals | Wellgo B107.N flat |
Scott Voltage YZ Geometry
M | ||
HEAD TUBE ANGLE | 68.5 ° | |
HEAD TUBE LENGTH | 120.0 MM | 4.7 IN |
TOP TUBE HORIZONTAL | 600.0 MM | 23.6 IN |
STANDOVER HEIGHT | 702.0 MM | 27.6 IN |
BB OFFSET | -15.0 MM | -0.6 IN |
BB HEIGHT | 324.0 MM | 12.8 IN |
WHEEL BASE | 1,047.0 MM | 41.2 IN |
BB CENTER TO TOPTUBE CENTER | 261.1MM | 10.3 IN |
BB CENTER TO TOP OF SEATTUBE | 315.0 MM | 12.4 IN |
SEAT ANGLE | 71.0 ° | |
CHAINSTAY | 380.0 MM | 15.0 IN |
REACH | 403.4 MM | 15.9 IN |
STACK | 507.9 MM | 22.5 IN |
STEM LENGTH | 40.0 MM | 1.6 IN |
